Place of Origin:
China
Brand Name:
Hengyang
Certification:
ISO9001
Model Number:
HC-401

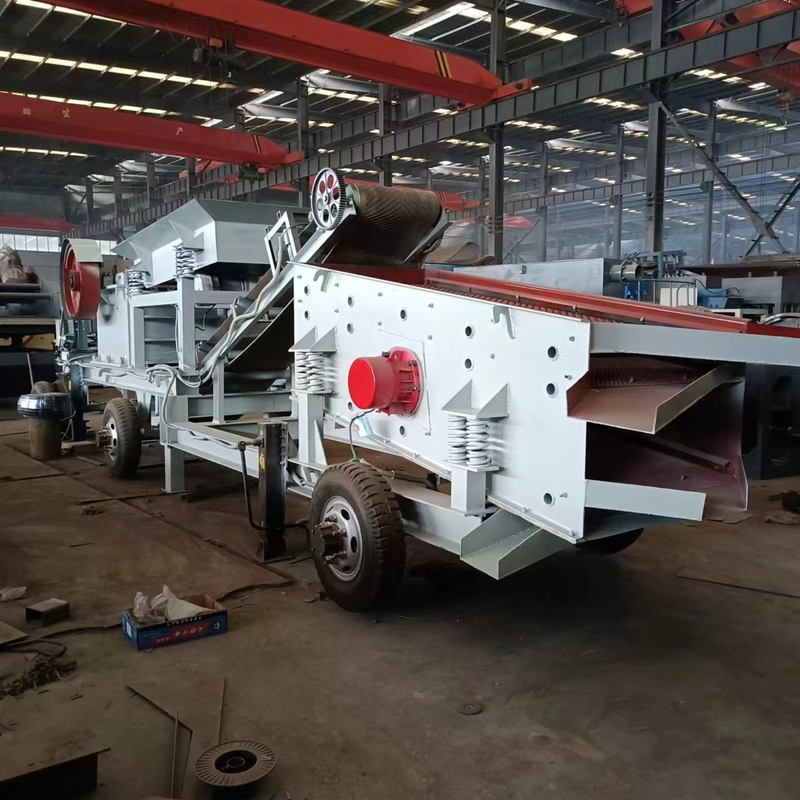

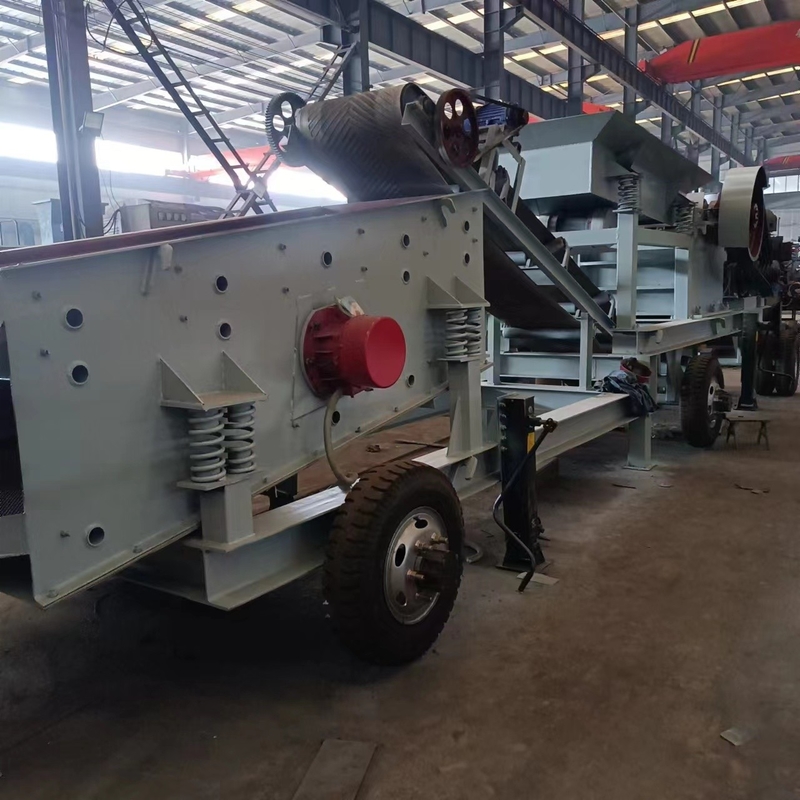

Our mobile crusher can be used in one stage of crushing for separate operation or complete joint operations with other crushing and screening portable plants to achieve two-stage, three-stage or four-stage crushing, so that various crusher screening requirements could be satisfied.
The mobile crushers feature flexible configurations, with more attention paid to complete functions, stable performance and strong practicability. The reasonable matching among all systems of the equipment has greatly improved the equipment productivity, and compared with the fixed production lines of the same equipment conditions, this products feature more reliable performance, more powerful functions richer function portfolios, significantly enhanced complete capacity and wider applications.
This machine adopt a modular design concept that the same frame can be adapted to a variety of types, so that different host machine units of the same type could be exchangeable. The on-site needs can be satisfied only by changing the main machine equipment according to users' diversified needs.
Technical Details
| Model | Opening size(mm) | Max feeding size(mm) | Output adjust range(mm) | Production capacity(t/h) |
Power
(kw)
|
| PE250*400 | 250*400 | 200 | 20-50 | 5-20 | 15 |
| PE400*600 | 400*600 | 350 | 40-100 | 15-60 | 30-37 |
| PE500*700 | 500*700 | 425 | 50-100 | 40-110 | 45-55 |
| PE600*900 | 600*900 | 480 | 65-160 | 90-180 | 55-75 |
| PE750*1060 | 750*1060 | 630 | 80-140 | 110-320 | 90-110 |
| PE900*1200 | 900*1200 | 750 | 95-165 | 220-450 | 110-132 |
| PE1200*1500 | 1200*1500 | 1020 | 150-300 | 400-800 |
160-200 |
