Place of Origin:
China
Brand Name:
Hengyang
Certification:
ISO9001
Model Number:
HC-290

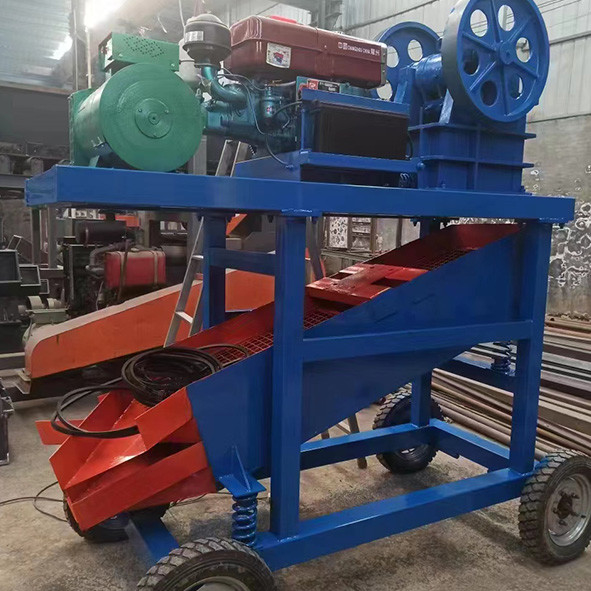

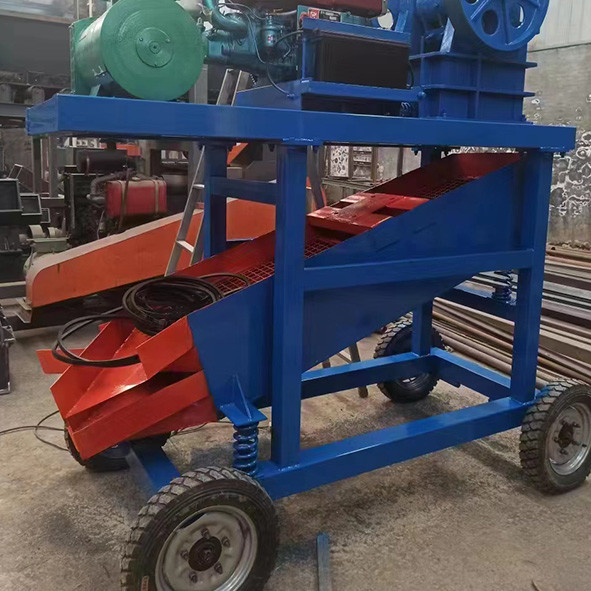

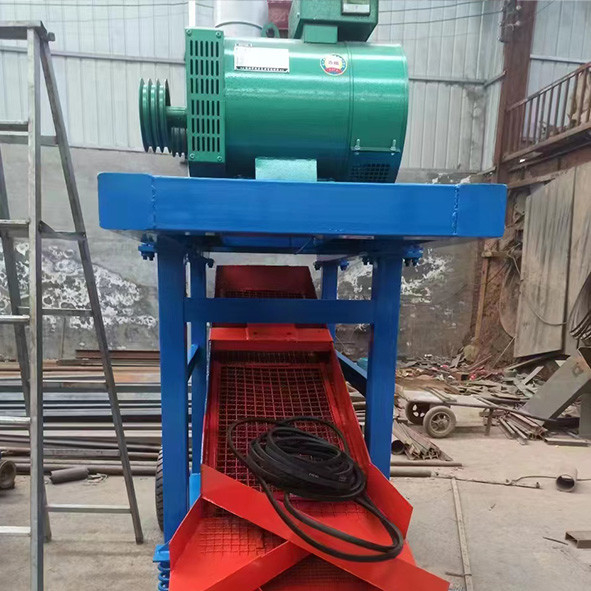

When the crushing and screening integrated machine starts to work, various feeding, crushing, and screening equipment are coordinated. The stone first enters the crushing part for crushing processing, and after crushing, it is screened. Materials with qualified particle size can be directly discharged for use. Part is returned to the machine to continue processing again.
Suitable Material
Granite, marble,basalt, limestone, quartz, pebble, iron ore, copper ore, etc.
| Model | Feeding Size (mm) | Discharging Size (mm) | Capacity (t/h) | Power for Diesel Engine(kw) | Weight (kg) |
| PEC1525 | <125 | 10-40 | 1-3 | 5.7 | 920 |
| PEC2540 | <200 | 20-50 | 5-20 | 15.5 | 3150 |
| PCC3040 | <70 | ≤12 | ≤8 | 11.5 | 960 |
| PCC4060 | <100 | ≤15 | ≤15 | 23 | 1650 |
