Place of Origin:
China
Brand Name:
Hengyang
Certification:
ISO9001
Model Number:
HC-288

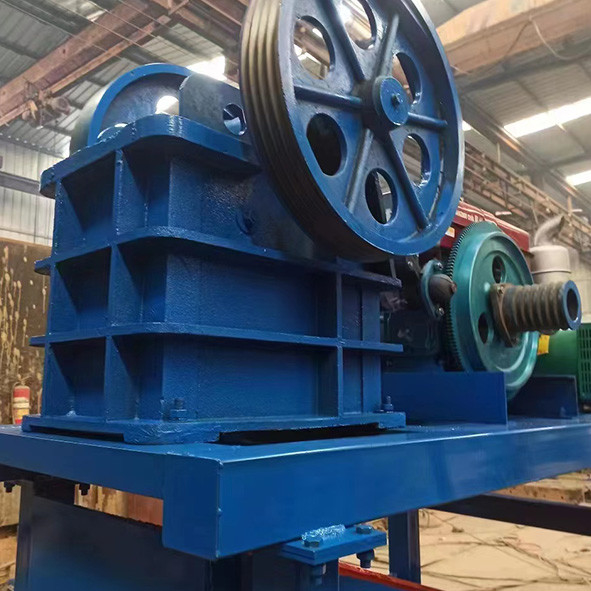

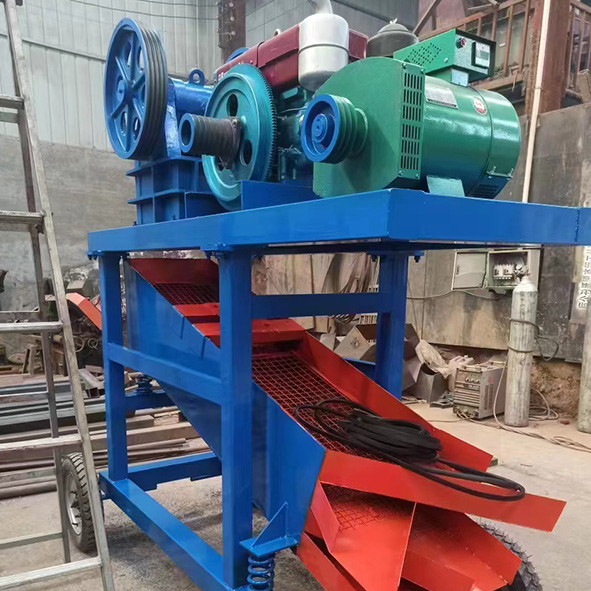

Diesel Engine jaw crusher is powered by diesel engine, then belt pully will be driven, transmit to fixed and movable jaw, when the angle between fixed and movable jaw become smaller, stones will be crushed.
Performance characteristics
Simplestructure, convenient in use and maintenance. Stable performance, low operationcost.
Crushingcavity depth and no blind spot, increasing the feeding ability and capacity.
Highcrushing ratio, uniform product size.
Gasket typedischarging mouth adjusting device, reliable, convenient and the adjustingrange is big, increase the flexibility of the equipment,can meet the requirements of different users.
Lubricationsystem safe and reliable, easy to parts replacement, small maintenance workload.
Energysaving: stand-alone energy saving 15% ~ 30%, the system energy saving more thandouble.
Low noise,little dust.
Suitable Material
Granite, marble,basalt, limestone, quartz, pebble, iron ore, copper ore, etc.
| Model | Feeding Size (mm) | Discharging Size (mm) | Capacity (t/h) | Power for Diesel Engine(kw) | Weight (kg) |
| PEC1525 | <125 | 10-40 | 1-3 | 5.7 | 920 |
| PEC2540 | <200 | 20-50 | 5-20 | 15.5 | 3150 |
| PCC3040 | <70 | ≤12 | ≤8 | 11.5 | 960 |
| PCC4060 | <100 | ≤15 | ≤15 | 23 | 1650 |
