Place of Origin:
China
Brand Name:
Hengyang
Certification:
ISO9001
Model Number:
HC-248
HMC type Industrial Pulse Jet Bag Filter (Bag dust filter air jet dust collector) has much simpler structure and much smaller footprint compared with other pulse cleaning filtration systems. Very short cleaning time does not affect filtration work.
It is one of the most commonly used dust collectors. Widely used for dust collection during crushing, packing, lifting, conveying and other process producing powders.Its application includes cement plant,powder washing plant, composite floor plant etc.
Industrial Pulse Jet Bag Filter Specification
|
Type
|
Air Volume (m3/h)
|
Filter Bag Qty(pc)
|
Filter Bag Size (mm)
|
Size
(mm)
|
Weight (kg)
|
Compressed Air Required
(m3/min)
|
|
HMC-60
|
3000-5000
|
60
|
130 X 2500
|
1830 X 1150 X 6120
|
2100
|
0.50
|
|
HMC-70
|
3500 -5900
|
70
|
130 X 2500
|
1830 X 1320 X 6120
|
2400
|
0.50
|
|
HMC-80
|
H4000 - 6800
|
80
|
130 X 2500
|
1830 X 1491 X 6120
|
2900
|
0.50
|
|
HMC-90
|
4600 - 7500
|
90
|
130 X 2500
|
1830 X 1660 X 6120
|
3500
|
0.50
|
|
HMC-100
|
5100 - 8400
|
100
|
130 X 2500
|
1830 X 1830 X 6120
|
4000
|
0.50
|
|
HMC-110
|
5600 - 9200
|
110
|
130 X 2500
|
1830 X 2000 X 6120
|
4600
|
0.50
|
|
HMC-120
|
6100 - 10000
|
120
|
130 X 2500
|
1830 X 2170 X 6120
|
5300
|
0.50
|
|
HMC-140
|
7100 - 11000
|
140
|
130 X 2500
|
1830 X 2510 X 6120
|
6200
|
0.80
|
|
HMC-160
|
8100 - 13000
|
160
|
130 X 2500
|
1830 X 2850 X 6120
|
7000
|
0.80
|
|
HMC-180
|
9200 - 15000
|
180
|
130 X 2500
|
1830 X 3190 X 6120
|
8100
|
0.80
|
|
HMC-200
|
10000 - 17000
|
200
|
130 X 2500
|
1830 X 3530 X 6120
|
8900
|
0.80
|
|
HMC-240
|
12000 - 20000
|
240
|
130 X 2500
|
1830 X 4210 X 6120
|
9600
|
0.80
|
|
HMC-280
|
14000 - 23000
|
280
|
130 X 2500
|
1830 X 4890 X 6476
|
10300
|
1.00
|
|
HMC-320
|
16000 - 26000
|
320
|
130 X 2500
|
1830 X 5570 X 6476
|
11300
|
1.00
|
|
HMC-360
|
18000 - 30000
|
360
|
130 X 2500
|
1830 X 6250 X 6476
|
12400
|
1.00
|
|
HMC-400
|
20000 - 23600
|
400
|
130 X 2500
|
1830 X 6930 X 6476
|
13200
|
1.00
|
|
HMC-440
|
22000 - 37000
|
440
|
130 X 2500
|
1830 X 7610 X 6476
|
14200
|
1.50
|
|
HMC-480
|
24000 - 40000
|
480
|
130 X 2500
|
1830 X 8290 X 6476
|
15300
|
1.50
|
|
HMC-520
|
26000 - 43000
|
520
|
130 X 2500
|
1830 X 8970 X 6476
|
16500
|
1.50
|
|
HMC-560
|
28000 - 47000
|
560
|
130 X 2500
|
1830 X 9650 X 6476
|
17800
|
1.50
|
|
HMC-600
|
30000 - 50000
|
600
|
130 X 2500
|
1830 X 10330 X 6476
|
19000
|
2.00
|
|
HMC-640
|
32000 - 53760
|
640
|
130 X 2500
|
1830 X 11010 X 6476
|
20650
|
2.00
|

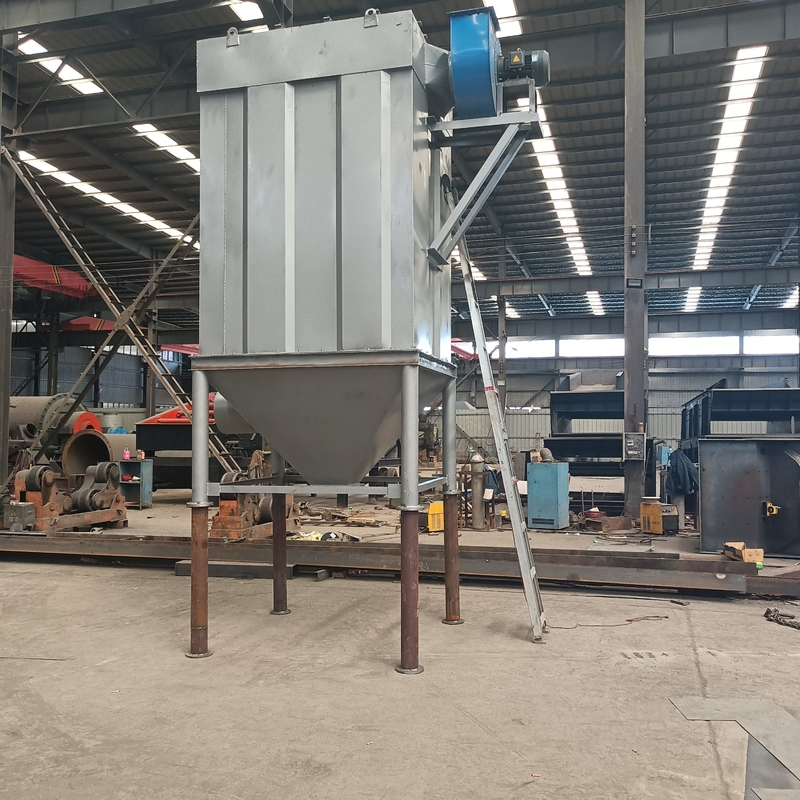

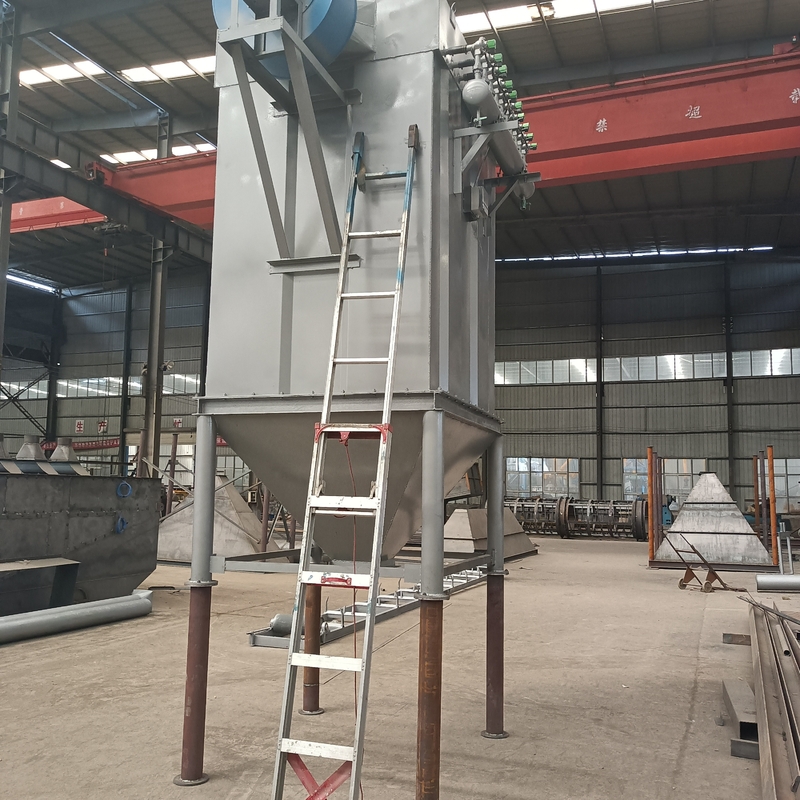

Bag type woodworking flour dust collector can be used in the working conditions as shown in the picture.
