Place of Origin:
China
Brand Name:
Hengyang
Certification:
ISO9001
Model Number:
F-0020
Introduction:

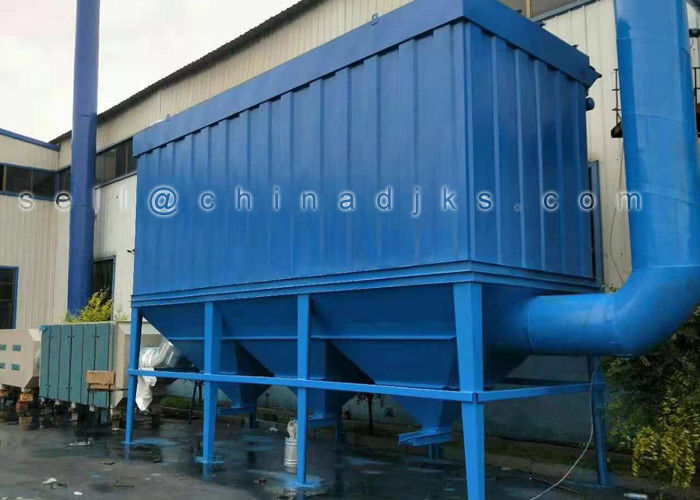

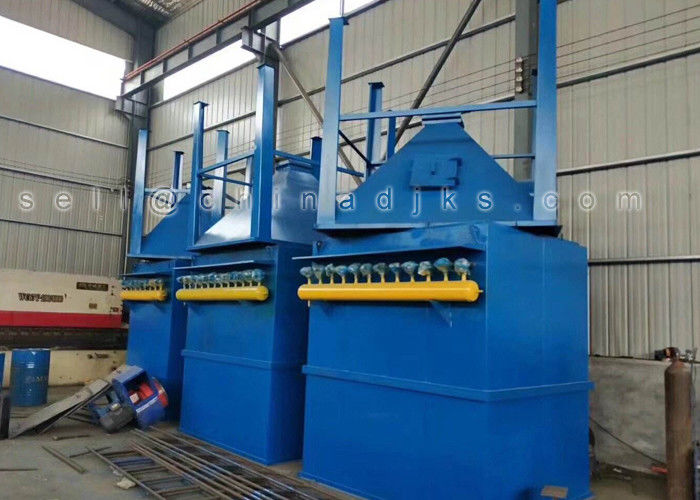

Pusle Jet Dust Collector is a kind of high efficient purification equipment which adopts advanced ash removal technology, and it main characteristics are large gas handling capacity, good purification effect, reliable operation, simple structure, small amount of maintenance and so on. It is especially suitable for the collection of the non-fibrous dust that is small and dry.
Application of Bag Filter:
Electric power, metallurgy, chemical and building materials industry
Advantages of Bag Filter:
1. High dust removal efficiency, generally more than 99%, can be used in occasions with high purification requirements;
2. Strong adaptability, can collect various types of dust, and does not affect the dust removal efficiency due to the nature of the dust, the range of adapted smoke concentration is wide, and when the inlet concentration or flue gas volume changes, it will not affect the purification efficiency ;
3. Various specifications and flexible use. The treatment air volume can be from several cubic meters to several million cubic meters per hour;
4. It is easy to recycle materials, and there is no secondary pollution such as pollution and waste water.
Technical Details:
| Model | Air volume(m3/h) | Filter speed (m/min) |
Filter area(m2) | Filter bag number (Piece) |
Resistance (Pa) |
Dust concentration (g/m3) |
Thermal insulation layer area m2 |
Weight (kg) |
| 32-3 | 6900 | 1.2-2.0 | 93 | 96 | 1470-1770 | <1000 | 26.5 | 2880 |
| 32-4 | 8930 | 124 | 128 | 34 | 4080 | |||
| 32-5 | 11160 | 155 | 160 | 41 | 5280 | |||
| 32-6 | 13390 | 186 | 192 | 48.5 | 6480 | |||
| 64-4 | 17800 | 248 | 256 | 70 | 7280 | |||
| 64-5 | 22300 | 310 | 320 | 94 | 9960 | |||
| 64-6 | 26700 | 372 | 384 | 118 | 11640 | |||
| 64-7 | 31200 | 434 | 448 | 142 | 13320 | |||
| 64-8 | 35700 | 496 | 512 | 166 | 15000 |
