Place of Origin:
China
Brand Name:
Hengyang
Certification:
ISO9001
Model Number:
HC-0130
Widely used in construction waste, mine, mining, sand and cement companies.
1. The vibration feeder is fitted with a two-deck grizzly section for an optimum pre-scaling, thus maximizing the total performance and reducing wear.
2. The material, which has already the required grain size, is conveyed via a bypass past the impact crusher directly to the discharge chute. Thus the efficiency of the complete plant is increased.
3. The HY-DJ crushing plant is fitted with the field-tested impact crusher. The hydraulic controlled impact crusher guarantees a constant product quality and a high availability.
4. The active hydraulic permit a trouble free material flow via the movable inlet plate of the impact crusher.
5. The diesel-direct drive in combination with a CATERPILLAR motor allows for a maximum performance at a small amount of space.
6. The processing plant is easy to operate with the remote control.
7. Magnetic separator, lateral discharge belt and water spray system are optionally available as approved Sino-German modules.
8. For the optimization of performance and availability the mobile processing plant is operated by an intelligent control in the background.
All in all, the HY-DJ Series mobile impact crushing plants convince by a flexible applicability, it processes limestone, reinforced concrete, bricks and asphalt with the directly driven impact crusher into high-quality final grain sizes. An excellent mobility, a high performance at a comparably low weight and an efficient drive permit a remarkable economic crushing.

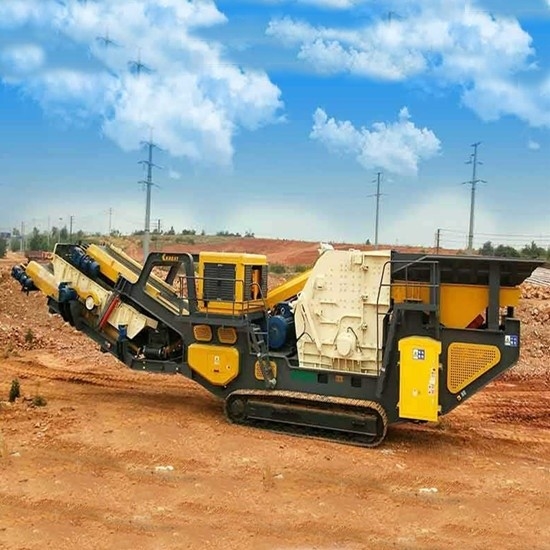

Crawler or Track-mounted Mobile Impact Crusher Crushing Plant Technical Details
| Mobile Impact Crushing Plants | HY-DJ 10 | HY-DJ 14 |
| Impact crusher | PF1010 | PF1414 |
| Feed opening size(mm×mm) | 810×1030 | 1025×1360 |
| Capacity(t/h) | up to 250 | up to 480 |
| Driving Unit | ||
| Performance (kw) | 242 | 470 |
| Feed hopper | ||
| Hopper volume(m3) | 4.8 | 8.5 |
| Main conveyor belt | ||
| Discharge height(mm) | 3100 | 3500 |
| Side conveyor belt (option) | ||
| Discharge Height(mm) | 1900 | 3500 |
| Dimensions and weight | ||
| Working dimensions | ||
| -length (mm) | 14600 | 18000 |
| -width (mm) | 4500 | 6000 |
| -height (mm) | 4200 | 4800 |
| Transport dimensions | ||
| -length (mm) | 13300 | 17000 |
| -width (mm) | 3350 | 3730 |
| -height (mm) | 3776 | 4000 |
| Approx weight (t) | 43 | 70 |
