Place of Origin:
China
Brand Name:
Hengyang
Certification:
ISO9001
Model Number:
HC-125
Crawler or Wheel-mounted Mobile Jaw Crusher Plant
Crawler or Wheel-mounted Mobile Jaw Crusher Plant Introduction

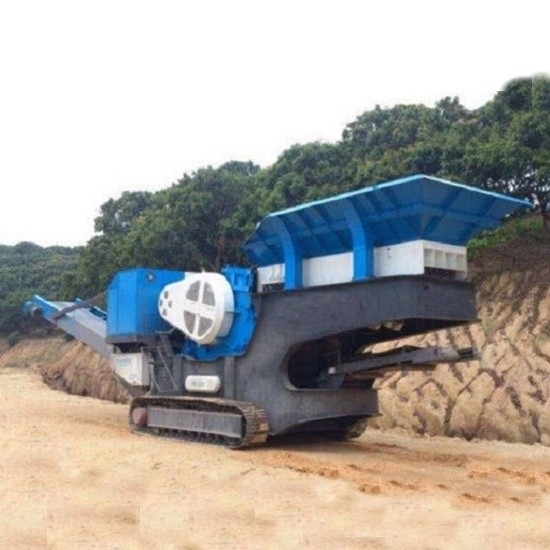

The crawler type mobile jaw crusher is compact and flexible, and can meet the crushing requirements of inter-city construction waste. In addition, the crawler type mobile jaw crushing station is equipped with effective dust removal system, helpful for diesel engine noise emission, and the system can do remote control to the hydraulic pressure to remove obstacles to mobile crushing station, and the pre-screening device of the crawler type mobile jaw crushing plant can also greatly improve the crushing efficiency.
Crawler or Wheel-mounted Mobile Jaw Crusher Plant Applications
1. The crawler type mobile jaw crusher is widely used in mining, coal and cement industry for mining and crushing of hard materials;
2. The crawler-type mobile jaw crusher is helpful for recycling of construction waste, earthwork , urban infrastructure, roads or construction sites and other venues operations;
3. The crawler type mobile jaw crusher can climb, to meet requirements in mine, hydropower station, coal and other engineering industries.
4. The crawler-type mobile jaw crusher uses a two -layer structure to facilitate the screening of fine materials.
Crawler or Wheel-mounted Mobile Jaw Crusher Plant Factory Price
The 100% ex-factory price is our commitment, and our company can guarantee the quality of these machines. Choosing Hengyang Industry will not disappoint you. We have professional mobile crusher sales staff for you. You can send us an email to sell@chinadjks.com.
Crawler or Wheel-mounted Mobile Jaw Crusher Plant Technical Details
| Model | HY96 | HY106 | HY120 | |
| Dimensions of Transmission Devices | Length (mm) | 14200 | 14900 | 15200 |
| Width (mm) | 2900 | 3000 | 3200 | |
| Height (mm) | 3470 | 3600 | 3700 | |
| Weight (t) | 38 | 50 | 65 | |
| Feeder | Hopper Volume (m3) | 5 | 5 | 6 |
| Loading Height (mm) | 3900 | 4100 | 4300 | |
| Model | GZDT3895 | GZDT1145 | GZDT1245 | |
| Crusher | Model | CJ96 | CJ106 | CJ120 |
| Inlet Dimensions (mm) | 930*580 | 1060*700 | 1200*870 | |
| Max. Feeding Size (mm) | 480 | 560 | 700 | |
| Main Belt Conveyor | Dimensions (W*L) (mm) | 800*9000 | 1000*10000 | 1200*12000 |
| Dumping Height (mm) | 3100 | 3200 | 3400 | |
| Power of Diesel Engine (kw) | 96 | 106 | 132 | |
| Power of The Main Machine (kw) | 112.9 | 141.4 | 196.2 | |
