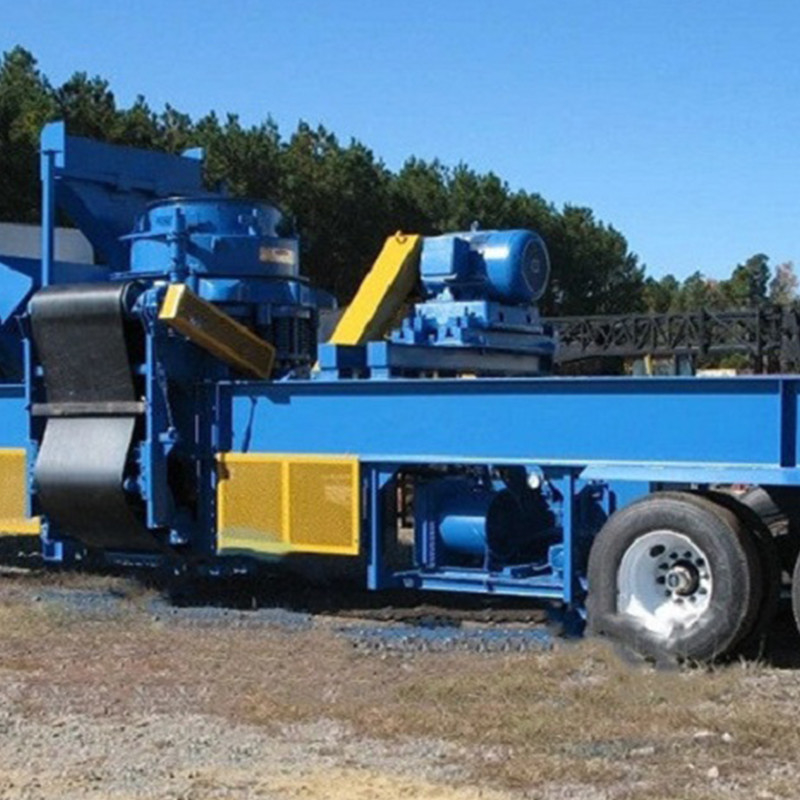

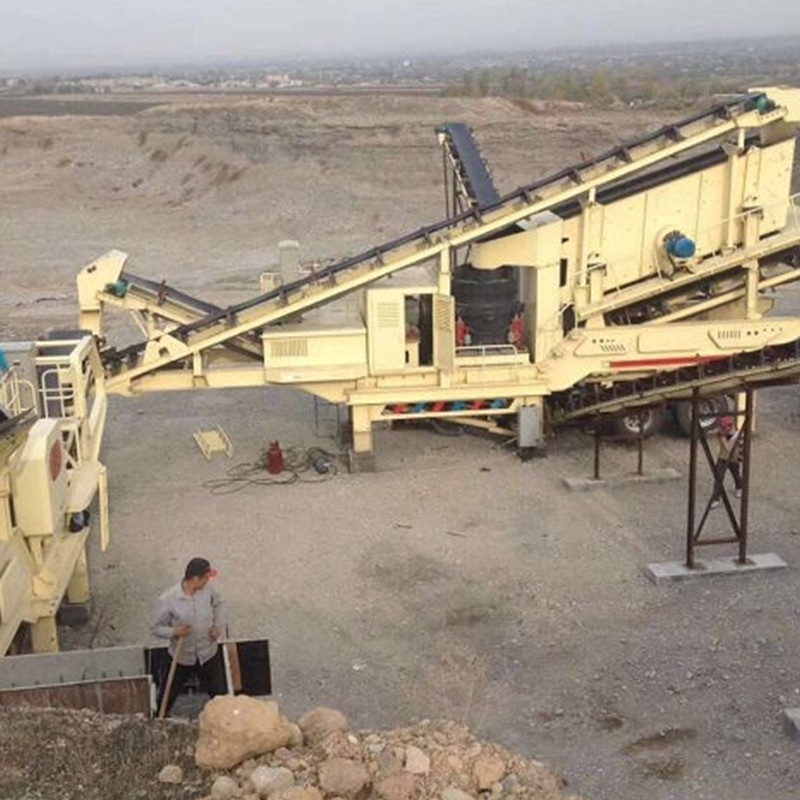

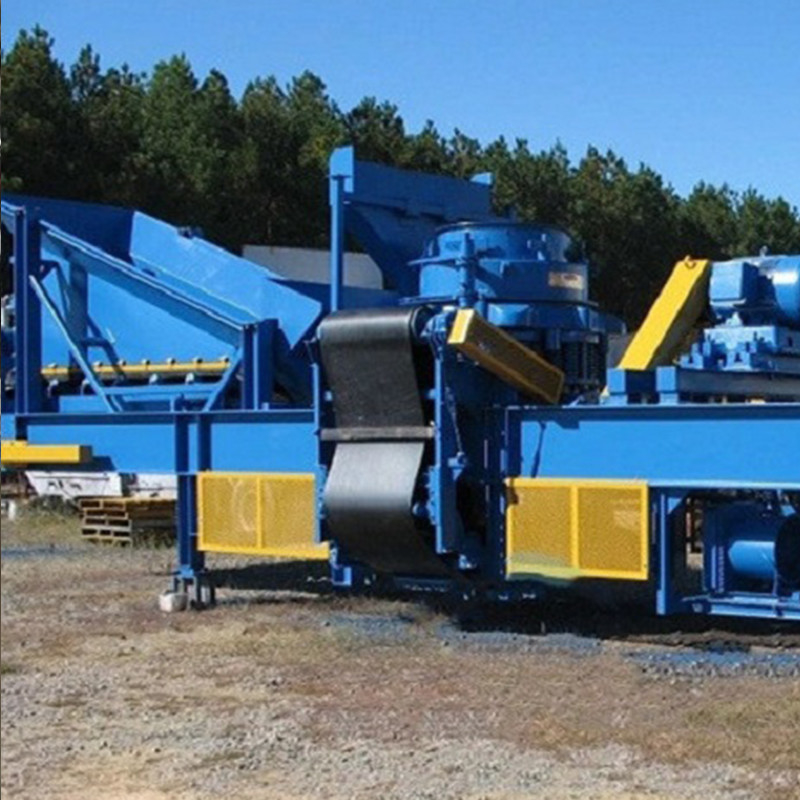

Wheel-mounted Mobile Cone Crusher Plant for Hard-Stone Crushing Production Line
Wheel-mounted Mobile Cone Crusher Plant Introduction
Mobile cone crushing and screening plant is also known as wheel-mounted mobile cone crusher. Cone crusher installed on the wheel mobile crusher is with full hydraulic closed side adjustment device, and can produce aggregates with size of 10-45mm. Rubber-tyred mobile cone crusher is widely used in mining, quarrying, concrete mixing stations, roads and buildings, highways, railways, subways, water conservancy, etc.
Wheel-mounted Mobile Cone Crusher Plant Advantages
1. Good mobility;
2. Compact structure, easy to use;
3. Cost savings, low cost;
4. Higher suitability;
5. Stable performance, easy maintenance;
6. Flexible configuration.
Wheel-mounted Mobile Cone Crusher Plant Technical Details
| Model | HY900PY | HY1200PY | HY1750PY | HY2200PY | |
| Transportation Dimensions | Length (mm) | 10000 | 11200 | 11800 | 12300 |
| Width (mm) | 2743 | 2743 | 2840 | 2900 | |
| Height (mm) | 4200 | 4200 | 4200 | 4200 | |
| Weight (kg) | 28400 | 30500 | 22400 | 48700 | |
| Axle (kg) | 15500 | 16300 | 14300 | 31100 | |
| Traction Pin Weight (kg) | 12900 | 14200 | 8100 | 17600 | |
| Cone Crusher Model | PY900 | PY1200 | PY1750 | PY2200 | |
| Feeding Port (mm) | 50-110 | 50-145 | 85-215 | 100-300 | |
| Vibrating Screen Model | 3YK1235 | 3YK1545 | 4YK1860 | 4YK2160 | |
| Belt Conveyor Model | B650×8 | B800×8 | B1000×8 | B1200×8 | |
