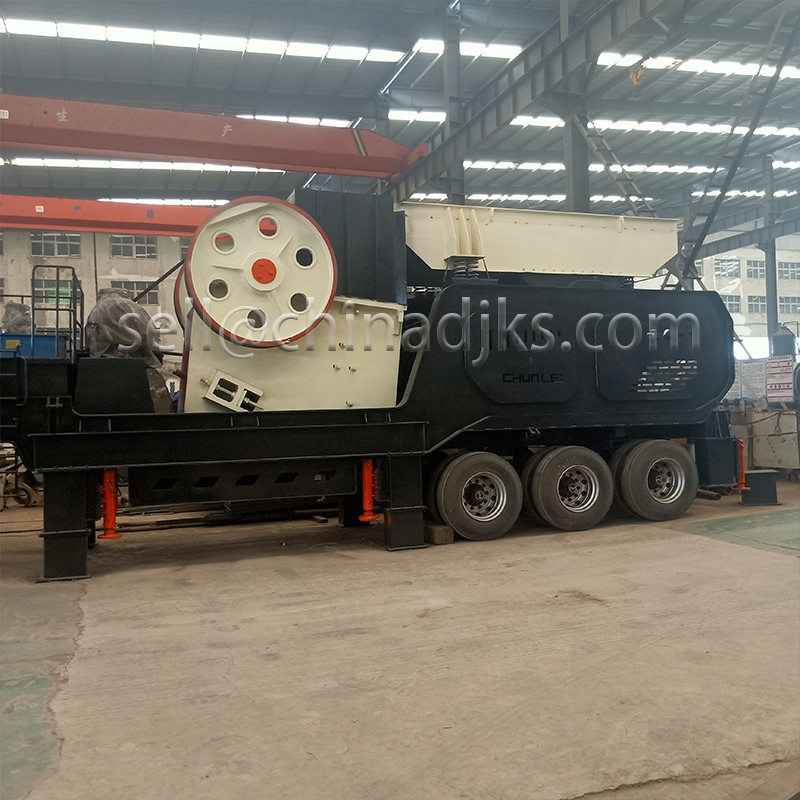

Mobile Jaw Crusher Station for Aggregate and Quarry Crushing Line

200TPH Stone Crushing Plant 750*1060 Mobile Jaw Crusher Station

mobile crusher station is a full hydraulic drive tracked vehicle chassis with mobile crushing screening equipment, Baichy independent research and development. The machine has the advantages of compact structure, reliable performance, beautiful appearance, high automation level. With full hydraulic drive tracked vehicle, optimization with high performance crusher, vibrating screen, electric control cabinet, generators and other equipment, form a complete crushing system. It's widely applicable to the road construction, city building, metallurgy, energy and other departments, for crushing, screening and other operations.

Mobile Jaw Crusher Station Application:

The mobile crushing plant includes vibrating feeder, stone crusher, vibrating screen, belt conveyor, magnetic separator etc. When gravel stone is fed to vibrating feeder by the loader, they are crushed by heavy hammer crusher. The crusher materials will go to vibrating screen by foldable belt conveyor. After screen, the unqualified stone will go to crush again, the other qualified aggregates will be piled for further processing, such as removing iron, separating wood chips, cleaning etc.

750*1060 Mobile Jaw Crusher Station Technical Details:

Model HY75106

Length:12500mm

Width: 2900mm

Height:4450mm

Weight: 125t

Axle Weight: 40.5t

King pin weight: 90/19.5kg

Jaw Crusher

Model : PE750X1060

Feed opening:750*1060mm

Maximum feed size: 630mm

Setting range(c.s.s): 80-180mm

Capacity:72-150m3/h

Feeder

Model: ZSW490X110

Feed hopper volume:10m3

Hopper width:3000mm

Belt conveyor

Model B1000X7.2

Side belt (optional)

Model B500X2.7

Separators

Model RCYD-10

Frame axes

Number of axes 3
