Place of Origin:
China
Brand Name:
Hengyang
Certification:
ISO9001
Model Number:
HYL-035

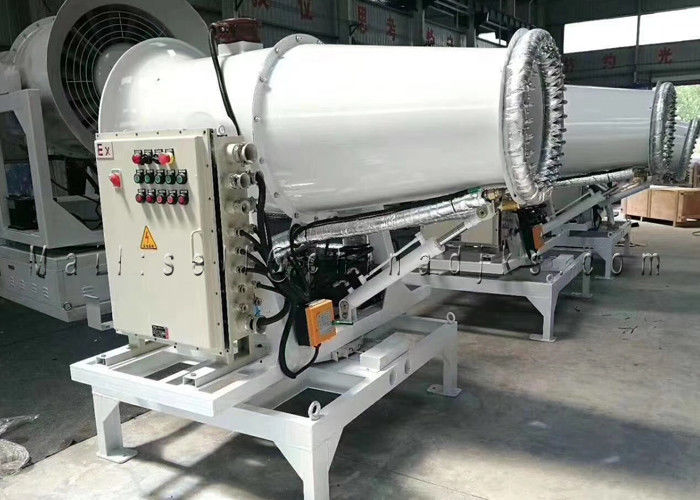

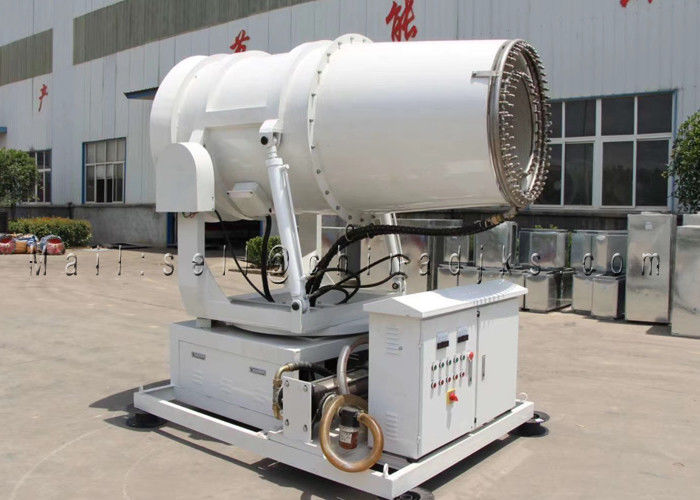

Mobile Cannon Sprayer for Mining and Waste Recycling Plant
Hengyang cannon sprayer can be used for urban demolition, mining areas, waste sorting plants, stone crushing plant, urban air pollution, coal industry, construction material production plant, etc.
| Mode |
HYL-30 Manual |
HYL-30 Auto |
HYL-30 full-automatic |
HYL-30 Vehicle full-automatic |
| Total power(kw) | 4.4 | 5.6 | 4.8 | 4.8 |
| Liquid pump type and power |
Plunger pump 2.2 |
Plunger pump 3 |
Plunger pump 2.2 |
Plunger pump 2.2 |
| Maximum spray range | 25-30 m | 35 m | 30 m | 30m |
| Control mode | Manual | Remote control | Remote control | Remote control |
| Control distance | ≤100 m | ≤100 m | ≤20 m | ≤100 m |
| Machine weight | 300 | 300 | 300 | 350 |
| Fan type and power | Fluidic 2.2 kw | |||
| Hydraulic pump pressure |
2.0 ~3.0 Mpa
|
|||
| Horizontal rotation angle | ±160° | |||
| Pitch angle | -15~85° | |||
| Maximum coverage area | 1900m2 | |||
| Mist particle size | ≥20 μm | |||
| Spray flow | 1 m³/h | |||
| Nozzle materia | Stainess steel | |||
| Air volume | 400 m³/min | |||
| Air pressure | 650 pa | |||
| Protection level | IP55 | |||
| Using ambient temperature | -30~+50 ℃ | |||
| Nozzle number | 8 | |||
| Start mode | Add electric start | |||
| Power allocation | 8kw Gasoline generator or 380v electricity | |||

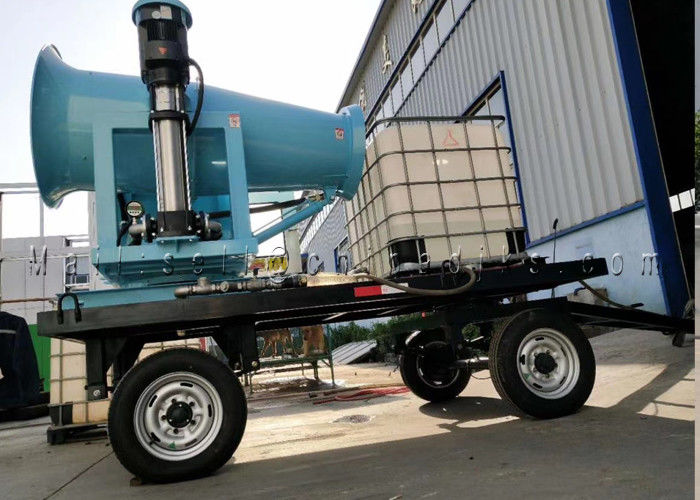

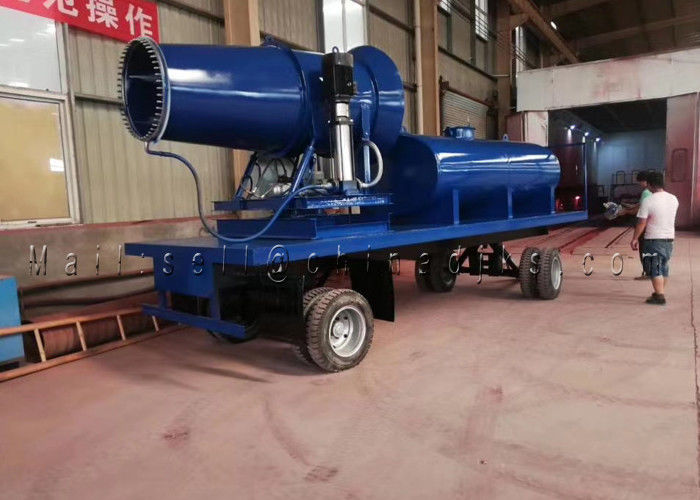

Mobile Trolley
Dimension: Customized
Water Tank Material: Cabon steel
Contact with us if need to use special materials.
