Place of Origin:
China
Brand Name:
Hengyang
Certification:
ISO9001
Model Number:
HYC028

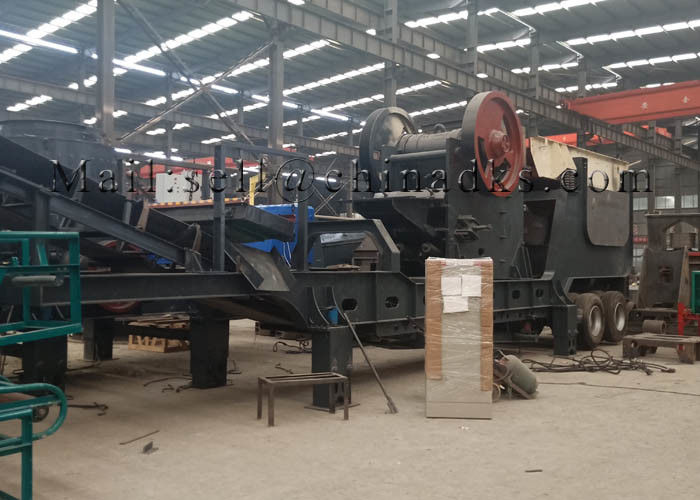

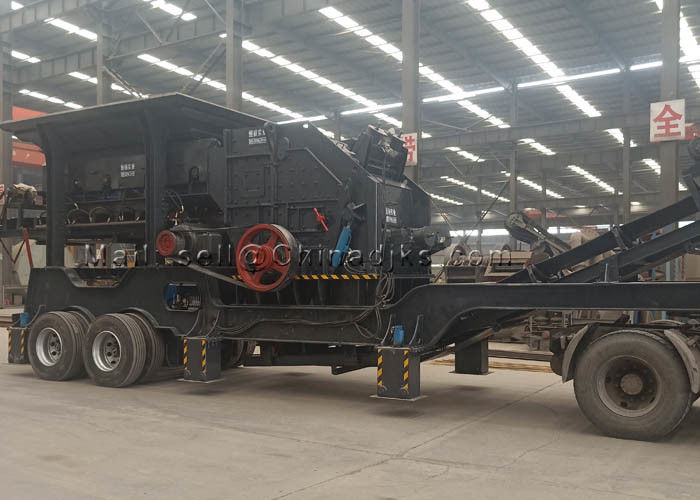

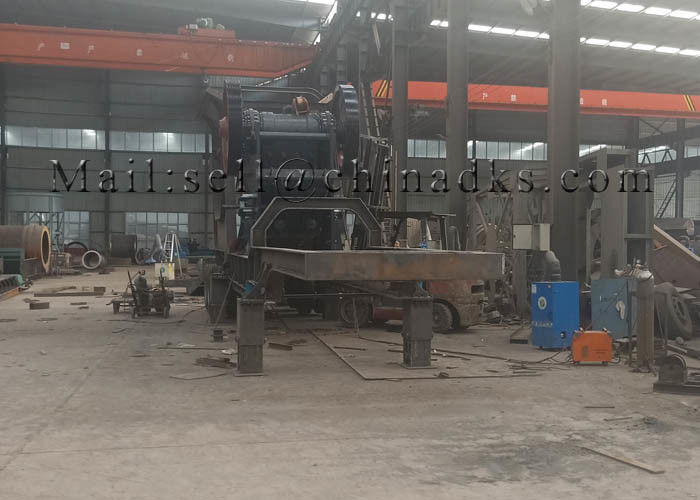

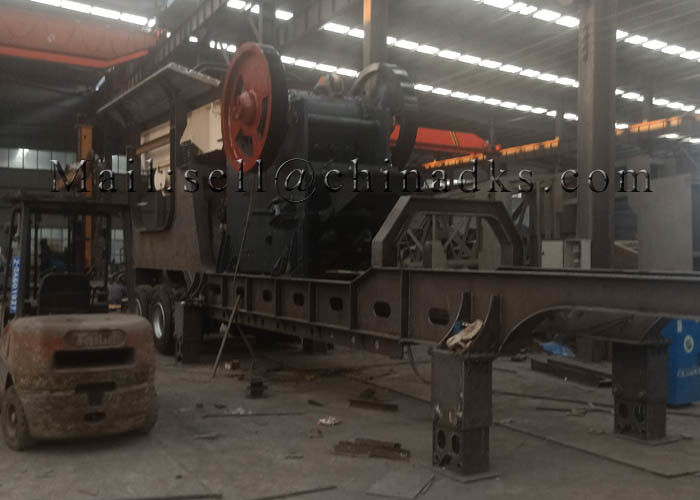

Mobile Jaw Crusher Station for Rock Crushing Line
Mobile Jaw Crusher Station Instroduction:
The primary crushing plant includes Hopper, Vibrating Feeder, Jaw Crusher, Semi-trailer Chassis, and other supporting parts. The material is fed into the hopper by the loader. Vibrating Feeder can prescreen the material during its working process, and feed the bigger material into Jaw Crusher for primary crushing process. Then crushed material will be carried out by the belt conveyor.
Mobile Jaw Crusher Station Features:
Processed Materials: Limestone, Granite, Basalt, River Stone, Coal Gangue, Quartz, Iron Ore, Copper Ore, Zinc Ore, Manganese Ore, etc.
Applications: Secondary medium & fine crusher in mining, quarry, mixing and batching plant, road and building construction, highway, railway and subway, and water
Mobile Jaw Crusher StationTechnical Data:
| Model | HY4060 | HY5075 | HY6090 | HY75106 | HY87106 | HY90120 |
| Transport dimensions | ||||||
| Length(mm) | 8700 | 9326 | 10700 | 12500 | 12460 | 14450 |
| Width(mm) | 2490 | 2490 | 2780 | 2900 | 3120 | 3000 |
| Height(mm) | 3895 | 4125 | 3840 | 4450 | 4440 | 4800 |
| Weight(kg) | 17.4 | 27 | 35.4 | 60 | 60 | 82 |
| Axle Weight(kg) | 8.1 | 16 | 25 | 40.5 | 41.3 | 52 |
| King pin weight(kg) | 50/9.3 | 50/11 | 50/10.4 | 90/19.5 | 90/18.7 | 90/30 |
| Jaw Crusher | ||||||
| Model | PE400X600 | PE500X7500 | PE600X900 | PE750X1060 | PE870X1060 | PE900X1200 |
| Feed opening(mm) | 400*600 | 500*750 | 600*900 | 750*1060 | 870*1060 | 900*1200 |
| Maximum feed size | 340 | 425 | 500 | 630 | 750 | 780 |
| Setting range(c.s.s)(mm) | 40-100 | 50-100 | 65-180 | 80-180 | 170-270 | 95-225 |
| Capacity(m3/h) | 10-35 | 25-60 | 30-80 | 72-150 | 145-235 | 170-250 |
| Feeder | ||||||
| Model | GZD0724 | GZD0724 | GZD0932Y | ZSW490X110 | ZSW490X110 | ZSW600X1300 |
| Feed hopper volume(m3) | 3.2 | 3.2 | 7.6 | 10 | 10 | 10 |
| Hopper width(mm) | 2200 | 2200 | 3150 | 3000 | 3000 | 3000 |
| Belt conveyor | ||||||
| Model | B600X5.8 | B650X5.8 | B1000X7.0 | B1000X7.2 | B1000X7.2 | B1200X8.3 |
| Side belt (optional) | ||||||
| Model | B400X2.7Y | B500X2.7 | B500X2.7 | B500X2.7 | B650X3.5 | |
| Separators | optional | |||||
| Model | RCYD-6.5 | RCYD-6.5 | RCYD-10 | RCYD-10 | RCYD-10 | RCYD-12 |
| Frame axes | ||||||
| Number of axes | 1 | 2 | 2 | 3 | 3 | 4 |
OEM ODM production is accept, pls contact with us for your requirement.
