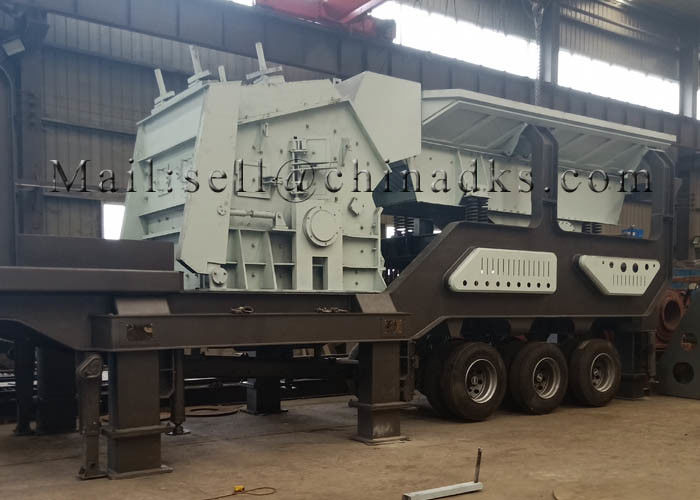

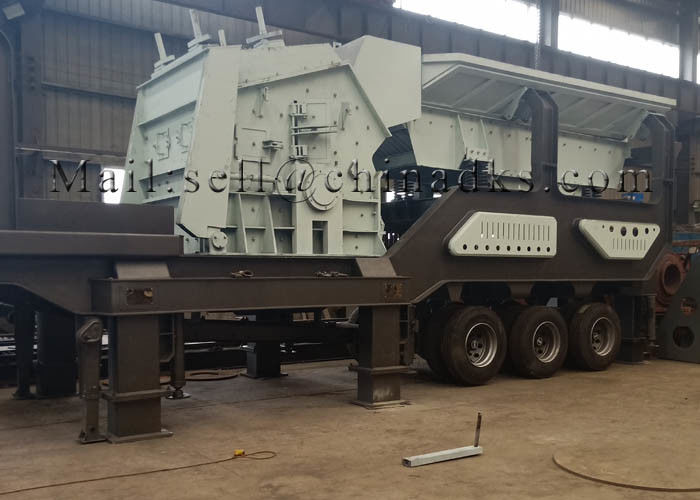

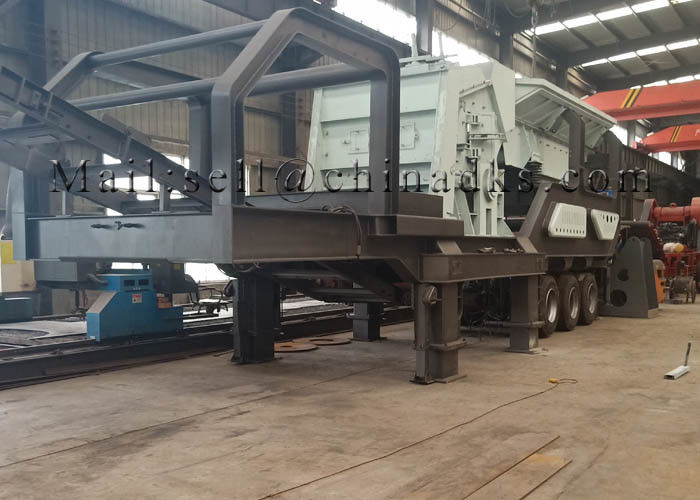

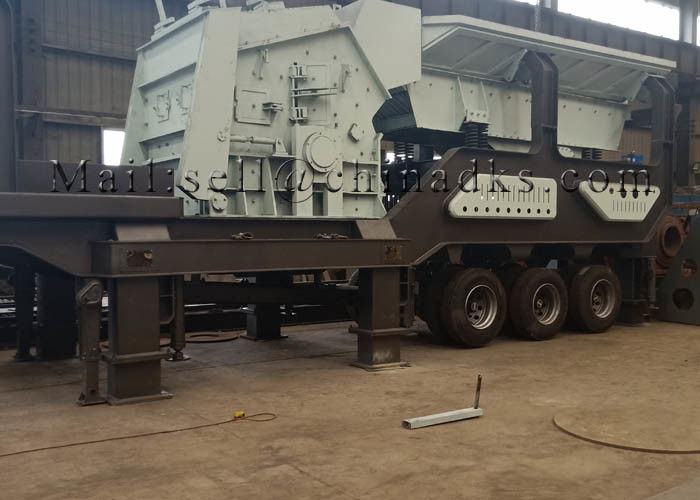

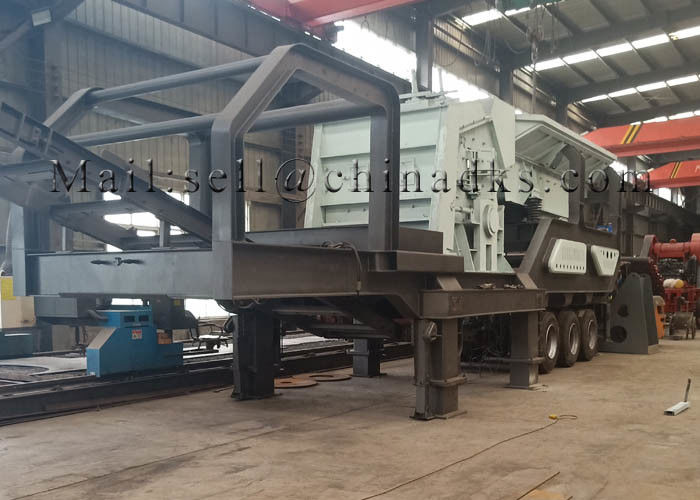

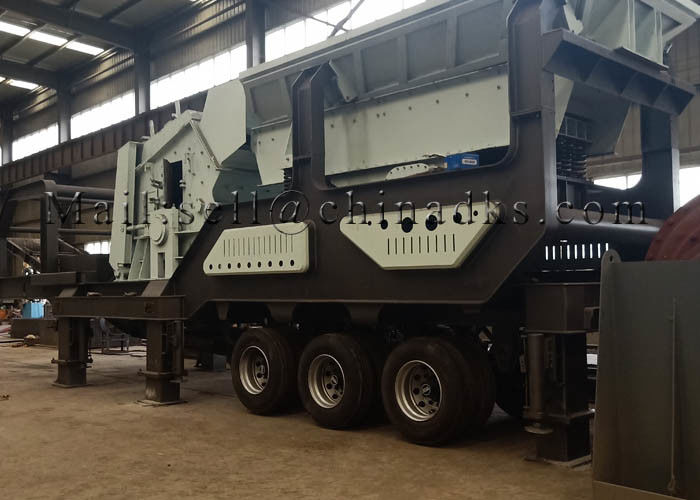

Mobile Stone and Aggregate Impact Crusher Station for Construction Waste
As urbanization continues to accelerate, the number of urban construction waste is also growing rapidly. People enjoy the urban civilization, it is also subjected to the annoyance urban waste, construction waste will occupy a large proportion of total waste accounts for about 30% to 40%.Zhengzhou Hengyang Industry starting to produce and install crushing and separating plants, mobile crushing station for renovation in building materials industry & construction waste.
Hengyang Mobile Stone and Aggregate Impact Crusher Station is often used in the site where you may often need to change working site, especially when you process stones used in high way, railway and so on.
Mobile Stone and Aggregate Impact Crusher Station Applicated Materials: Construction waste, waste bricks, Limestone, Granite, Gabbro, Basalt, River Stone, Coal Gangue, Quartz, Iron Ore, Copper Ore, Zinc Ore, Manganese Ore, etc.
Mobile Stone and Aggregate Impact Crusher Station Technical Details:
| Mobile Stone and Aggregate Impact Crusher Station | ||||
| HY Mobile Impact Crusher Plant | HY10PF3S | HY12PF3S | HY14PF3S | HY13PF3S |
| Transport dimensions | ||||
| Length(mm) | 10800 | 12500 | 14700 | 14500 |
| Width(mm) | 2780 | 2780 | 2900 | 3000 |
| Height(mm) | 4010 | 4200 | 4420 | 4500 |
| Weight(t) | 28.8 | 35 | 40.3 | 47 |
| Axle weight(t) | 20.2 | 24.5 | 26 | 32.4 |
| Traction pin/Loading weight(t) | 50/8.6 | 50/10.5 | 90/14.3 | 90/14.6 |
| Impact crusher | ||||
| Model | PF1010 | PF1210 | PF1214 | PF1315 |
| Feed opening(mm) | 400X1080 | 400X1080 | 400X1430 | 860X1520 |
| Max Feeding size(mm) | 350 | 500 | 500 | 600 |
| Capacity(t/h) | 50-80 | 70-120 | 110-180 | 160-250 |
| Vibrating Feeder | ||||
| Model | GZD8530 | GZD8530 | GZD9638 | GZD1142 |
| Belt conveyor | ||||
| Model | B650X6.2Y | B800X7.2Y | B1000X8.2 | B1000X8.2 |
| Number of axles | ||||
| Number of axles | 2 | 2 | 2 | 3 |
