Place of Origin:
China
Brand Name:
Hengyang
Certification:
ISO9001
Model Number:
HYC025

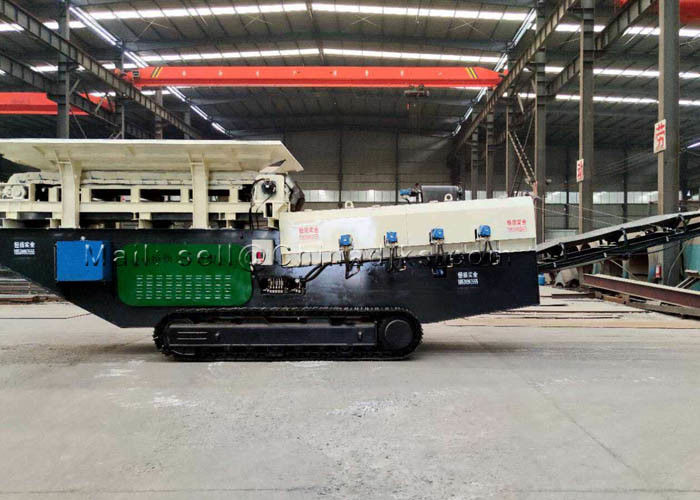

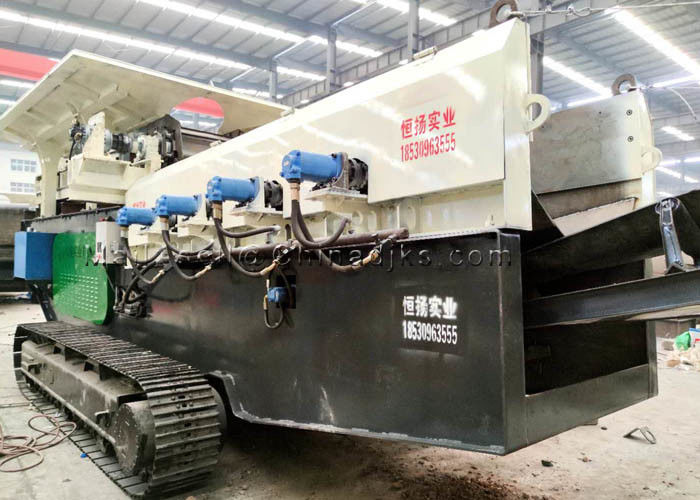

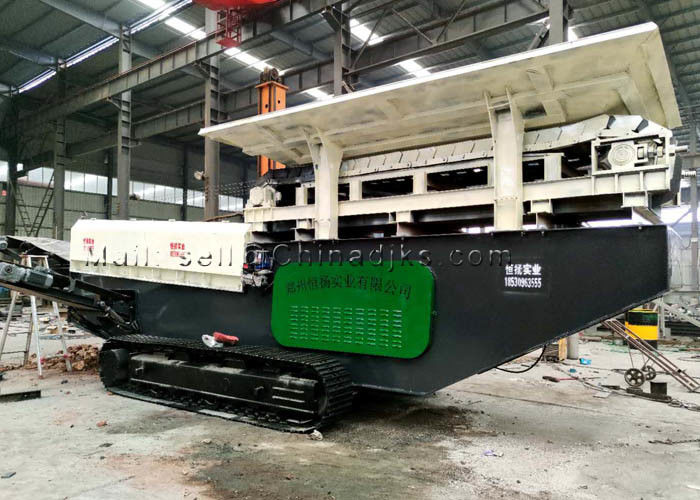

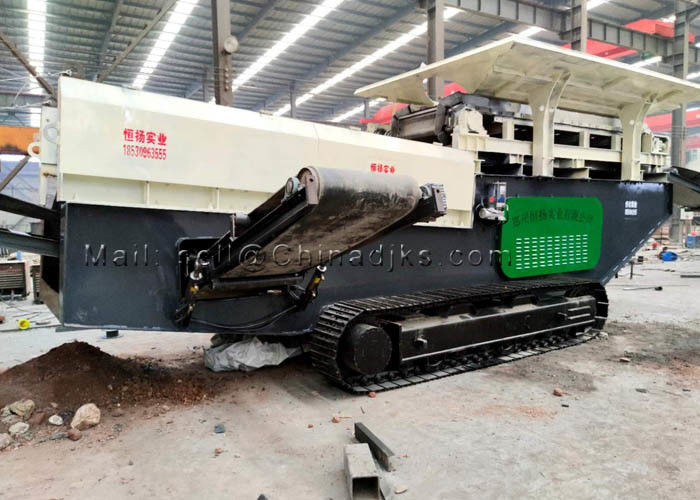

Crawler Stone and Debris Separator Application:
Sand and gravel are mined from quarries, open-pit-mines or dredged from waters such as rivers, lakes, and seas. Those materials are having mud, clay sticky on, we need to make cleaning or separate them.
Other kind of materials like construction waste materials also included large quantity of debris, need to separate them.
Solid waste material also have sticky debris, we need to use Crawler Stone and Debris Separator for make sorting.
Crawler Stone and Debris Separator Technical Details:
| Model | HYS0835 | HYS1040 | HYS1240 | HYS1445 | HYS1645 | HYS1850 | HYS2050 |
| Slope (°) | 0-5 | 0-5 | 0-5 | 0-5 | 0-5 | 0-5 | 0-5 |
| Sieves Width | 40-100 | 40-100 | 40-100 | 40-100 | 40-100 | 40-100 | 40-100 |
| Practical Width (m) | 0.8 | 1 | 1.25 | 1.5 | 1.5 | 175 | 2 |
| Length (m) | 3.5 | 4 | 4 | 4.5 | 4.5 | 5 | 5 |
| Power (kw) | 7.5*2 | 11*2 | 15*2 | 15*2 | 18.5*2 | 22*2 | 30*2 |
| Capacity (t/h) | 60-0-100 | 100-150 | 150-200 | 200-300 | 300-400 | 400-600 | 600-800 |
| Layer | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Rotation Speed (r/min) | 0-180r/min (frequency control) | ||||||
| Blade shape | Triangle type, butterfly type, teeth shape, Octagonal | ||||||
| Assist air | Frequency control Blower | ||||||
| Oil Station | Provide power | ||||||
| Belt Conveyor | B500, B800, B1000, B1200 | ||||||
| Crawler | 2 sets | ||||||
| Chain Feeder | One | ||||||
