Place of Origin:
China
Brand Name:
Hengyang
Certification:
ISO9001
Model Number:
HYC024

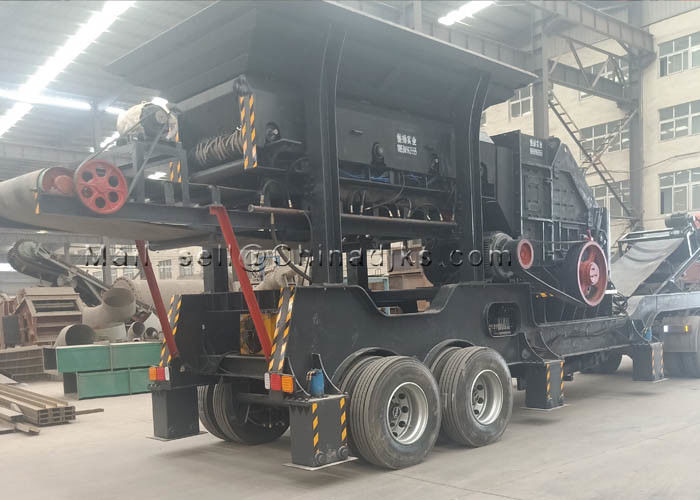

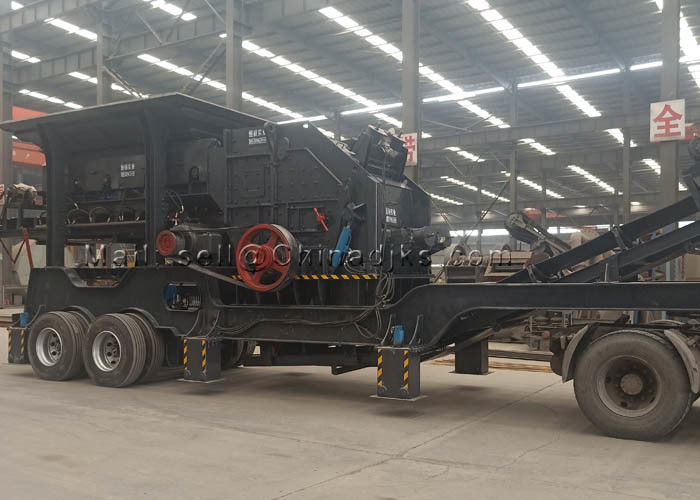

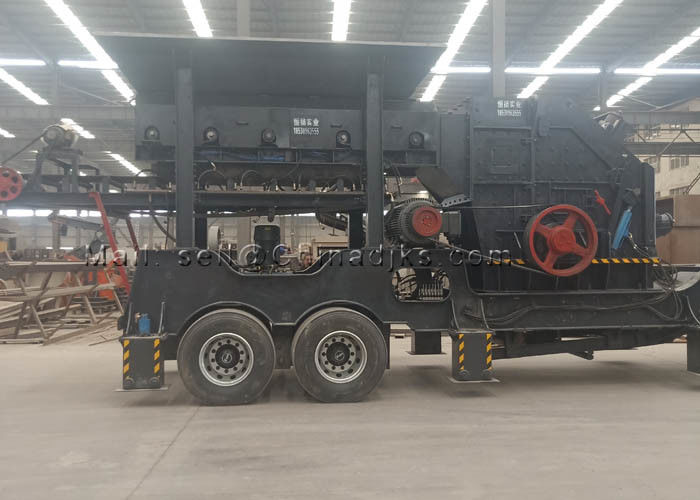

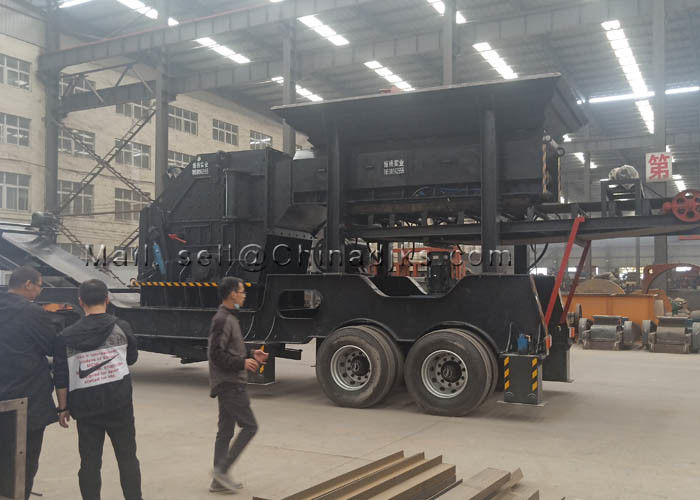

Hengyang Mobile Waste Crusher Plant
Construction waste is anything generated as a result of construction works and then abandoned, regardless of whether it has been processed or stockpiled. It comprises surplus materials from site clearance, excavation, construction, refurbishment, renovation, demolition and road works.
Hengyang Mobile Waste Crusher Plant is often used in separating waste materials and clays, move out clays and impurities, making sure all waste materials going into impact crusher.
Hengyang Mobile Waste Crusher Plant suitable for : Concrete Waste, Building Waste, Limestone, Coal Gangue, Quartz, etc.
Hengyang Mobile Waste Crusher Plant Technical Details:
| HYZ Series Impact Plants | ||||
| HYZ Mobile Impact Crusher Plant | HYZ10PF3S | HYZ12PF3S | HYZ14PF3S | HYZ13PF3S |
| Transport dimensions | ||||
| Length(mm) | 10800 | 12500 | 14700 | 14500 |
| Width(mm) | 2780 | 2780 | 2900 | 3000 |
| Height(mm) | 4010 | 4200 | 4420 | 4500 |
| Weight(t) | 28.8 | 35 | 40.3 | 47 |
| Axle weight(t) | 20.2 | 24.5 | 26 | 32.4 |
| Traction pin/Loading weight(t) | 50/8.6 | 50/10.5 | 90/14.3 | 90/14.6 |
| Impact crusher | ||||
| Model | PFY1010 | PFY1210 | PFY1214 | PFY1315 |
| Feed opening(mm) | 400X1080 | 400X1080 | 400X1430 | 860X1520 |
| Max Feeding size(mm) | 350 | 500 | 500 | 600 |
| Capacity(t/h) | 50-80 | 70-120 | 110-180 | 160-250 |
| Stone and Debris Separator | ||||
| Model | D1025 | D1235 | D1430 | D1830 |
| Belt conveyor | ||||
| Model | B650X5.5Y | B800X8Y | B1000X8.2 | B1000X9 |
| Number of axles | ||||
| Number of axles | 2 | 2 | 2 | 3 |
