Place of Origin:
China
Brand Name:
Hengyang
Certification:
ISO9001
Model Number:
HYC023

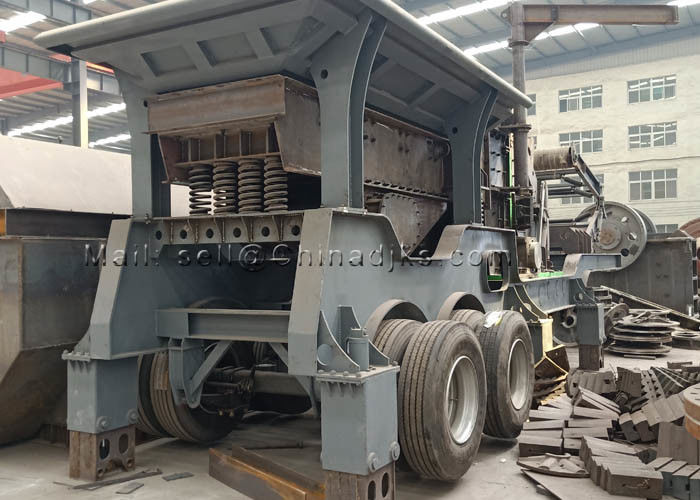

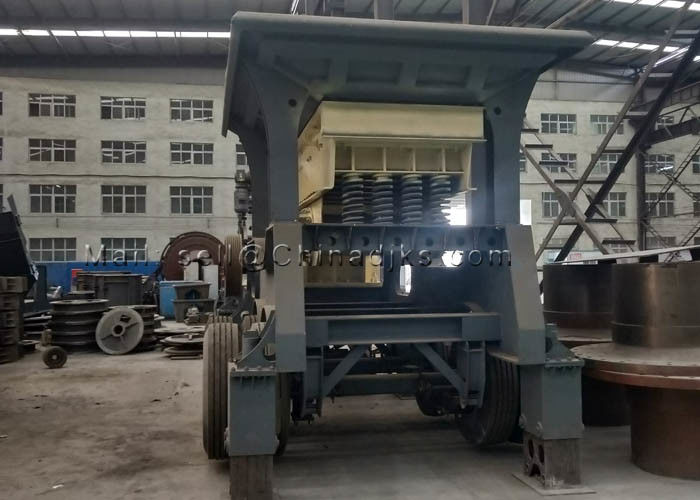

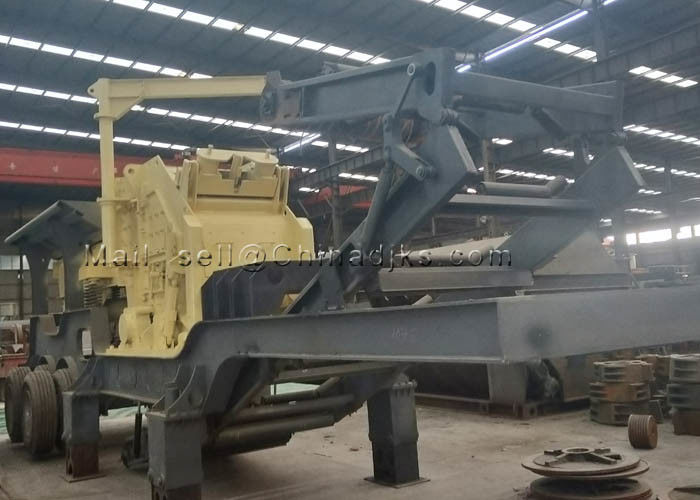

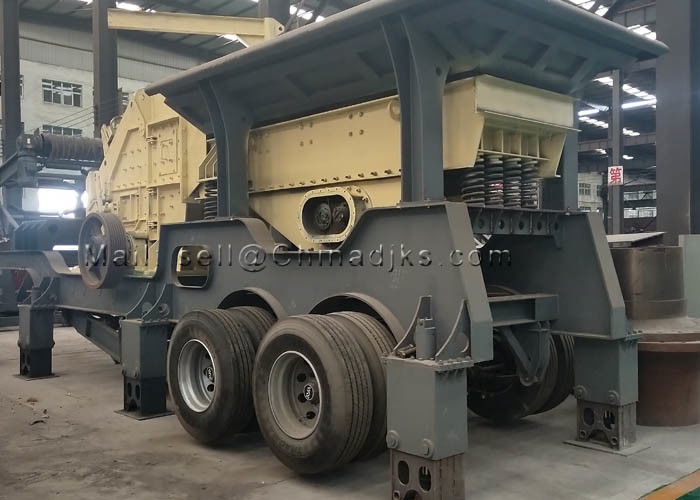

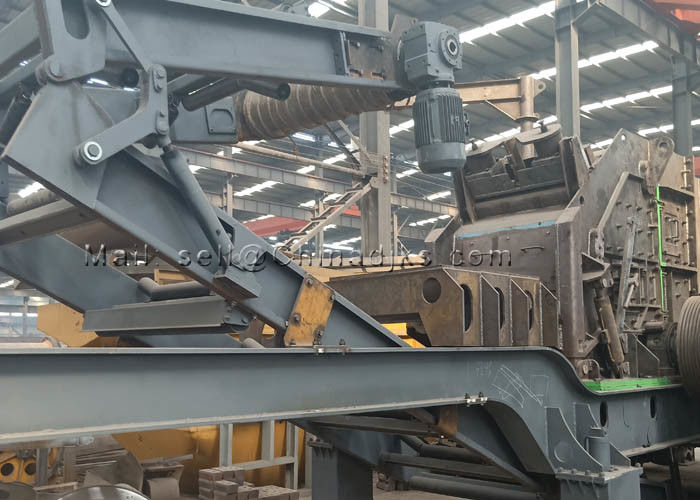

Hengyang Mobile Impact Crusher Plant is often used in the site where you may often need to change working site, especially when you process stones used in high way, railway and so on.
Mobile Impact Crusher Plant Processed Materials:Limestone, Granite, Gabbro, Basalt, River Stone, Coal Gangue, Quartz, Diabase,Iron Ore, Copper Ore, Zinc Ore, Manganese Ore, etc.
1. Mobile Impact Crusher Plant integrated unit. Screening equipment, belt conveyors, impact crusher and other auxiliary equipment are mounted together in one truck trailer.
2. Trailer mounted and easy for transportation.
3. Flexible and efficient. As mobile impact crusher is integrated, so it can work independently. Besides, according to different material types and final product requests, mobile impact crushers technical plan are adjustable.
4. With support legs on the trailer (or track), easy for installation.
Mobile Impact Crusher Plant Technical Details:
| HY Series Impact Plants | ||||
| HY Mobile Impact Crusher Plant | HY10PF3S | HY12PF3S | HY14PF3S | HY13PF3S |
| Transport dimensions | ||||
| Length(mm) | 10800 | 12500 | 14700 | 14500 |
| Width(mm) | 2780 | 2780 | 2900 | 3000 |
| Height(mm) | 4010 | 4200 | 4420 | 4500 |
| Weight(t) | 28.8 | 35 | 40.3 | 47 |
| Axle weight(t) | 20.2 | 24.5 | 26 | 32.4 |
| Traction pin/Loading weight(t) | 50/8.6 | 50/10.5 | 90/14.3 | 90/14.6 |
| Impact crusher | ||||
| Model | PFY1010 | PFY1210 | PFY1214 | PFY1315 |
| Feed opening(mm) | 400X1080 | 400X1080 | 400X1430 | 860X1520 |
| Max Feeding size(mm) | 350 | 500 | 500 | 600 |
| Capacity(t/h) | 50-80 | 70-120 | 110-180 | 160-250 |
| Vibrating screen | ||||
| Model | 3YK1235 | 3YK1545 | 3YK1860 | 3YK2160 |
| Belt conveyor | ||||
| Model | B650X6.2Y | B800X7.2Y | B1000X8.2 | B1000X8.2 |
| Number of axles | ||||
| Number of axles | 2 | 2 | 2 | 3 |
