Place of Origin:
China
Brand Name:
Hengyang
Certification:
ISO9001
Model Number:
HYC021

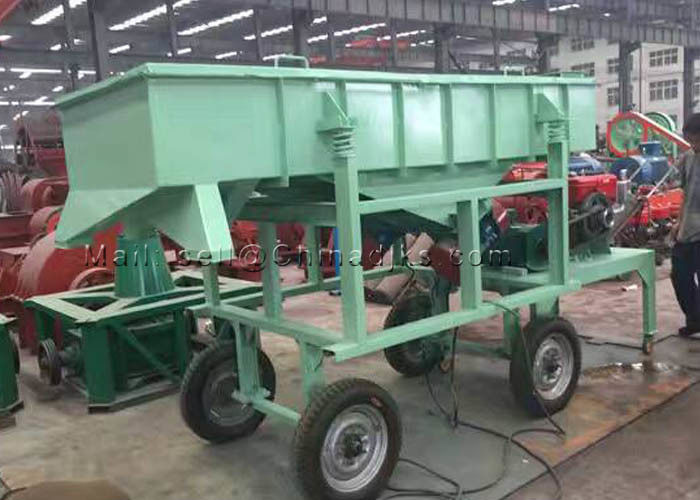

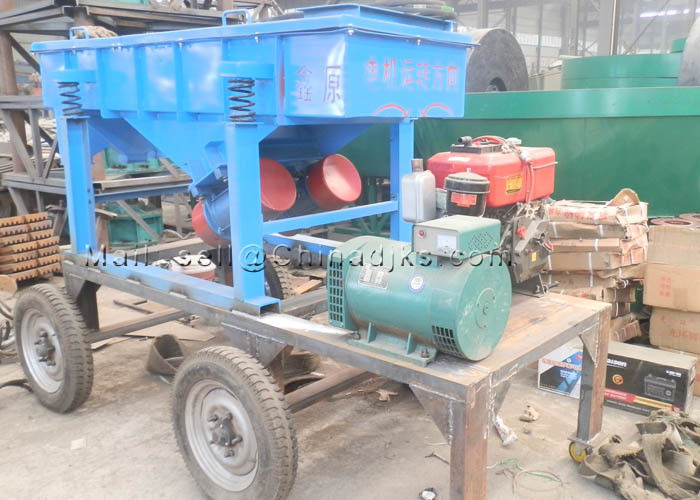

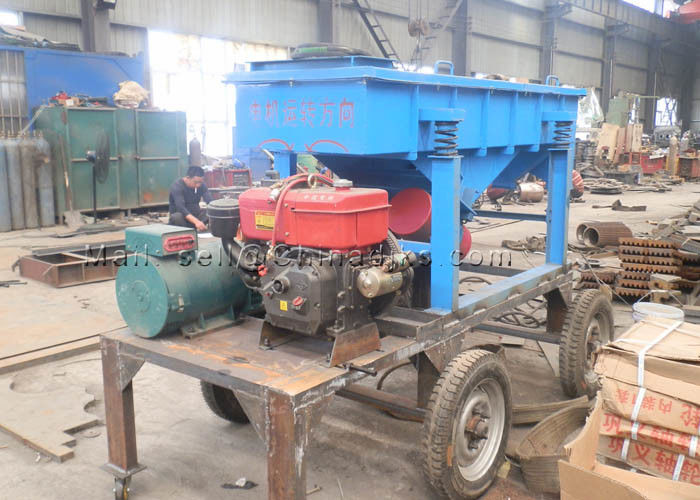

Diesel Linear Screen is a kind of small and medium size multi-layer screening machinery. Its performance has reached the international advanced level. Any dry material with a diameter of 0.074mm-20 mm could be handled. The maximum granule diameter should be less than 30 mm. As a multi-layer screen, this machine could come with seven layers of screen at most.
Diesel Linear Screen Features:
1.Chemical industry: Resin pigment, medicine, grease, paint, palette, etc.
2.Abrasive material and ceramic industry: Building sand, mica, alumina, abrasive, refractory material, slurry, etc.
3.Food industry: Sugar, salt, alkali, gourmet powder, starch, milk powder, yeast powder, pollen, food additive, bean milk, juice, etc.
4.Paper-making industry: Coated slurry, exhaust liquid, paper making liquid and waste water reclamation, etc.
5.Metallurgy and mining industry: Quartz sand, ore, titanium oxide, zinc oxide, etc.
6.Mechanical industry: Casting sand, powder metallurgy, electromagnetic material and metal powder, etc.
Diesel Linear Screen Technical Details:
| Model | Screening area (mm) | Layer | Mesh size(mm) | Capacity (t/h) | RPM | Double amplitude (mm) | Power (kw) | Dimension(mm) |
| HYL520 | 500×2000 | 1 | 2-200 | 0.05-5 | 960 | 6-7 | 2×0.4 | 2140×808×848 |
| HYL520-2 | 2 | 0.05-5 | 960 | 6-7 | 2×0.4 | 2199×808×878 | ||
| HYL520-3 | 3 | 0.03-5 | 960 | 4-6 | 2×0.4 | 2256×808×938 | ||
| HYL525 | 500×2500 | 1 | 0.06-8 | 960 | 5-7 | 2×0.4 | 2642×808×848 | |
| HYL525-2 | 2 | 0.06-8 | 960 | 4-6 | 2×0.4 | 2699×808×878 | ||
| HYL525-3 | 3 | 0.06-8 | 960 | 6-8 | 2×0.75 | 2750×808×938 | ||
| HYL525-4 | 4 | 0.1-15 | 960 | 5-7 | 2×0.4 | 2813×808×1000 | ||
| HYL525-5 | 5 | 0.08-15 | 960 | 5-7 | 2×0.4 | 2883×808×1060 | ||
| HYL525-6 | 6 | 0.07-15 | 960 | 6-8 | 2×0.75 | 2953×808×1120 | ||
| HYL1020 | 1000×2000 | 1 | 0.12-20 | 960 | 6-8 | 2×0.75 | 2152×1320×900 | |
| HYL1020-2 | 2 | 0.11-20 | 960 | 5-7 | 2×0.75 | 2219×1320×960 | ||
| HYL1020-3 | 3 | 2-200 | 0.10-2 | 960 | 5-7 | 2×0.75 | 2286×1320×1030 | |
| HYL1020-4 | 4 | 0.07-15 | 960 | 4-8 | 2×0.75 | 2353×1320×1100 | ||
| HYL1020-5 | 5 | 0.07-15 | 960 | 4-8 | 2×1.5 | 2420×1320×1160 | ||
| HYL1020-6 | 6 | 0.07-15 | 960 | 4-8 | 2×1.5 | 2487×1320×1220 | ||
| HYL1025 | 1000×2500 | 1 | 0.1-15 | 960 | 5-7 | 2×0.4 | 2203×1320×900 | |
| HYL1025-2 | 2 | 0.08-15 | 960 | 5-7 | 2×0.4 | 2269×1320×960 | ||
| HYL1025-3 | 3 | 0.07-15 | 960 | 6-8 | 2×0.75 | 2336×1320×1030 | ||
| HYL830 HYL830-2 HYL830-3 |
800×3000 | 1 2 3 |
0.1-20 | 960 | 6-8 | 2×0.75 | 3080×1098×1120 | |
| 0.1-20 | 960 | 6-8 | 2×0.75 | 3140×1098×1180 | ||||
| 0.1-20 | 960 | 6-8 | 2×1.5 | 3200×1098×1240 | ||||
| HYL1030 | 1000×3000 | 1 | 0.1-20 | 960 | 6-8 | 2×0.75 | 3152×1340×1120 | |
| HYL1030-2 | 2 | 0.1-20 | 960 | 6-8 | 2×1.5 | 3219×1340×1120 | ||
| HYL1030-3 | 3 | 0.1-20 | 960 | 6-8 | 2×1.5 | 3286×1340×1120 | ||
| HYL1224 | 1200×2400 | 1 | 0.1-23 | 960 | 6-8 | 2×0.75 | 2480×1520×1100 | |
| HYL1224-2 | 2 | 0.1-23 | 960 | 6-8 | 2×0.75 | 2540×1520×1160 | ||
| HYL1224-3 | 3 | 0.1-23 | 960 | 6-8 | 2×1.5 | 2600×1520×1220 |
This Technical details are only for linear Screen, frame size and Diesel engine powder is different. And the frame, mobile bottom are make OEM ODM production.
