Place of Origin:
China
Brand Name:
Hengyang
Certification:
ISO9001
Model Number:
HYC018

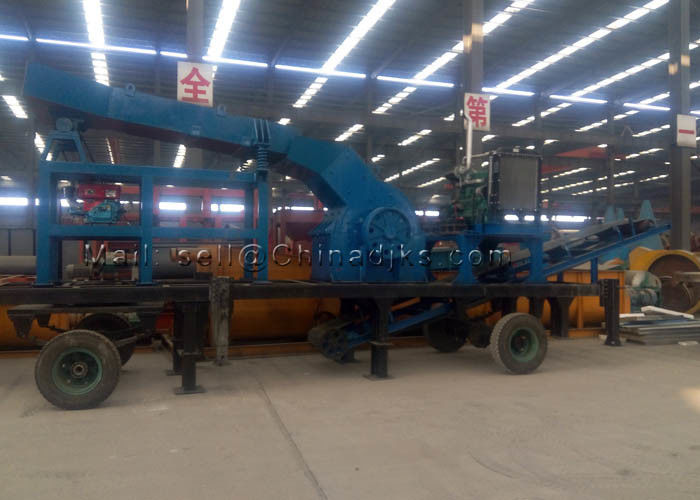

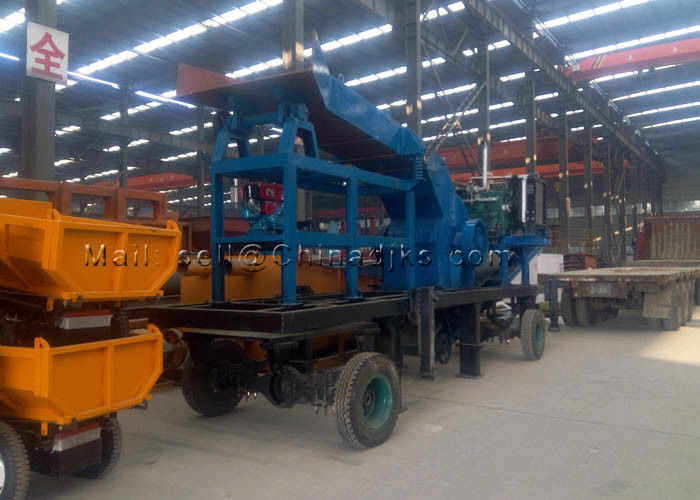

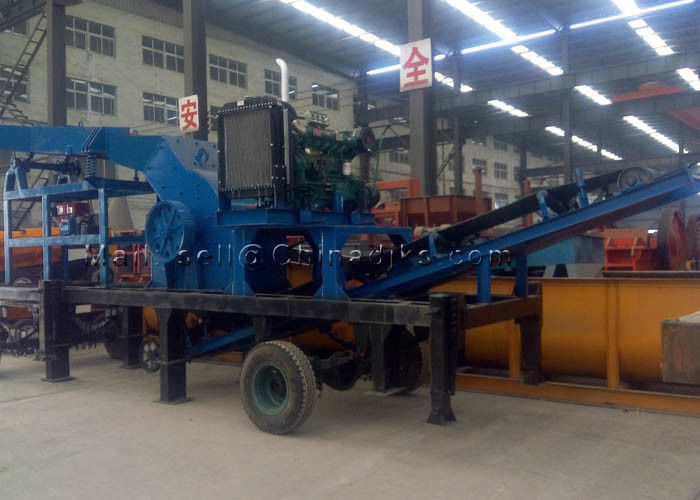

Diesel Hammer Crusher with Feeder is mainly used in some place that don't have enough electricity or without electricity. They can do the middle or fine crushing for every kind of rocks and stones. This kind of crusher is in compact structure, easy usage and simple operation. We also can do portable (mobile) ones as clients' request.
Feeder, belt conveyor and Hammer crusher are all working on same crushing plant, suitable for medium crushing plant. Application: ironstone, copper ore, limestone, quartz, etc.
Zhengzhou Hengyang Industry Will make and produce special Diesel Crushing and separating machines for you if let us know your working conditions, like, capacity, material, feeding and outputting size, etc.
Diesel Hammer Crusher with Feeder Technical Details:
| Model | Feeding Size (mm) |
Discharging Size (mm) |
Capacity (t/h) |
Power for Diesel engine (HP) |
Weight (kg) |
| PCC1525 | <125 | 10-40 | 2-5 | 15 | 1320 |
| PCC2540 | <200 | 20-50 | 5-20 | 30 | 3150 |
| PCC3040 | <100 | <15 | 15-30 | 40 | 4960 |
| PCC4060 | <120 | <15 | 35-50 | 55 | 10650 |
