Place of Origin:
China
Brand Name:
Hengyang
Certification:
ISO9001
Model Number:
HYC016

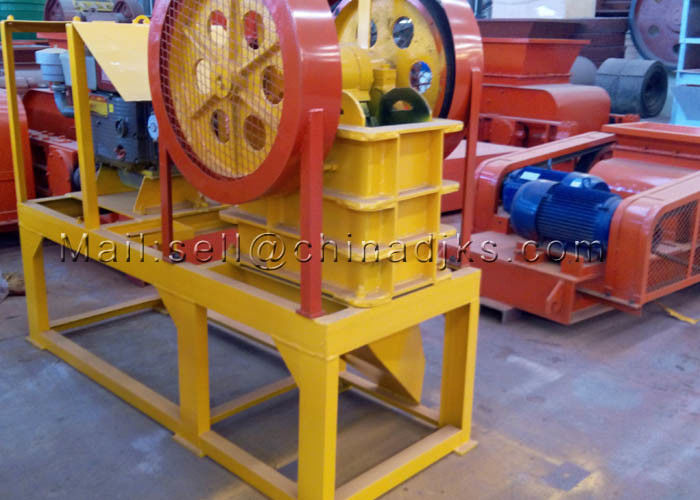

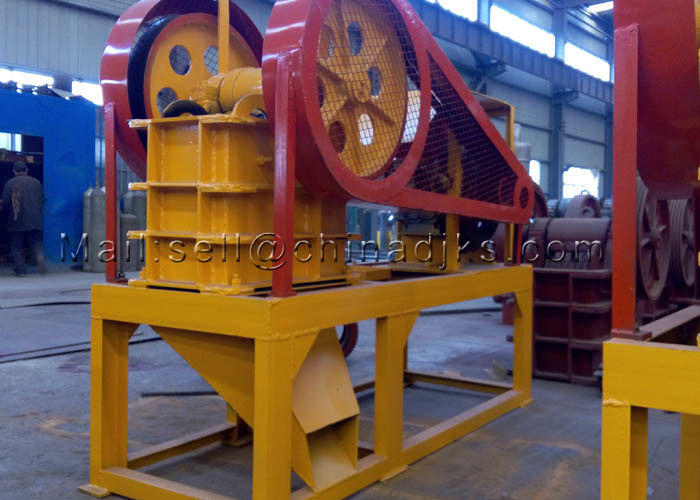

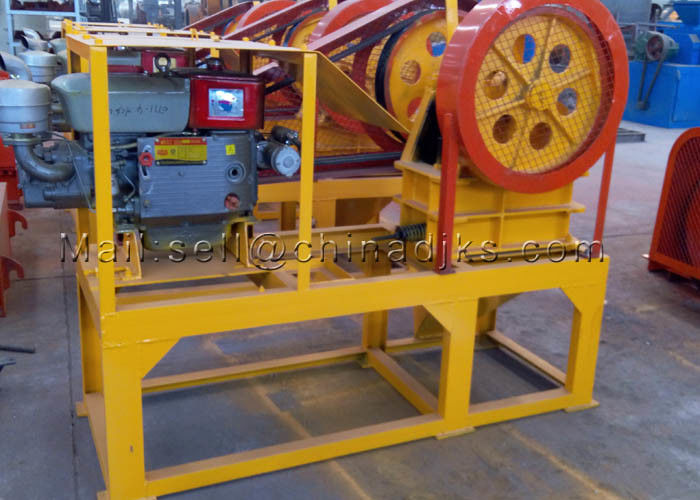

Mini Mobile Diesel Jaw Crusher with Discharging Chute Application:
Mining, building materials, road, chemicals Industry
Crushing materials: limestone, calcium carbide, waste brick and concrete, shale, basalt, river stone, blue stone, copper, gold ore, etc.
Mini Mobile Diesel Jaw Crusher with Discharging Chute Working principle:
The Diesel Engine Jaw Crusher is mainly used in some place that don't have enough electricity or without electricity. We also make structure and make sure to no need to use foundation in local. When the small jaw crusher working, belt and belt pulley are driven by a motor. The movable jaw moves up and down via eccentric shaft. The angle between fixed jaw and movable jaw becomes smaller when the moving jaw runs down, then the materials are crushed into pieces.
Mini Mobile Diesel Jaw Crusher with Discharging Chute Features:
1. No need to make Foundation
2. Easy to Move, suitable for small plant
3. Low investment, easier maintance
4. Stable Structure
Mini Mobile Diesel Jaw Crusher with Discharging Chute Technical Details:
| Model | Feeding Open Size (mm) | Max. Feed Size (mm) | Discharging opening size(mm) | Capacity(t/h) | Diesel | Overall dimension(mm) |
| PE150X250 | 150X250 | 130 | 15-45 | 1-4 | 8HP | 896*745*935 |
| PE200X300 | 200X300 | 180 | 15-50 | 2-6 | 8HP | 910*750*990 |
| PE200X350 | 200X350 | 180 | 18-70 | 3-10 | 10HP | 1000*870*990 |
| PE250X400 | 250X400 | 210 | 25-60 | 5-20 | 20HP | 1215*1520*103 |
