Place of Origin:
China
Brand Name:
Hengyang
Certification:
ISO9001
Model Number:
HYC014

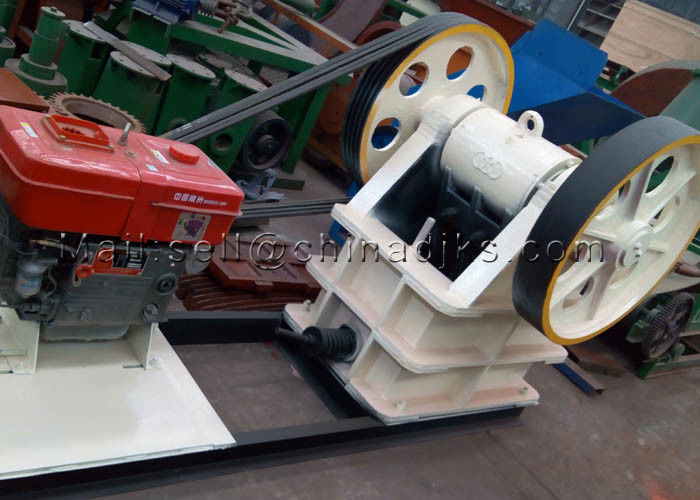

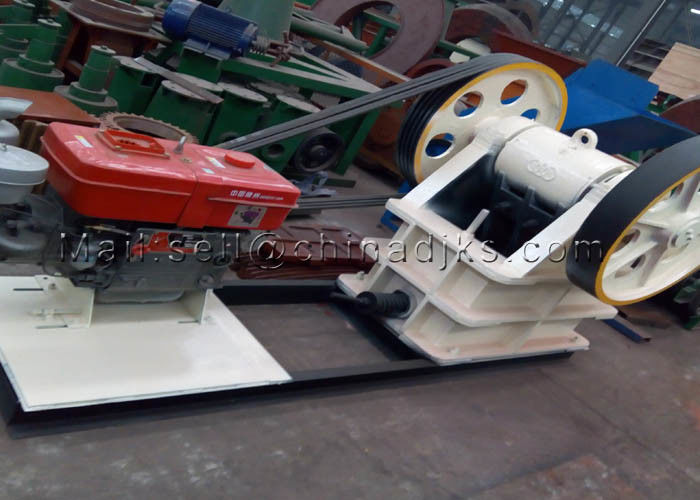

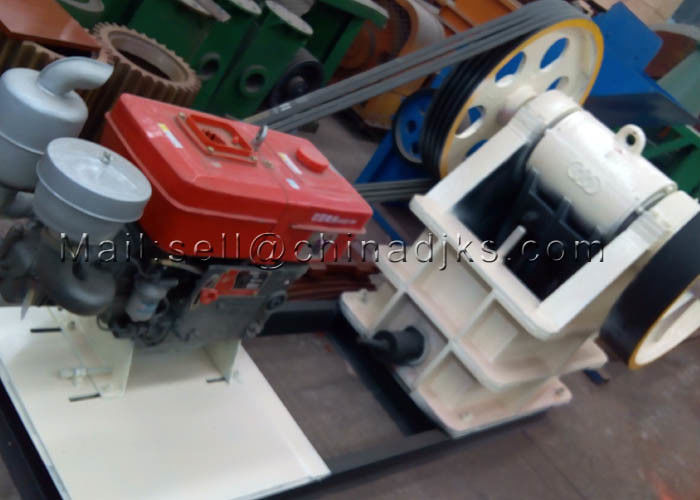

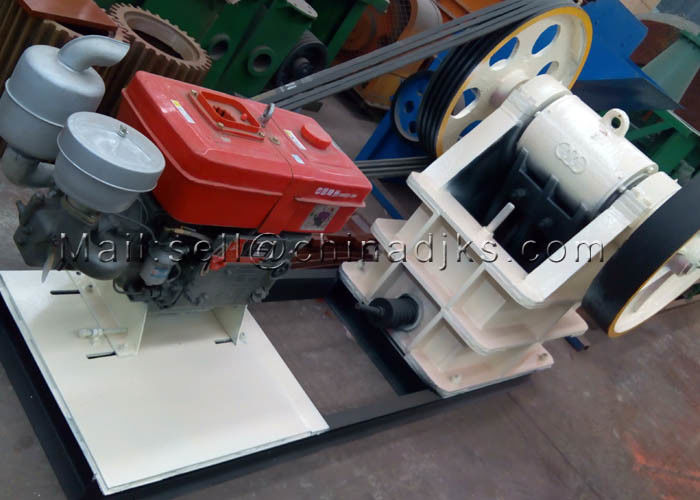

Diesel Jaw Crusher for Mobile Brick and Stone Crushing
Diesel Jaw Crusher Application:
Mining, metallurgy, building materials, road, chemicals and a variety of ores, and many other industries.
Crushing materials: limestone, calcium carbide, waste brick and concrete, shale, basalt, river stone, blue stone, copper, gold ore, etc.
Diesel Jaw Crusher Working principle:
When the small jaw crusher working, belt and belt pulley are driven by a motor. The movable jaw moves up and down via eccentric shaft. The angle between fixed jaw and movable jaw becomes smaller when the moving jaw runs down, then the materials are crushed into pieces. It becomes bigger when the movable jaw runs up. The movable jaw plate leaves the fixed jaw plate under the action of tension rod and spring, then the end products come out from the crushing cavity.
Diesel Jaw Crusher Features:
1 High reduction ratio and even final particles.
2 Simple structure and easy to be maintained.
3 Easy replacement of wearing and spare parts.
4 Reliable operation and long service life.
5 Convenient maintenance with low cost.
6 Electric motor or diesel engine
Diesel Jaw Crusher Technical Details:
| Model | Feeding Open Size (mm) | Max. Feed Size (mm) | Discharging opening size(mm) | Capacity(t/h) | Diesel | Overall dimension(mm) |
| PE150X250 | 150X250 | 130 | 15-45 | 1-4 | 8HP | 896*745*935 |
| PE200X300 | 200X300 | 180 | 15-50 | 2-6 | 8HP | 910*750*990 |
| PE200X350 | 200X350 | 180 | 18-70 | 3-10 | 10HP | 1000*870*990 |
| PE250X400 | 250X400 | 210 | 25-60 | 5-20 | 20HP | 1215*1520*103 |
