Place of Origin:
China
Brand Name:
Hengyang
Certification:
ISO9001
Model Number:
HY-003

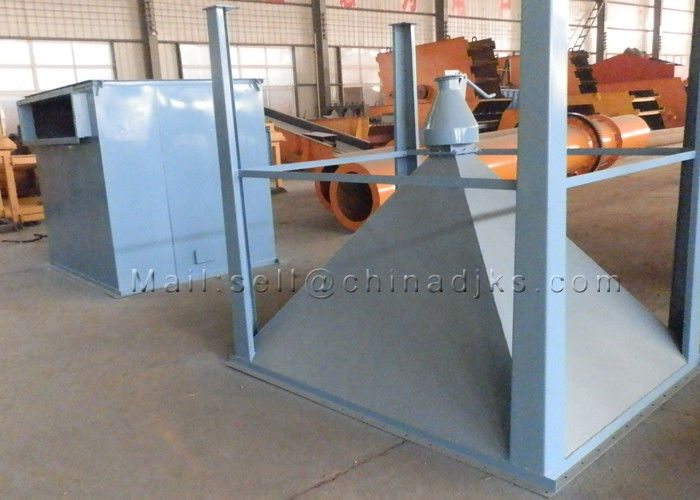

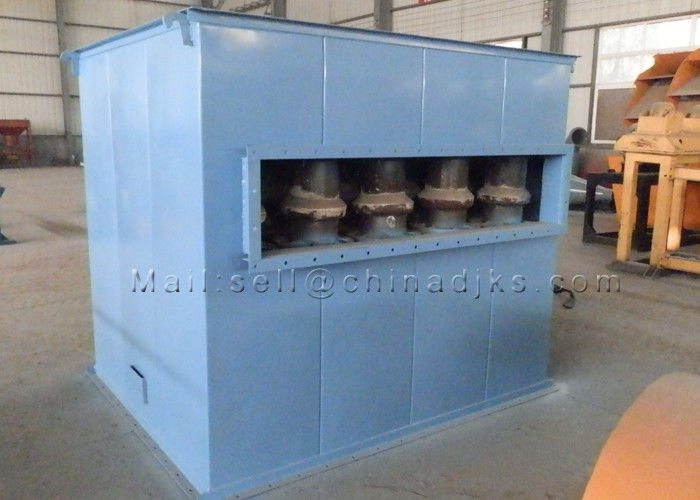

Muti Pipe Dust Collector
Baghouse Dust Collecting System is one system to filter the dust in Fume / gas. It is mainly used for purifying the dusty gas and recycling materials
Bag dust collector is a dry industrial filtering device. It is suitable for capturing tiny, dry, non-fibrous dust. The filter bag is made of textile filter cloth or non-woven felt, and the dusty gas can be filtered by the filtering effect of the fiber fabric to achieve the treatment effect of flue gas.
Features:
1. High efficiency≥99.5%
2. Low emission concentration ≤20um, but also ≤10um is possible after filtering according to practical situation
3. Low leakage rate
4. Material—carbon steel or stainless steel.
5. Simple Structure, easy maintenance
6. Suitable bags and bag cages fitted according to dust properties. Glass Fiber, needle felt, PTFE, p84., etc
7. The overhaul and bag replacement can be carried out for separate chamber under the condition that system blower and system run normally.
Technical details:
| No. | Filter wind speed(m/min) | Handling wind volume(m3/h) | Resistance(pa) | Filter area(m2) | Dust concentration(g/m3) | Insulation area(m2) | Weight(kg) |
| 32-3 | 1.2-2.0 | 6900 | 1470-1770 | 93 | <1000 | 26.5 | Depend model |
| 32-4 | 8930 | 124 | 34 | ||||
| 32-5 | 11160 | 155 | 41 | ||||
| 32-6 | 13390 | 186 | 48.5 | ||||
| 64-4 | 17800 | 248 | 70 | ||||
| 64-5 | 22300 | 310 | 94 | ||||
| 64-6 | 26700 | 372 | 118 | ||||
| 64-7 | 31200 | 434 | 142 | ||||
| 64-8 | 35700 | 496 | 166 |
