Place of Origin:
China
Brand Name:
hengyang
Certification:
ISO9001
Model Number:
HD001

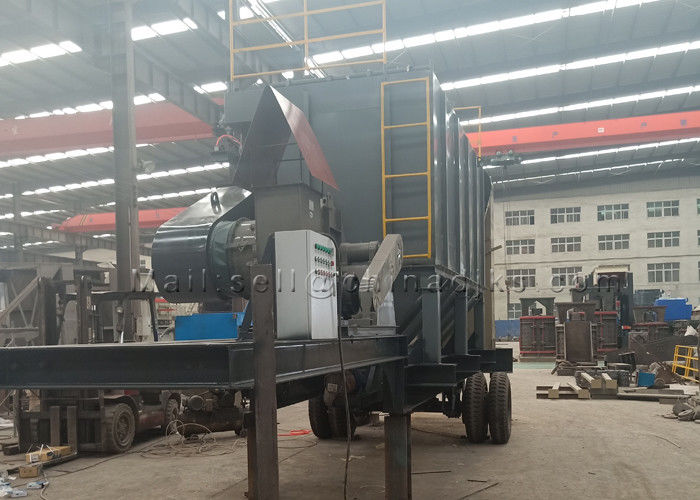

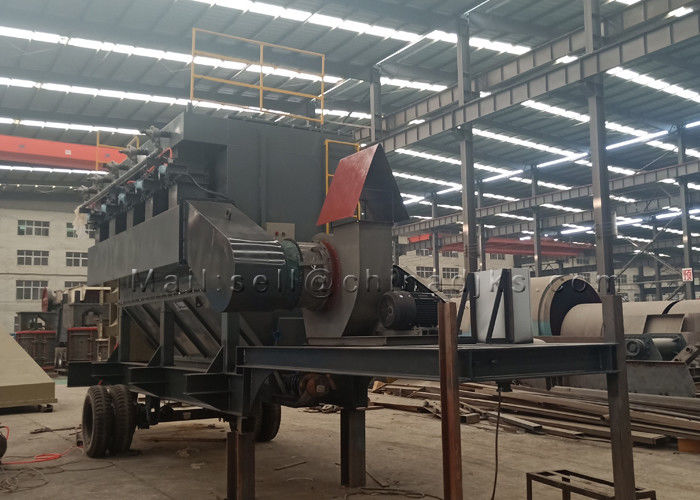

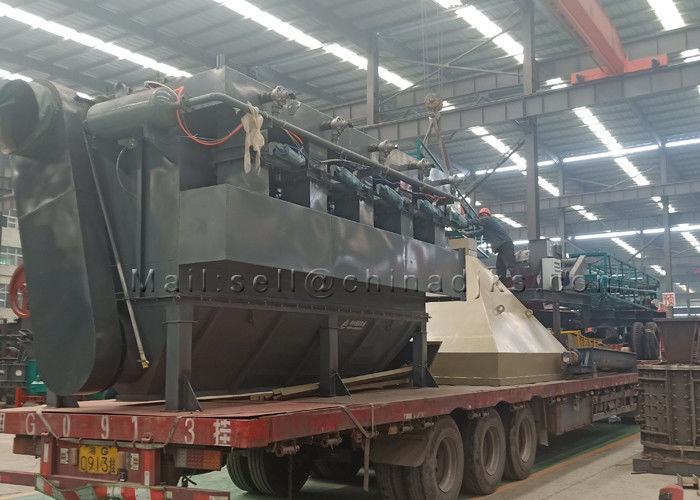

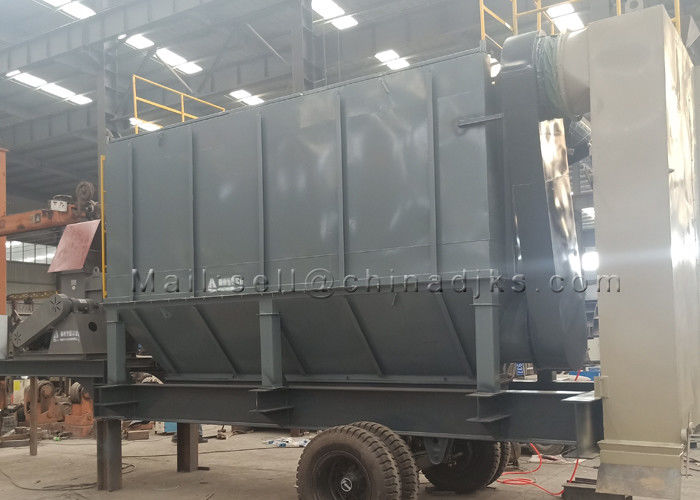

Mobile Pulse Bag Filter for Chemical and Mining Industry
Mobile Pulse Bag Filter Instruction
Hengyang Series is a central dust collection system. It has the characteristics of large air volume, stable structure and convenient cartridge installation and ejection mechanism. It is suitable to deal with the production and processing of a large amount of dust.
Mobile Pulse Bag Filter Applications:
Suitable for wood working, grinding, cutting, feeding and other applications with a large amount of dust. Mobile pulse bag filter is more suitable for moving and use different areas.
Mobile Pulse Bag Filter Optional Function:
Multi tower light
Stainless steel version
Activated carbon filter
Converter
Air speed sensor
Temperature sensor
Dust Concentration Detector
Customizable collection box
Tank level alarm
Gate valve
Central control system with variable frequency and constant pressure
Mobile Pulse Bag Filter Technical Details:
| No. | Technical performance model of dust collector | GMC-108-II | GMC-144-II | GMC-168-II | GMC-192-II | GMC-228-II | GMC-270-II | GMC-300-II |
| 1 | Filter area(m2) | 108 | 144 | 168 | 192 | 228 | 270 | 300 |
| 2 | Filter bag QTY(article) | 108 | 144 | 168 | 192 | 228 | 270 | 300 |
| 3 | Pulse valves No.(a) | 9 | 12 | 14 | 16 | 19 | 27 | 30 |
| 4 | Pulse solenoid valve caliber | 1.5寸 | 1.5寸 | 1.5寸 | 1.5寸 | 1.5寸 | 1.5寸 | 1.5寸 |
| 5 | Wind Capacity(m3/h) | 7000-10000 | 9000-15000 | 11000-18000 | 12000-20000 | 12000-23000 | 15000-26000 | 20000-28000 |
| 6 | Filter bag Spec(mm) | φ130-2450 | φ130-2450 | φ130-2450 | φ130-2450 | φ130-2450 | φ130-2450 | φ130-2450 |
| 7 | Dimension(mm) | 2250×1900×6800 | 2250×2250×6800 | 2750×2250×6800 | 3000×2250×6800 | 3650×2250×6800 | 5160×2160×6290 | 5600×2250×6800 |
| 8 | Pulse control instrument | Automatic control can also be controlled by PLC microcomputer | ||||||
| 9 | Dust removal efficiency(n%) | 99-99.5 | ||||||
| 10 | Equipment resistance AH(Mm water column) | 120-150 | ||||||
| 11 | Filtering wind speed V(m/points) | 1.2-1.6 | ||||||
| 12 | Dust concentration in the inlet(g/㎡) | 50-95 | ||||||
| 13 | Air pressure(kg/CM2) | 5 | ||||||
