Place of Origin:
China
Brand Name:
Hengyang
Certification:
ISO9001
Model Number:
HC-485

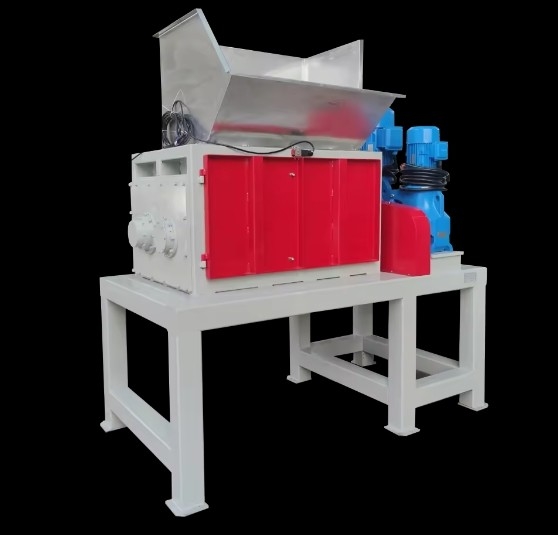

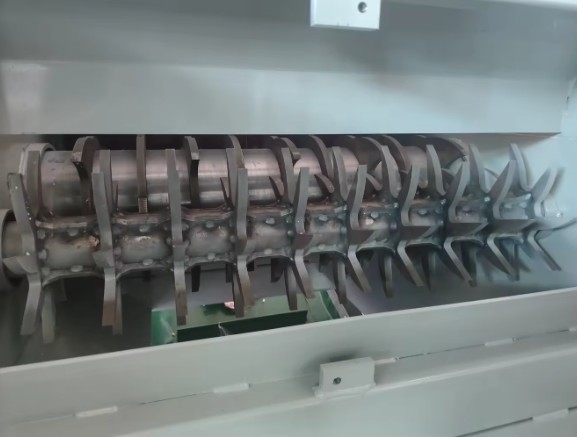

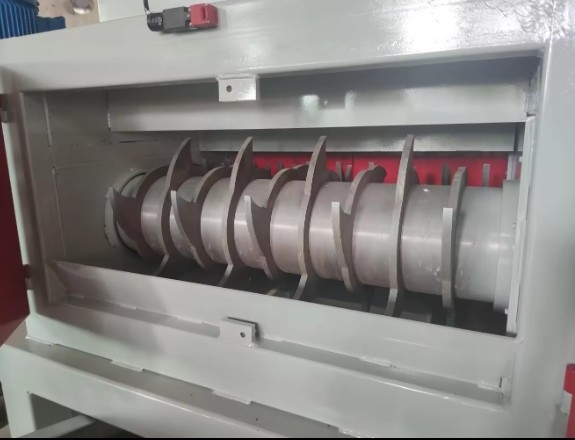

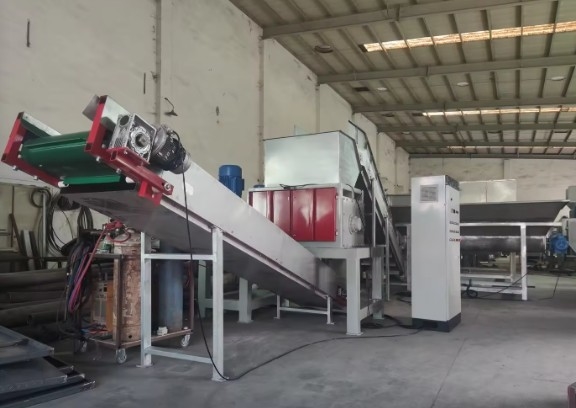

With our broad range of bag breaker we provide the capability to efficiently opens bags at high volumes without damaging content, ensuring maximum recovery of valuable recyclables. The Bag Breaker uses large, counter-rotating drums to efficiently open the bags and release the contents, discharging them from the bottom of the machine. Bags are torn into large pieces for easy removal. Bagged material can be fed directly into the Bag Breaker with an infeed conveyor to achieve an evenly-metered flow rate waste. We build double shaft bag breaker with double motors to driven independent cutting shaft. The auxiliary shaft runns in low speed then the main shaft, this will creat tear and shear effect to break the bags but not damaging content inside. The high capacity bag breaker can handle waste material products including municipal solid waste (fraction up to 300-400 mm), organic waste, mixed materials in bags, waste paper in bags. They are specially designed to provide effective operation with low noise, no sparking, dust or heat rise.
|
Model
|
BB1000
|
|
Working Width:
|
1000 mm
|
|
Hopper Volume:
|
1300x1500
|
|
Auxiliary Rotor Drive:
|
Φ3 KW
|
|
Main Rotor Drive:
|
15 KW
|
|
Comb Number:
|
10 pieces
|
|
Control Cabinet:
|
PLC
|
|
Machine Size:
|
2100x1500x2600 mm
|
|
Machine Weight:
|
2500 kg
|
♦ Overload protection with automatic reversal-shredders include an electronic protection system to automatically stop and reverse the shredding action in the event of system overload. The system allows the bag breaker to clear itself and then continues the shredding process automatically.
♦ Advanced bearing protection system-Multiple barriers of mechanical labyrinth and conventional seals, protecting costly bearings and ensuring maximum on-line reliability.
♦ Efficiency shredding-Counter rotating shafts turn at different speeds increasing the efficiency of the shear and tear action.
♦ Opens bags at high volumes without damaging content, ensuring maximum recovery of valuable recyclables, high capacity (up to 10- 30 t/h) than manual sorting.
♦ Low noise & Non-ballistic operating-Low speed and high torque industrial shredders operate at low noise levels without creating dust and flying particles.
♦ Severe Shock Protection-Cushion drive system absorbs minor shock loads and automatically stops the shredding action in the event a non-shreddable item is introduced into the cutting chamber.
♦ High alloy heat treated cutter for extra long life,anti-corrosive and wear-resistant.
