Place of Origin:
China
Brand Name:
Hengyang
Certification:
ISO9001
Model Number:
HC-455
Product function

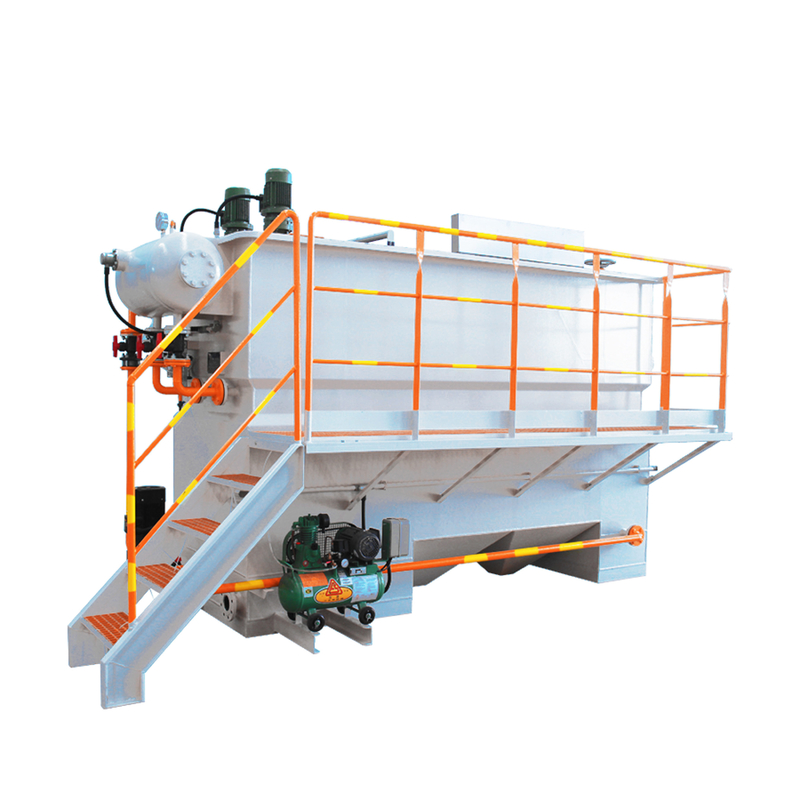

The air flotation machine is a device that can remove suspended solids, grease and various colloids from various industrial and municipal sewage. This equipment is widely used in the treatment of industrial wastewater and municipal sewage in chemical industry, brewing, vegetable oil production, refining, slaughtering, electroplating, printing and dyeing, etc.
Working Principle
The principle of the air flotation machine is that the dissolved air system generates a large number of fine bubbles in the water, causing the air to attach to the suspended particles in the form of highly dispersed tiny bubbles, resulting in a state where the density is lower than sleep. The principle of buoyancy is used to make it float on the water surface, thereby achieving solidification. Liquid separation water treatment equipment.
Product advantages
2. Small footprint
4. Convenient operation and management
Technical Details<spanyes';font-family:宋体;mso-ascii-font-family:calibri; mso-hansi-font-family:calibri;mso-bidi-font-family:'times="" new="" roman';font-size:10.5000pt;="" mso-font-kerning:1.0000pt;"="">
| Model | Treatment capacity (m3/h) | Scraper power (kw) | Model of air compressor | Model of water pump | Tank size (mm) | Dimension L*W*H (m) |
| BW-05 | 4-5 | 0.37 | V-0.1/8 | 11//2G25-1 | Ø400×1000 | 2.5×1×1.25 |
| BW-10 | 8-10 | 0.37 | V-0.14/7 | 11//2GC-5×2 | Ø500×1512 | 3×1.3×1.25 |
| BW-15 | 10-16 | 0.37 | V-0.14/7 | 11//2GC-5×2 | Ø500×1512 | 4×1.3×1.25 |
| BW-20 | 15-20 | 0.37 | V-0.14/7 | 11//2GC-5×2 | Ø500×1512 | 4.4×1.3×1.25 |
| BW-30 | 20-30 | 0.37 | V-0.14/7 | 2GC-5×2 | Ø500×1512 | 4.8×1.6×1.8 |
| BW-40 | 30-40 | 0.55 | V-0.14/7 | 2GC-6×2 | Ø600×1880 | 5×1.8×1.8 |
| BW-50 | 40-50 | 0.55 | V-0.14/7 | GC-6×2 | Ø600×1880 | 5.5×1.8×1.8 |
| BW-60 | 50-60 | 0.55 | V-0.14/7 | GC-6×2 | Ø600×1880 | 6×2.2×1.8 |
| BW-80 | 70-80 | 0.55 | V-0.14/7 | IS80-65-160 | Ø650×2034 | 7×2.2×1.8 |
| BW-100 | 90-105 | 0.55 | V-0.36/7 | IS80-50-200 | Ø700×1980 | 8.2×2.2×1.8 |
| BW-150 | 125-150 | 1.1 | V-0.36/7 | IS150-80-400 | Ø800×1980 | 11.5×2.2×1.8 |
| BW-200 | 175-200 | 1.1 | V-0.36/7 | IS150-80-400 | Ø800×2100 | 13.5×2.2×2.6 |
| BW-250 | 225-250 | 1.1 | V-0.36/7 | IS150-80-400 | Ø800×2400 | 15.5×2.2×2.6 |
| BW-300 | 280-300 | 1.1 | V-0.67/7 | IS150-125-400B | Ø1000×2900 | 17.5×2.2×2.6 |
