Place of Origin:
China
Brand Name:
Hengyang
Certification:
ISO9001
Model Number:
HC-315

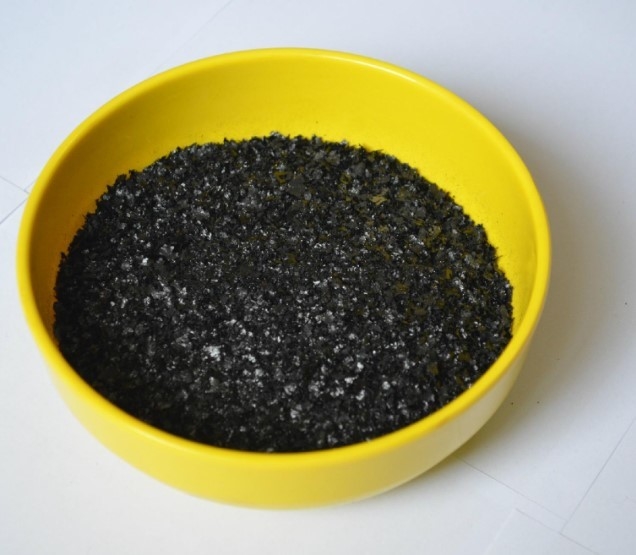

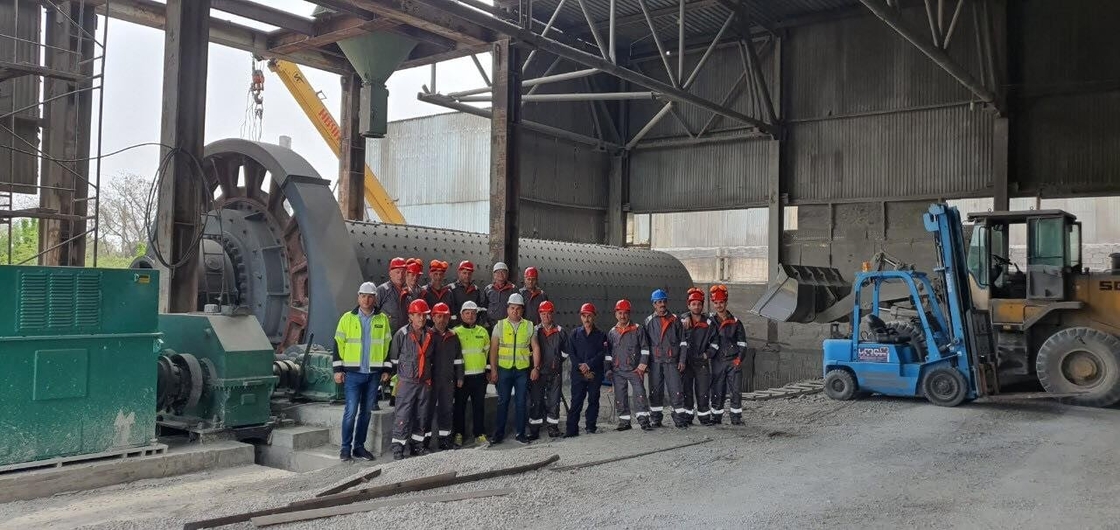

Raw materials Leonardite need to crushing and grinding into powder, ball mill is mainly for grinding.
Ball Mill Technical Details
| Model | Feeding size (mm) |
Discharging size (mm) |
Capacity (t) |
Motor power (kw) |
Total Weight (t) |
| Ф1500×3000 | ≤25 | 0.074-0.4 | 2-5 | 75 | 16.5 |
| Ф1500×4500 | ≤25 | 0.074-0.4 | 3-6 | 110 | 21 |
| Ф1500×5700 | ≤25 | 0.074-0.4 | 3.5-6 | 130 | 24.7 |
| Ф1830×3000 | ≤25 | 0.074-0.4 | 4-10 | 130 | 34.5 |
| Ф1830×4500 | ≤25 | 0.074-0.4 | 4.5-12 | 155 | 38 |
| Ф1830×6400 | ≤25 | 0.074-0.4 | 6.5-15 | 210 | 46 |
| Ф1830×7000 | ≤25 | 0.074-0.4 | 7.5-17 | 245 | 49 |
| Ф2100×3000 | ≤25 | 0.074-0.4 | 6.5-36 | 155 | 48 |
| Ф2100×4500 | ≤25 | 0.074-0.4 | 8-43 | 245 | 59 |
| Ф2100×7000 | ≤25 | 0.074-0.4 | 8-48 | 280 | 67.5 |
| Ф2200×4500 | ≤25 | 0.074-0.4 | 9-45 | 280 | 58 |
| Ф2200×6500 | ≤25 | 0.074-0.4 | 14-26 | 380 | 63 |
| Ф2200×7000 | ≤25 | 0.074-0.4 | 15-28 | 380 | 65.3 |
| Ф2200×7500 | ≤25 | 0.074-0.4 | 15-30 | 380 | 66.5 |
| Ф2400×3000 | ≤25 | 0.074-0.4 | 7-50 | 245 | 65 |
| Ф2400×4500 | ≤25 | 0.074-0.4 | 8.5-60 | 320 | 70 |
| Ф2700×4000 | ≤25 | 0.074-0.4 | 12-80 | 400 | 92 |
| Ф2700×4500 | ≤25 | 0.074-0.4 | 12-90 | 430 | 102 |
| Ф3200×4500 | ≤25 | 0.074-0.4 | Determined by the technological process | 600 | 137 |
| Ф3600×4500 | ≤25 | 0.074-0.4 | Determined by the technological process | 850 | 158 |
| Ф3600×6000 | ≤25 | 0.074-0.4 | Determined by the technological process | 1250 | 175 |
