Place of Origin:
China
Brand Name:
Hengyang
Certification:
ISO9001
Model Number:
HC-338

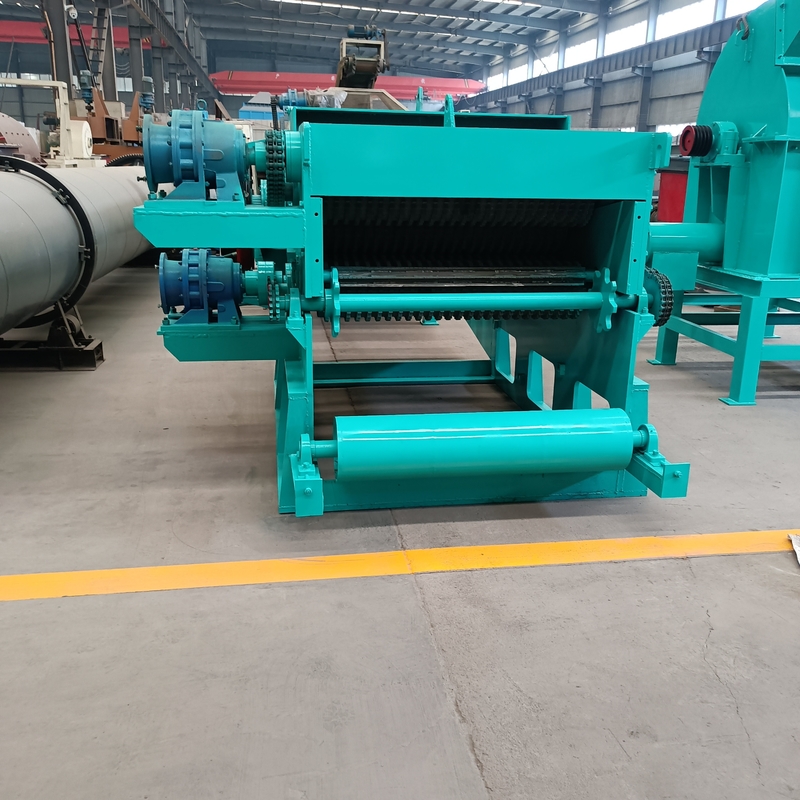

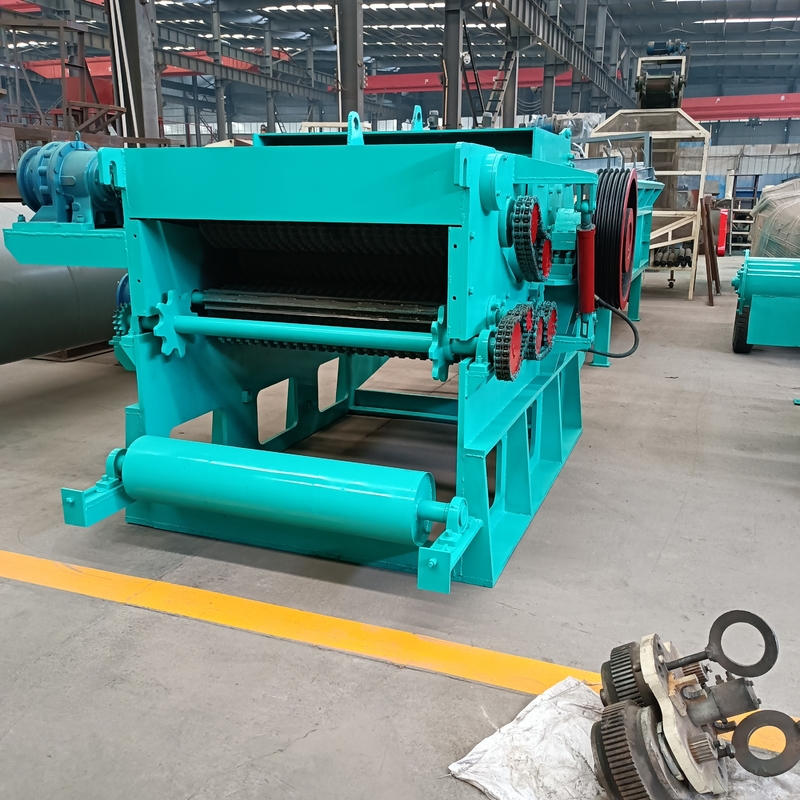

Wood Chip & Dust Making Machines is one kind of special equipment for producing wood chips, widely used in the raw material preparing process in the factories of flakeboard, fiberboard, papermaking and wood chips making plant. Drum wood chipper is the best equipment for factory’s laboratory preparing material.
The design of this drum wood chipper avoids making the foundation. And it is suitable for many different conditions, it does not influence by weather and other external conditions. Wood Chip & Dust Making Machine has a large capacity and works reliable, only one or two workers can control the machine.
Wood Chip & Dust Making Machines Technical Details:
| MODEL | HY216 | HY218 | HY2113 |
| FEEDER SIZE(mm) | 500*270 | 700*300 | 700*450 |
| QTY OF FLY KNIVES(PCS) | 2 | 2 | 3 |
| SPEED OF KNIVES RUNNIN(R/M) | 650 | 650 | 500 |
| MAX DIAMETER FEEDER(mm) | 230 | 300 | 450 |
| WOOD CHIPS SIZE ABOUT(mm) | 30 | 30 | 38 |
| CAPACITY(T/H) | 7-8 | 12-15 | 15-30 |
| MAIN POWER(kw) | 55 | 110 | 220 |
| FEEDER POWER(kw) | 3-4 | 4-5 | 7.5*2 |
| OIL PUMP POWER(kw) | 1.5*1 | 1.5*1 | 3*1 |
| WEIGHT(kg) | 4070 | 7000 | 11840 |
| MACHINE OUTER SIZE(mm) | 1800*1900*1210 | 2200*2150*1500 | 3670*2517*2050 |
