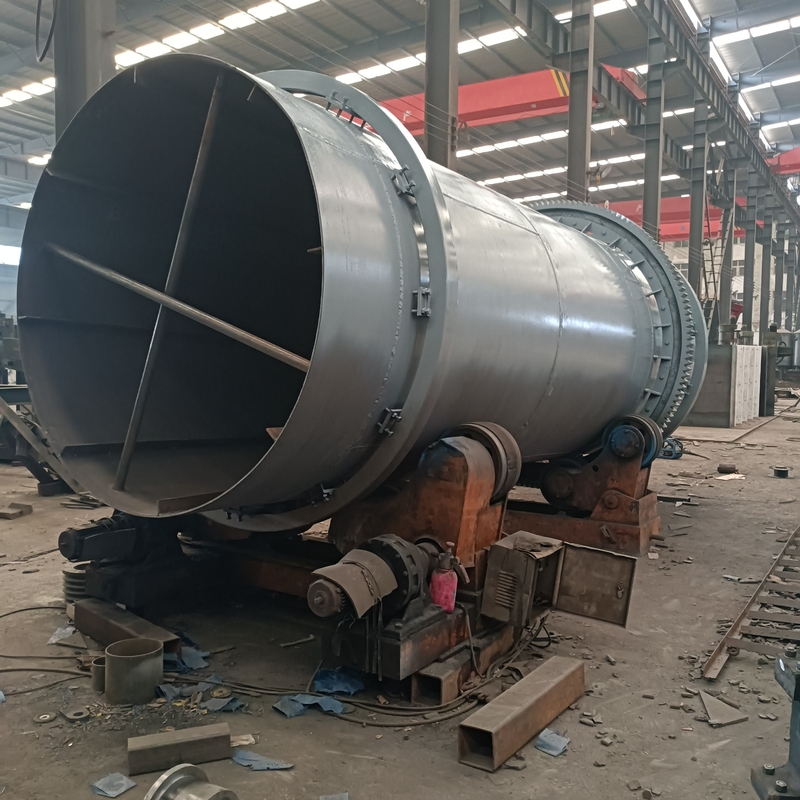

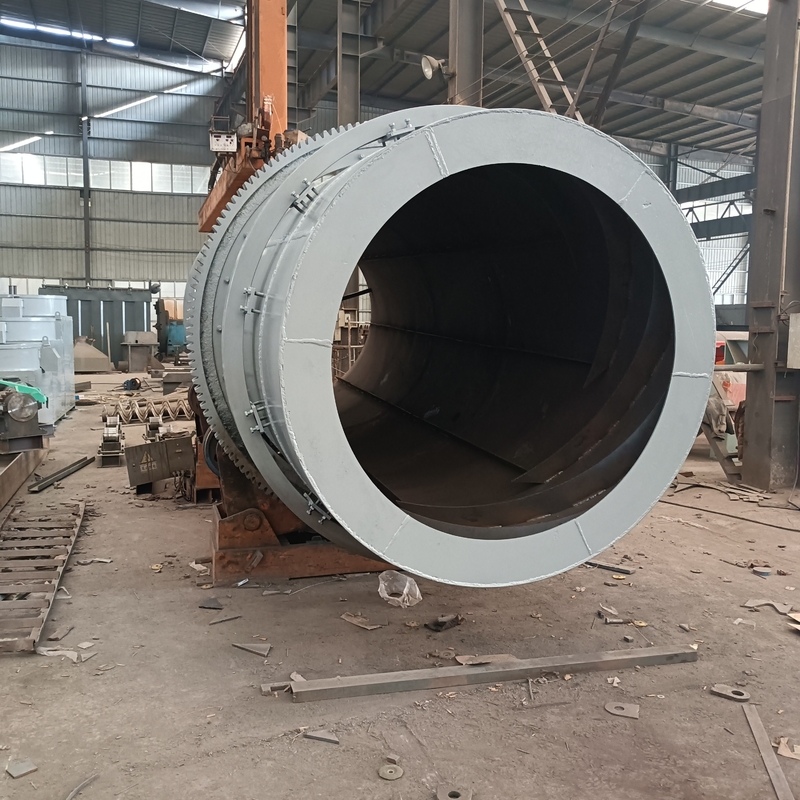

Name: Customized Rotary Drum Granulator For Fertilizer Production Line 5.5kW
Brand: Zhengzhou Hengyang Industrial Co., Ltd
SKU: HC-327
Price: Negotiable USD
Availability: InStock

Home > products > Compost Fertilizer Plant >

Customized Rotary Drum Granulator For Fertilizer Production Line 5.5kW

Fertilizer Production Line Rotary Drum Granulator

Customized Rotary Drum Granulator

5.5kW Rotary Drum Granulator

Place of Origin:

China

Brand Name:

Hengyang

Certification:

ISO9001

Model Number:

HC-327

Request A Quote

Customized Rotary Drum Granulator For Fertilizer Production Line 5.5kW

Product Details

Name:

Rotary Drum Granulator

Function:

Granulator

Color:

Customized

Capacity:

5-20t/h

Condition:

New

Payment & Shipping Terms

Minimum Order Quantity

Price

5200-69120USD/set

Packaging Details

Negotiated

Delivery Time

20-60 days

Payment Terms

T/T

Supply Ability

300Sets/month

Bentonite Poultry Organic Fertilizer Pan Disc Chicken Manure Granulator Pellet Machine

Get Best Price

ISO9001 Compost Fertilizer Plant Disc Pan Granulator 0.5T / H

Get Best Price

20t / H Fan Disc Granulation Pan Pellet Making Machine 1000mm

Get Best Price

Customized Rotary Drum Granulator For Fertilizer Production Line 5.5kW

Get Best Price

86-371-56611369

Contact Now

Product Description

Drum granulator is a kind of fertilizer granulator machine can make the material into a specific shape. Drum granulator is one of the key equipment of the compound fertilizer industry. It is suitable for large-scale production of cold &hot fertilizer granulation line and high and low concentration compound fertilizer line. Main work method for aggregate wet granulation, through a certain amount of water or steam, the basis for fertilizers in the cylinder body after full wet chemical reaction, in a certain liquid under the conditions of the rotating cylinder with campaign, reunion between particles to produce extrusion pressure of material into a ball.

Drum cylinder adopt special rubber lining or acid stainless steel plate, has realized the automatic except scar, tumor, cancel the traditional scraper device. The machine has the characteristics of high ball strength, good appearance, corrosion resistance, wear resistance, low energy consumption, long service life, easy operation and maintenance.

Drum granulator, machine ventilation with steam, gas, or adding phosphoric acid or ammonia nitrogen and phosphorus ammonia solution slurry, coarse whiting slurry, within the cylinder with the fertilizer granulation process of chemical reaction and heat; Or cold added a small amount of moisture content of compound fertilizer granulation process. The need of granulating material through the rotation movement of the cylinder, the cylinder didn't scroll spin, sticking together under a certain humidity, temperature, into a ball, complete system process.

Technical Details:

Model	Barrel				Power	Capacity	Dimensions L× W ×H	Weight
	Inclination	Internal diameter	Length	Rotation speed	Power	Capacity	Dimensions L× W ×H	Weight
	0	m	m	r/min	kW	t/h	m	t
ZG1.2×4	2-2.5	1.2	4	17	5.5	1-3	4.6×2.2×2.0	2.7
ZG1.4×5	2-2.5	1.4	5	14	7.5	3-5	4.8×2.8×2.3	8.5
ZG1.6×6	2-2.5	1.6	6	11.5	11	5-8	7.0×3.2×3.1	12.0
ZG1.8×7	2-2.5	1.8	7	11.5	15	8-10	8.3×3.5×3.3	18.5
ZG2.0×8	2-2.5	2.0	8	11	18.5	10-15	9.1×3.6×3.5	22.0
ZG2.2×8	2-2.5	2.2	8	10.5	22	15-20	9.5×4.4×3.9	28.0
