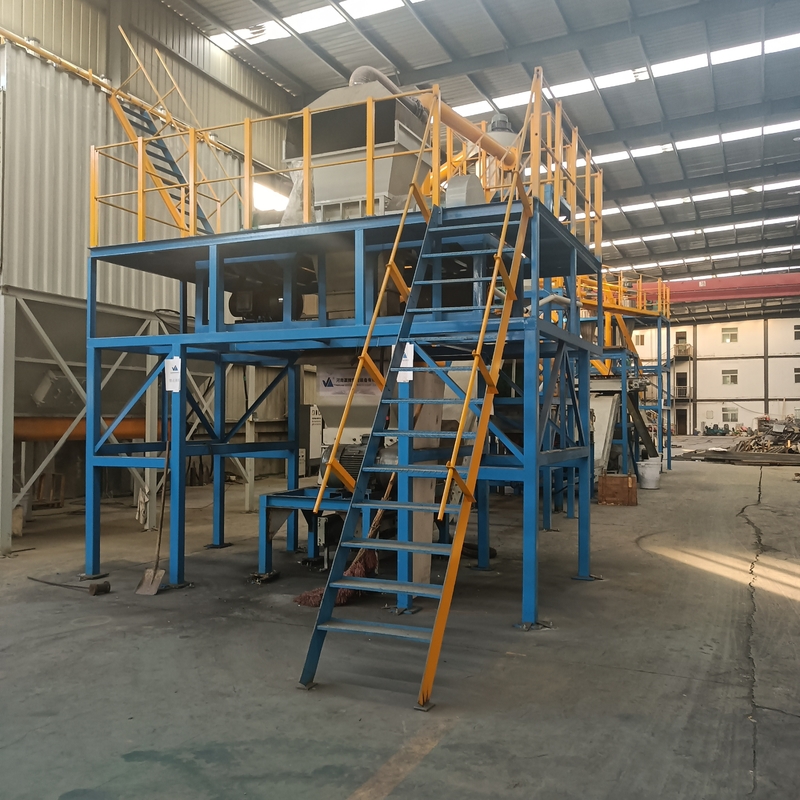

HC-263 Waste Sorting Recycling Machines Lithium-Ion Battery

1. A Significant Increase in the Demand for Lithium-Ion Battery Recycling Machines

A significant number of waste batteries are produced due to the quick growth of lithium-ion batteries and the sudden rise in market demand, and some waste is also produced during the battery production process. Recycling such garbage in an eco-friendly, cost-effective, and efficient manner can not only eliminate the risks it poses to the environment and public health, but it can also supply raw materials for the manufacture of lithium-ion batteries, which will further cut down on resource use.

In order to effectively recycle the waste lithium-ion batteries, unique lines and sets of equipment for crushing and sorting waste lithium-ion batteries with advanced technologies are being developed and built.

2. Challenges of Recycling Waste Lithium-ion Batteries

Lithium-ion batteries contain metals such as nickel, cobalt, manganese, and lithium, as well as electrolytes and organic solutions. Improper disposal will not only cause major harm to the environment but also cause a great waste of resources. Due to the chemical reaction inside the battery and the increase in the ambient temperature, thermal runaway can easily lead to safety hazards such as combustion, fire, and explosion. It will pollute the environment and the human body with fluorine, organic matter, and heavy metals. As a result, it is more challenging to dispose of spent lithium-ion batteries.

• One of the challenges is that there is no global standard for recycling lithium-ion batteries.
• Another problem is that the composition of lithium batteries is not the same and the percentage of components is also extremely variable. It is more challenging to directly recover materials with high added value, such as positive and negative electrode materials.

3. Recyclability of Waste Lithium-ion Batteries

The disposal process of waste lithium-ion batteries is relatively complicated, and it is necessary to deeply study the disposal process and the special equipment configuration under specific process conditions to make the complete set of equipment more green and environmentally friendly. Hengyang has created a comprehensive waste lithium-ion battery disposal process plan as well as a comprehensive set of trash lithium-ion battery crushing and sorting equipment. Almost 95% of the valuable components of spent lithium batteries may be retrieved using our procedure and equipment. These Includes separating the outer casing, copper, aluminum, black powder, etc.

4. Lithium-ion Battery Recycling Facility Equipment
   • Shredder: The system is used to tear large used lithium batteries or some modules into small pieces for subsequent equipment to continue processing.
   • Granulator: This machine shreds old batteries into smaller pieces, making them easier to transport.
   • Pyrolysis system: This technique is used to remove diaphragms, electrolytes, organic materials, and other contaminants.
   • Separator: This machine separates various materials found in old batteries, such as copper.
   • Separation system: in various process linkages, separate black powder, shell, copper-aluminum combination, etc.
   • Stripping system : The stripping system simultaneously separates the copper-aluminum mixture, the black powder, and the black powder on the separated copper-aluminum mixture.
   • The tail gas treatment system: the pyrolysis tail gas is treated to meet environmental protection standards before being discharged.

5. Innovative Lithium-ion Battery Recycling Designs

The new Waste Lithium-ion Battery Crushing and Sorting System adopts a dry treatment method for waste ion batteries. The entire procedure entails high-efficiency stripping, gen-controlled charged crushing, oxygen-controlled pyrolysis, sorting, and exhaust gas treatment for environmental protection.

Are you looking for a top-quality lithium-ion battery recycling machine? Here come the advanced features:

• Low-cost and high-efficiency: There is no need to discharge before recycling.

Typically, used lithium-ion batteries store or retain electrical energy. To maintain the safety of the crushing process, salt water or load discharge is typically employed, resulting in greater difficulties in the treatment of the discharge liquid, incomplete load discharge, and a lengthy period. Which leads to higher disposal costs and backward economic benefits.

The crushing and sorting equipment for Hengyang waste lithium-ion batteries uses an innovative design so that the lithium battery does not need to be discharged before crushing and that the entire crushing process is safe and stable, completely obstructing the possibility of explosion, combustion, and the diffusion of harmful gases. So that the entire crushing procedure is safe, effective, and cost-effective.

• High Recovery Rate of 95%

Neither the comprehensive recovery rate nor the quality of black powder obtained through the entire disposal procedure is less than 95%.

• Diversification

The New Lithium Ion (li-ion) Battery Recycling Machine is a type of recycling machine that is capable of full selection. It recycles different kinds of lithium batteries and can be used by many companies, such as those that make cell phones, laptops, and other electronic devices.

Lithium batteries are packaged in cylindrical, square, soft-pack, and hard shells. Ternary batteries include lithium iron phosphate, lithium cobalt oxide, and lithium manganate, among others. Hengyang has developed a complete set of equipment for crushing and sorting used lithium-ion batteries, which can be used to get rid of all of the above types of batteries at once.

6. Waste Lithium-ion Battery Recycling Line Specifications
   • Maximum capacities of 1 t/h, 1.5 t/h, and 2 t/h
   • Dimension:
     LWH (minimum): 50000mm, 12000mm, 6500mm
     Power: approximately 1200kW
   • The maximum size of a lithium battery (LWH) is approximately 500 mm x 300 mm x 200 mm while meeting the weight requirement of 5 kg.
   • Recovery Rate of Black Powder: Approximately 95%
   • Recovery Rate of copper foil: Approximately 90%
   • Recovery rate of aluminum foil: Approximately 90%.
   • Outer casing recovery rate: approximately 90%
   • Equipment Footprint: The minimum equipment footprint (L x W x H) is 80000 mm x 15000 mm.

7. Recycling Process of Lithium-ion Batteries

Hengyang waste lithium-ion battery crushing and sorting equipment employs a full-component, high-efficiency clean recovery process technology. This complete set of equipment can meet the centralized disposal of lithium-ion batteries of different systems and specifications to the greatest extent.

The use of oxygen-controlled charged crushing technology in a protected atmosphere overcomes the environmental pollution problems caused by the typical discharge crushing process's extended duration and electrolyte leaking from damaged batteries. Following crushing, the product's particle size is uniform, the material is loose, and the wrapping phenomenon is absent.

Under a protective atmosphere, the adopted oxygen-controlled pyrolysis technology can select the process mode of retaining or pyrolyzing the diaphragm. By pyrolyzing the separator, the electrolyte and binder molecular chains can be completely broken, offering a pretreatment solution for further process requirements.

To meet the necessary emission limits, the pyrolysis gas is collected in a systematic way, entirely catalytically oxidized, and then fully burned.

The pyrolyzed material is sorted and stripped. It is possible to obtain valuable metals such as copper, aluminum, shell, and high-quality black powder.

8. A New Development Focus on the Lithium Ion Battery Recycling Business

The Li-ion battery recycling business is profitable since many companies have begun to employ this type of battery in their products. It is also a highly successful business strategy, as demand for lithium-ion batteries is increasing and is predicted to increase more in the next few years.

Lithium batteries are widely used in electric vehicles and electronic equipment. In recent years, the global demand for lithium batteries has grown substantially. However, the environmental damage caused by lithium batteries is increasing. Therefore, it is necessary to recycle and reuse these old lithium batteries, which has turned into a new area of development for many factories.
