Place of Origin:
China
Brand Name:
Hengyang
Certification:
ISO9001
Model Number:
HC-149

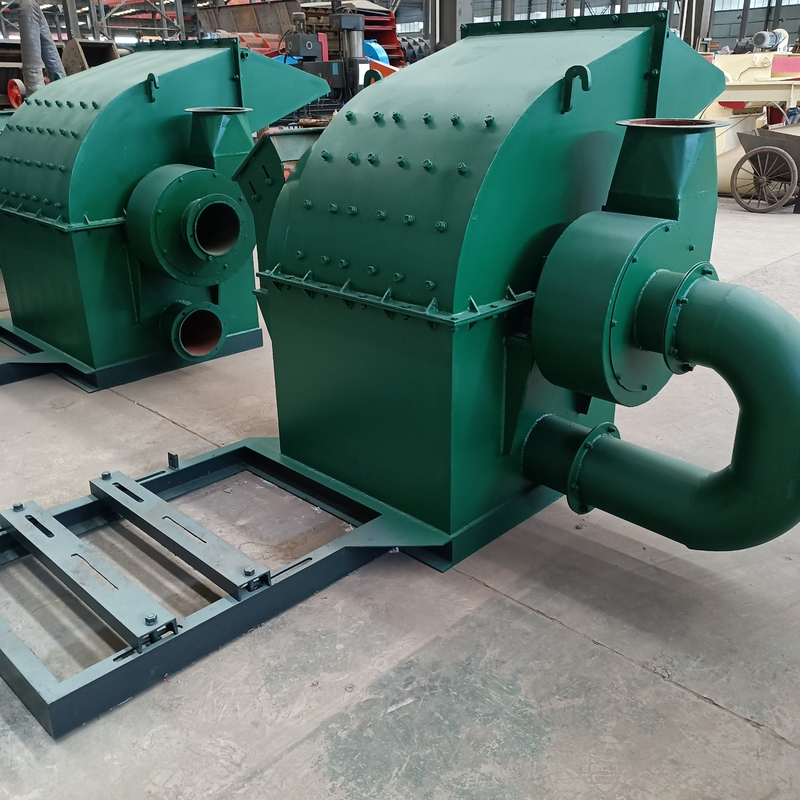

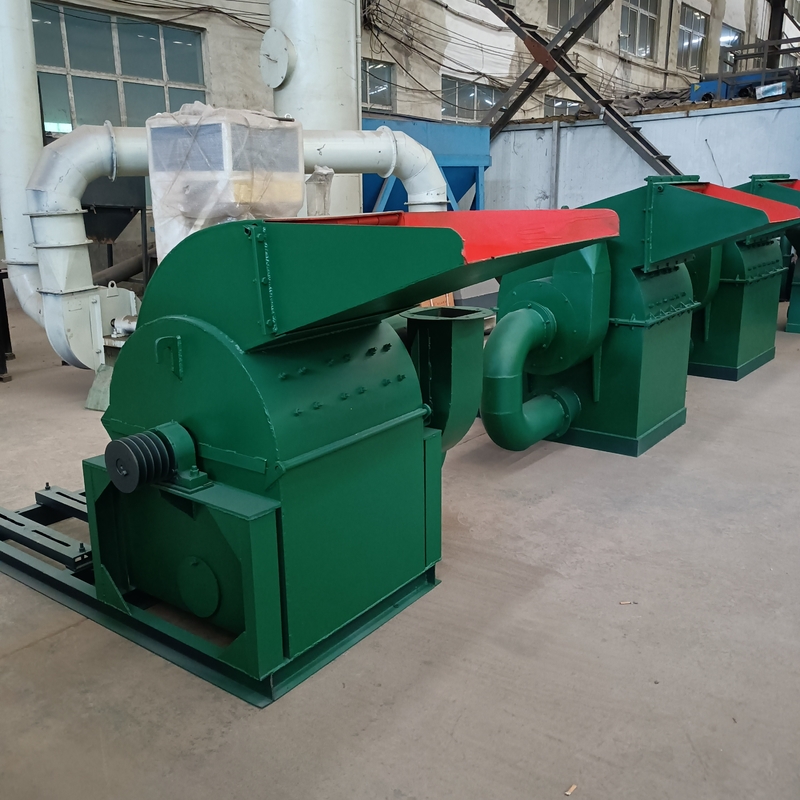

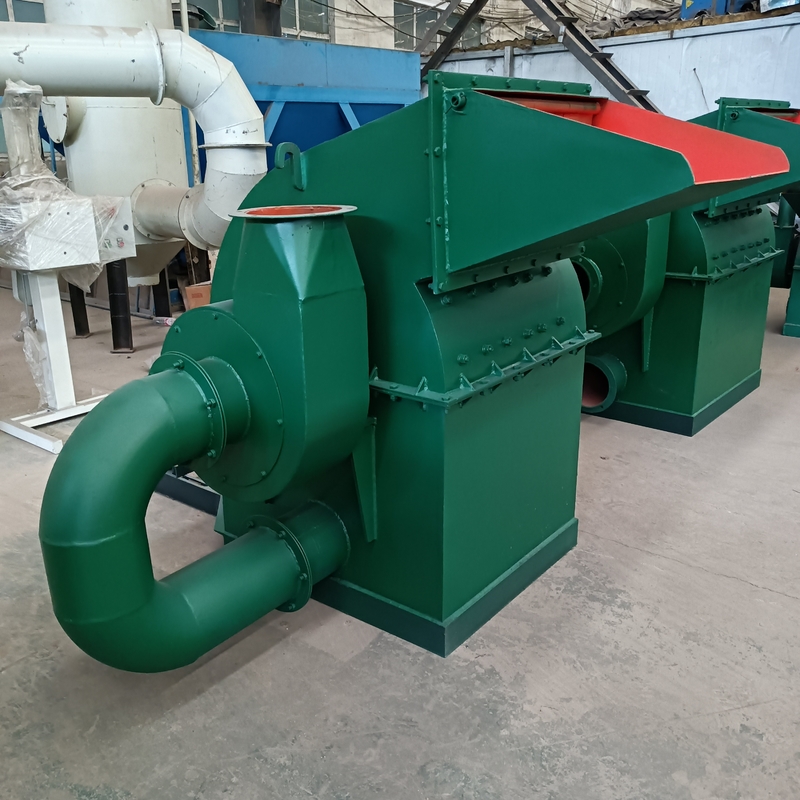

Wood crusher machine (also called: wood chip crusher, sawdust crusher) is a special equipment for wood crushing series invented by our company after years of research and design according to the needs of industrial production in China.Due to its reasonable design, compact structure, safety, durability and high production efficiency, it is effective after being promoted and used.
The whole set of equipment is driven by only one motor, with low noise, simple structure, compact arrangement, low price, stable operation, low energy consumption, high output, good finished product quality and low processing cost.
The wood crusher uses blade cutting and high-speed airflow impact, colliding double pulverizing function in one, and can complete the micro-material sorting process at the same time
Technical Details:
| Model | Model 600 | Model 800 | Model 1000 | Model 1300 | Model 1500 |
| Power(Kw) | 30/37 | 55 | 75 | 90 | 110 |
| Capicity(kg/h) | 1000-2000 | 2000-3500 | 4000-5000 | 5000-8000 | 6000-9000 |
| Blade number(slice) | 40 | 56 | 64 | 72 | 88 |
| Area covered(m2) | 7 | 9 | 12 | 14 | 16 |
| Size(mm) | 2400*1600*1250 | 2800*2000*1500 | 3000*2200*1550 | 3200*2400*1680 | 3500*2400*168 |
Final Product:
