Place of Origin:
China
Brand Name:
Hengyang
Certification:
ISO9001
Model Number:
HC-148

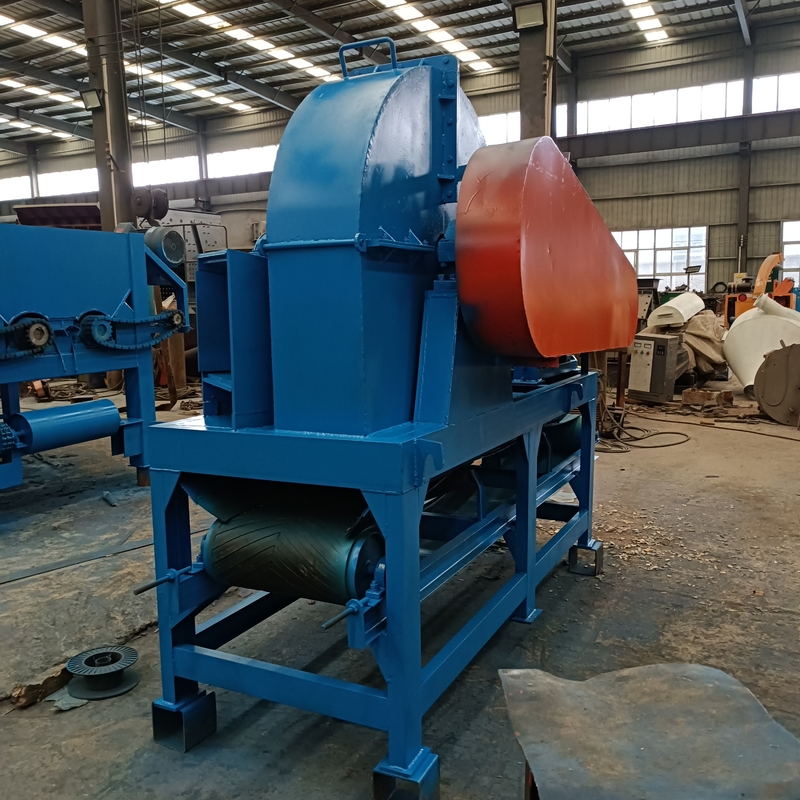

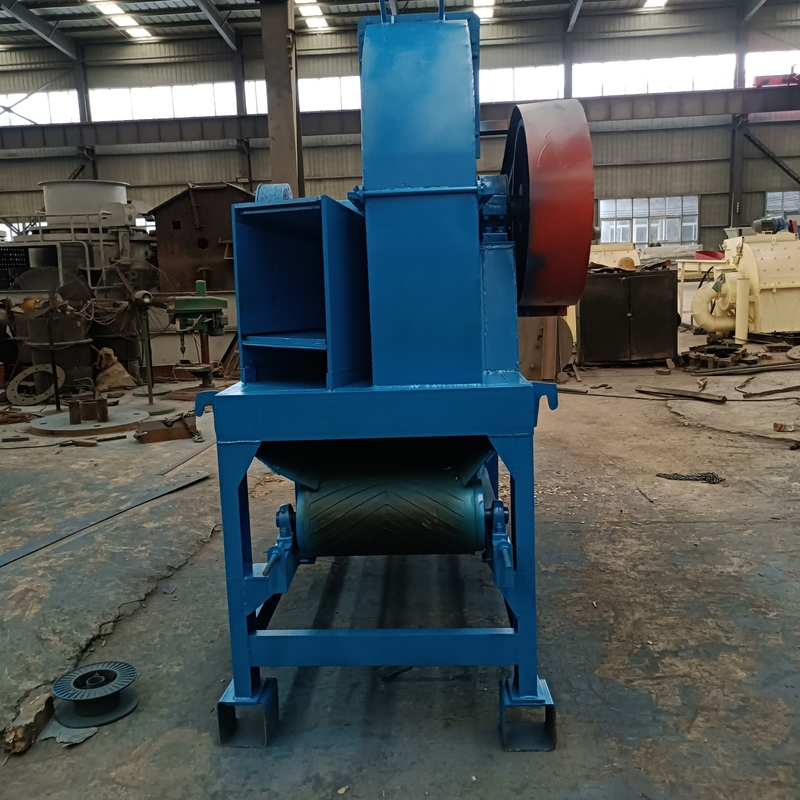

Wood Chipper Shredder Machine Chip cutting crusher is suitable for paper mills, power plants, particleboard mills, feeders and so on. Wood shredder can crush bamboo, wood blocks, logs, weeds, straw and other raw materials. Easy to use, simple operation, low energy consumption.
Technical Details:
Model | 400 | 600 | 850 | 1000 | 1300 | 1500 |
Capacity | 3t/h | 3t/h | 5t/h | 8t/h | 10t/h | 12-15t/h |
Power(KW) | 18.5 | 22 | 37 | 55 | 75 | 110 |
Inlet dimension | 100mm | 150mm | 230mm | 270mm | 300mm | 350mm |
The blade number | 3 | 3 | 4 | 6 | 6 | 6 |
weight | 150kg | 600kg | 700kg | 1000kg | 2000kg | 3000kg |
Speed rpm | 1200 | 1100 | 900 | 850 | 750 | 600 |
Size | 1.5*0.6*0.8m | 1.5*0.7*1m | 1.5*1*1.2m | 1.6*0.7*1.2m | 1.8*1*1.2m | 1.8*1.3*1.2m |
Working Prinpile:
Wood shredder chipper machine is mainly composed of host, coupling, bottom frame, motor, frame, cutter head, feed port, cover shell, electronic control system and other parts, which the host of the chipper is composed of cutter head, upper and lower cover shell, feeding port and discharge port and other parts.
