Place of Origin:
China
Brand Name:
Hengyang
Certification:
ISO9001
Model Number:
HC-147

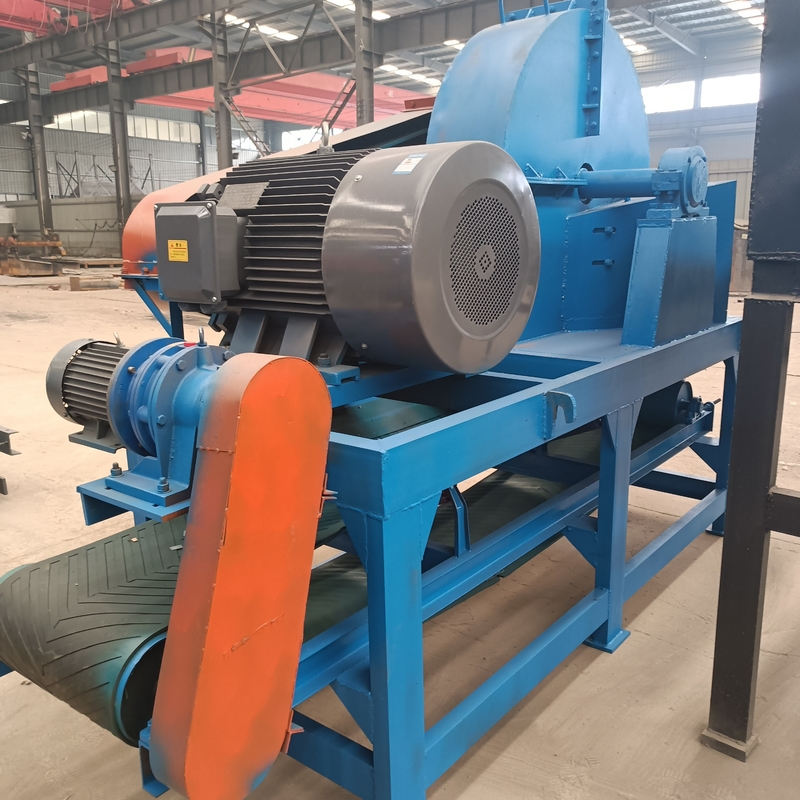

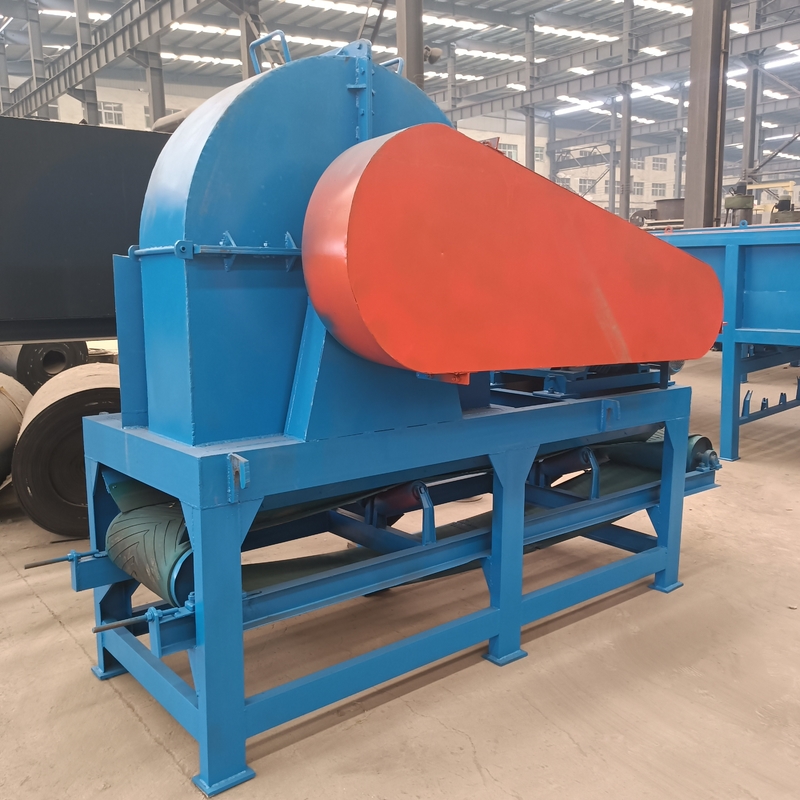

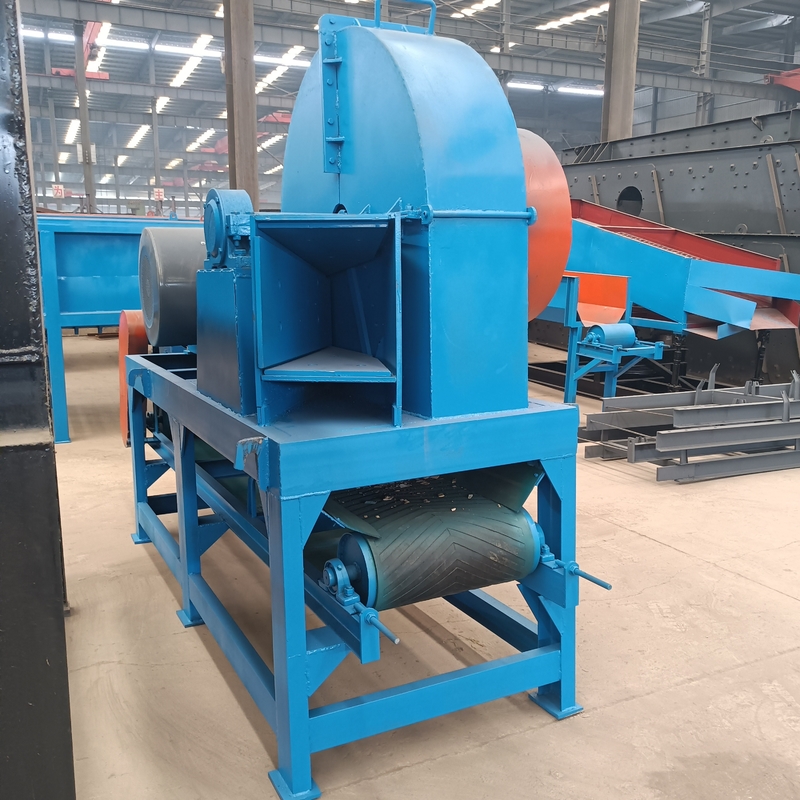

Mini Wood Chips Crusher is also called wood slicer machine, belonging to one of the series of wood processing equipment. Widely used in textile,paper, pulp, wood-based panel and other industries in the production process of material preparation section, according to different types can be divided into disk wood chipper machine and drum wood chipper machine. Comprehensive research and development with high efficiency, environmental protection, energy saving as one of the new chipper equipment.
Technical Details:
|
Model
|
400
|
600
|
850
|
1000
|
1300
|
1500
|
|
Capacity
|
3t/h
|
3t/h
|
5t/h
|
8t/h
|
10t/h
|
12-15t/h
|
|
Power(KW)
|
18.5
|
22
|
37
|
55
|
75
|
110
|
|
Inlet dimension
|
100mm
|
150mm
|
230mm
|
270mm
|
300mm
|
350mm
|
|
The blade number
|
3
|
3
|
4
|
6
|
6
|
6
|
|
weight
|
150kg
|
600kg
|
700kg
|
1000kg
|
2000kg
|
3000kg
|
|
Speed rpm
|
1200
|
1100
|
900
|
850
|
750
|
600
|
|
Size
|
1.5*0.6*0.8m
|
1.5*0.7*1m
|
1.5*1*1.2m
|
1.6*0.7*1.2m
|
1.8*1*1.2m
|
1.8*1.3*1.2m
|
