Place of Origin:
China
Brand Name:
Hengyang
Certification:
ISO9001
Model Number:
HC-146

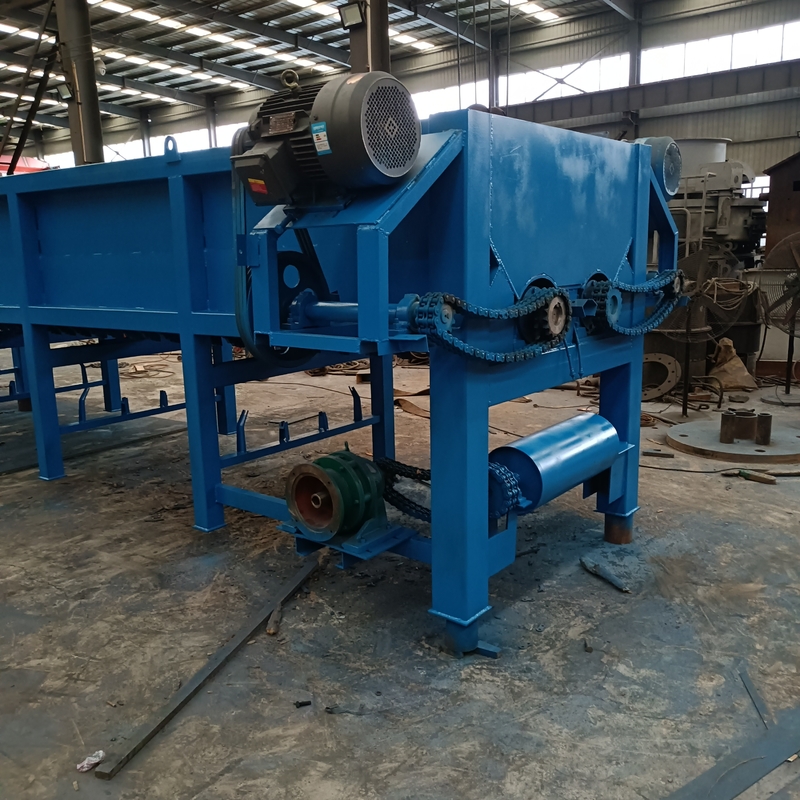

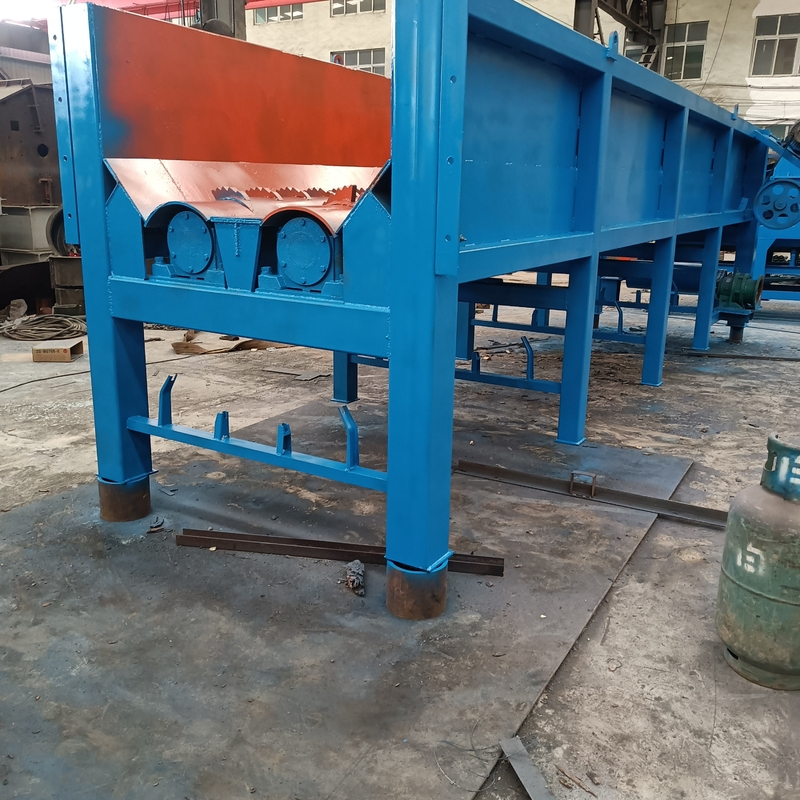

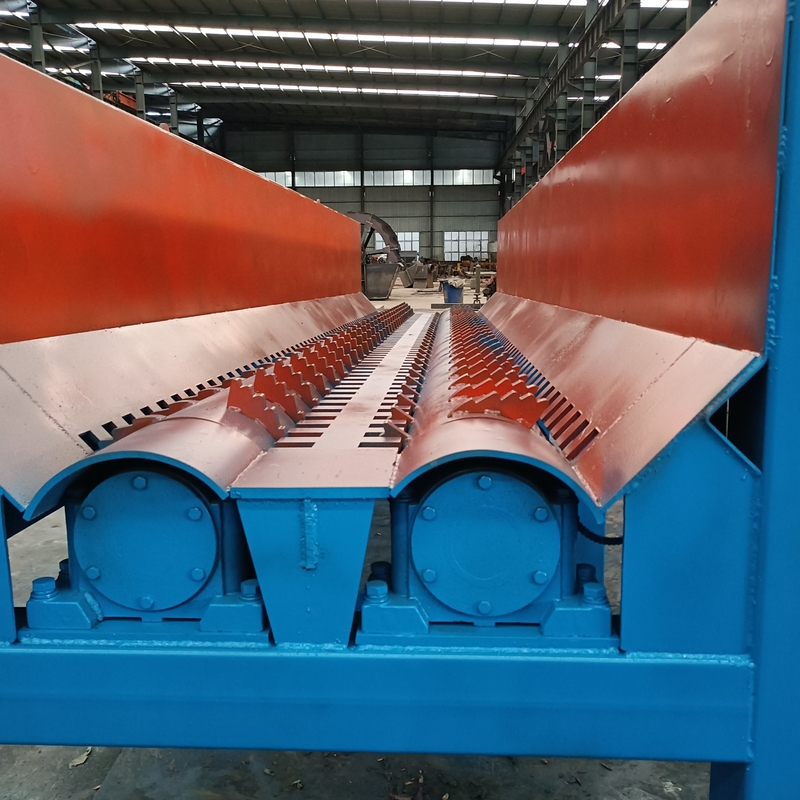

Bag openers working principle is based on squeezing and ripping the waste between knives located on a rotating drum and a set of movable knives. The heavy-duty chain conveyor located in the feeding section allows both dosing the material and storing material for a time interval. Another advantage of the bag openers is, the machine does not shred the waste so, recyclable quantity does not affected by the machine. We provide bag openers in various capacities based on your demands.
Technical Details
| HY020 | HY030 | |
| Capacity | 20 tons/h (@350 kg/m³) | 30tons/h (@350kg/m³) |
| Rotor | 3500mm | 4650mm |
| Rotor Diameter | Ø 400×3500 | Ø 500×4650 |
| Rotor Rotation speed | 33 rpm | 33 rpm |
| Hydraulic Motor | 5.5 kW*2 | 7.5 kW*2 |
| Belt Conveyor | B500*3500 3KW | B500*3500 3KW |
| Chute Conveyor Motor | 0.55 kW | 0.55 kW |
| Bunker Volume | 5.5 m³ | 9 m³ |
