Place of Origin:
China
Brand Name:
Hengyang
Certification:
ISO9001
Model Number:
HC-239

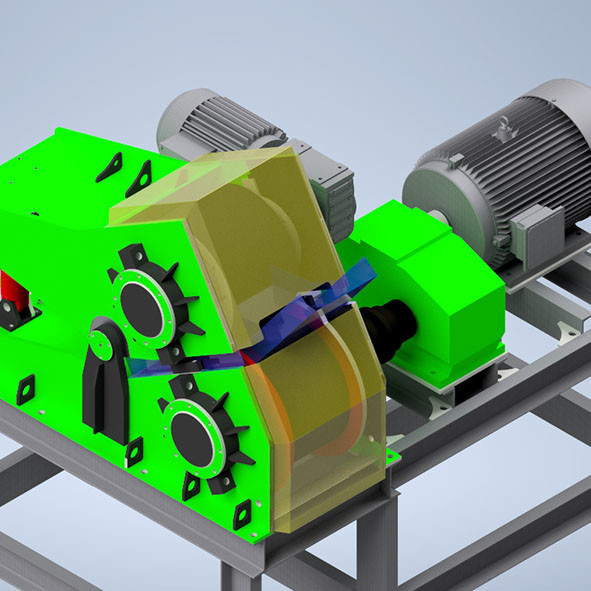

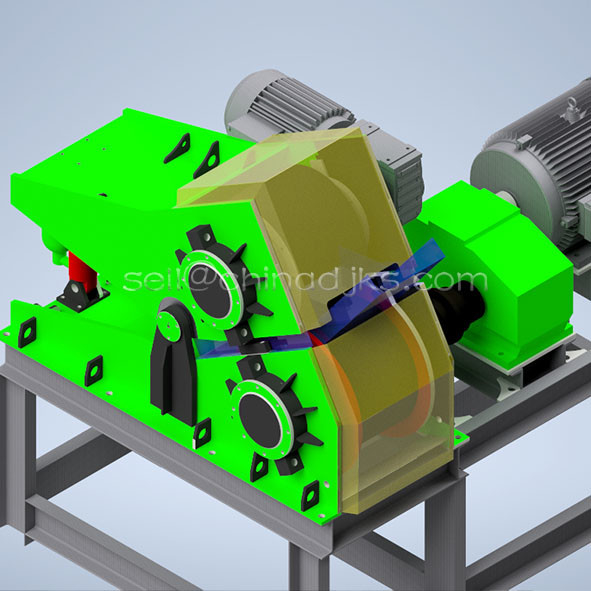

High Pressure Roller Mills Principle of grinding
The working principle of the High Pressure Roller Mill is two rolls, which are counter rotating at the same circumferential speed. One roll is connected to a hydraulic system which creates a radial force.
The feed to the rolls creates a so called "bed" of material in the roll gap. Within this material bed, the product is intensely compacted and the strain that the single particles have on each other effects them being ground.
Materials with good flowing properties and high bulk densities need just the gravity flow to feed the machine. Materials which are light and have poor flowing properties are fed into the roll gap by a pre-densifying screw which moreover increases the mill's efficiency in a significant way.
High Pressure Roller Mills Typical applications
Samples: ·
Alumina ·
Blast-furnace slag ·
Clinker · Coke (wet) ·
Corundum ·
Dolomite ·
Feldspar ·
Fireclay ·
Fused magnesite ·
Limestone ·
Magnesite ore ·
Metal oxides ·
Ores ·
Pegmatite ·
Quartz, silica ·
Silicon ·
Silicon carbide ·
Technical ceramics ·
Titanium dioxide ·
Wollastonite
High Pressure Roller Mills Main Technical Details:
| Item | Detail Parameters | ||||||
| Model | HYY40 | HYY60 | HYY100 | HYY150 | HYY200 | HYY300 | HYY400 |
| Feeding Sizes | ﹤25mm | ﹤35mm | ﹤35mm | ﹤35mm | ﹤35mm | ﹤35mm | ﹤35mm |
| Throughput | 20-45t/h | 40-65t/h | 60-105t/h | 100-155t/h | 150-205t/h | 200-305t/h | 300-400t/h |
| Roller Dimension | 600*400mm | 800*500mm | 1000*600mm | 1250*600mm | 1500*700mm | 1750*700mm | 2000*700mm |
| Driving Power | 55kw | 90kw | 132kw | 200kw | 250kw | 315kw | 400kw |
| Output Sizes | ﹤5mm | ||||||
| Applicator Materials | Cobbles, iron ore, glass, ceramic, brittle materials, etc | ||||||
| Moisture | ﹤10% | ||||||
| Working Bearing Protection | Full time (Auto-control) | ||||||
| Overload Protection | Hydraulic (Auto-adjustment) | ||||||
| Central Oil Injection | Central greasing system | ||||||
