Place of Origin:
China
Brand Name:
Hengyang
Certification:
ISO9001
Model Number:
HC-092

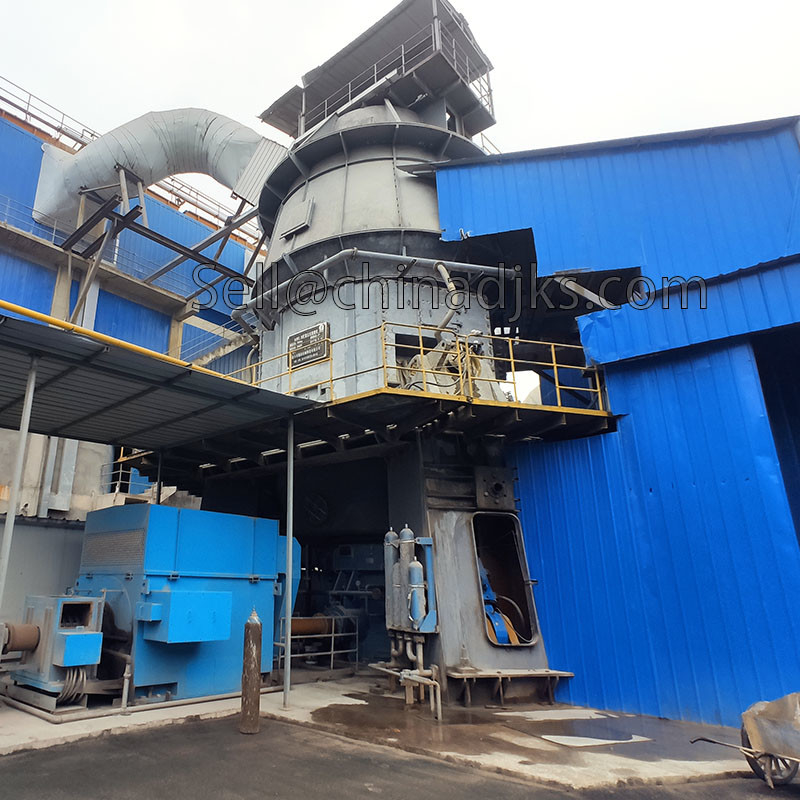

150TPH Vertical Mill For Non Metal Material Grinding
The vertical mill is mainly composed of powder concentrator, grinding roller device, grinding disc device, pressurizing device, reducer, motor, shell, etc. The separator is an efficient and energy-saving powder separation device. The grinding roller is a component used to roll and crush materials. The grinding disc is fixed on the output shaft of the reducer, which is the place where the grinding roller rolls materials. The pressurization device is a component that provides grinding pressure for the grinding roller and provides sufficient pressure to the grinding roller to crush materials. After being crushed by hammer crusher, the large material becomes smaller and is sent to the storage hopper by elevator, and evenly sent to the distribution board on the steering board through vibrating feeder and inclined feeding pipe. The grinding disc is driven by a motor through a reducer.
Vertical Mill Application:
cement, slag, cement clinker, raw coal and other raw materials
| Model | Grinding Disc Diameter | Roller Diameter | Roller Quantity | Power | Capacity |
| HYY46.41 | 4600mm | 2240mm | 2+2 | 3350kw | 105-150t/h |
