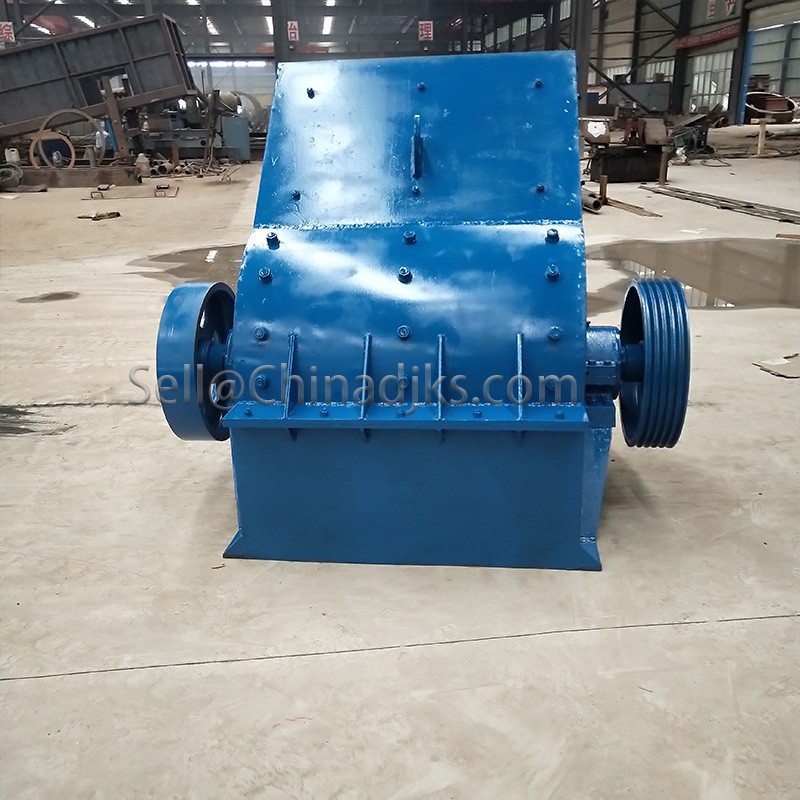

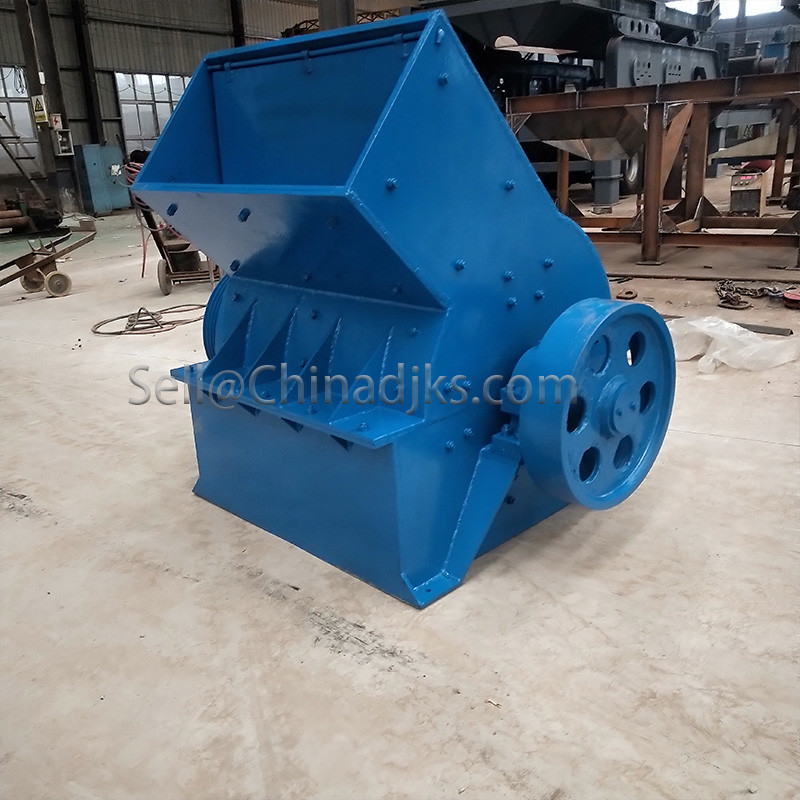

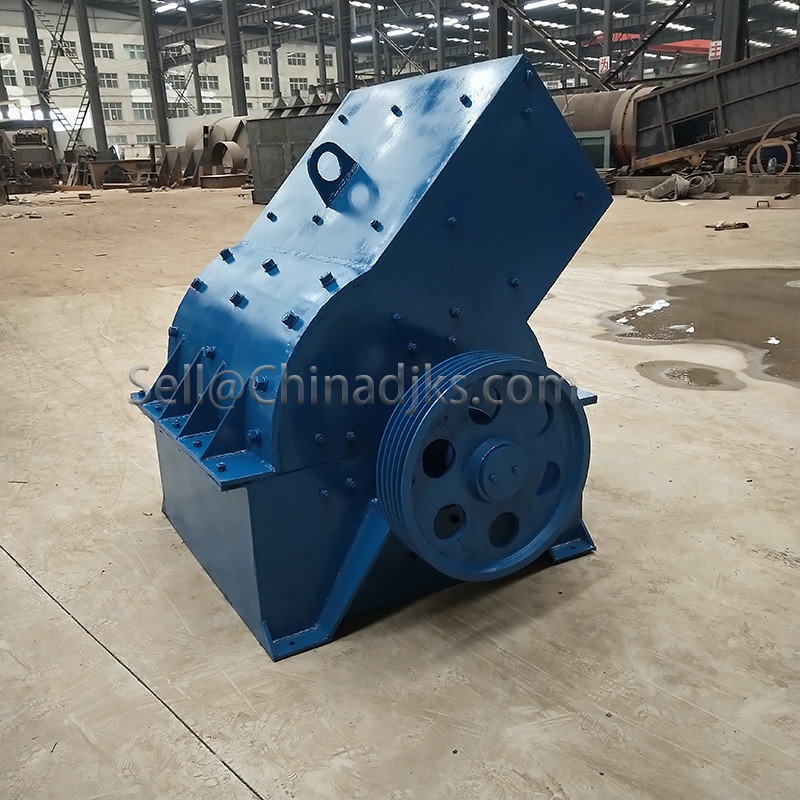

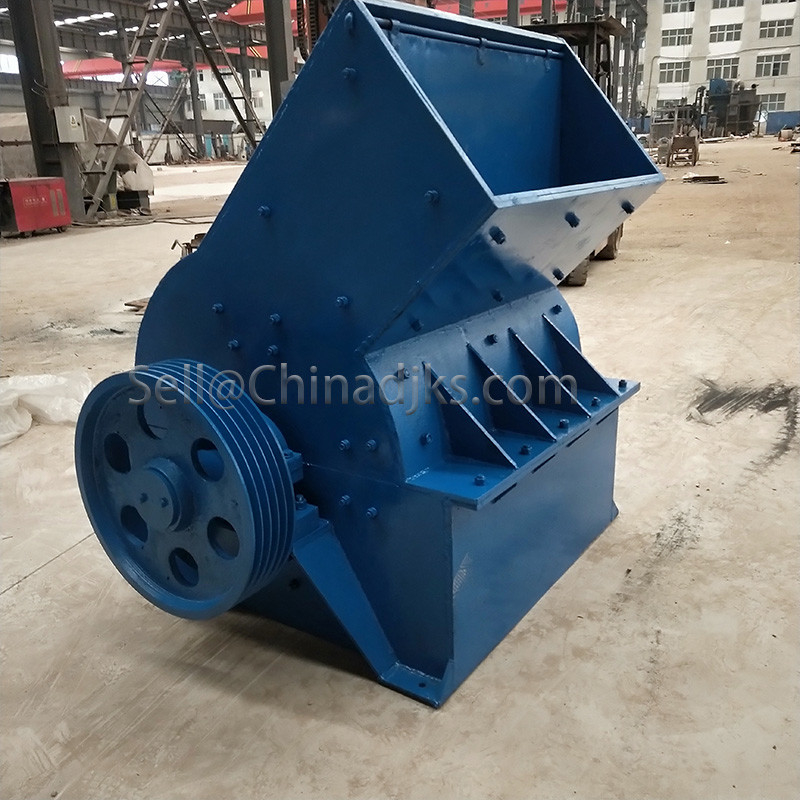

PC1000*1000 Hammer Crusher for Coal Crushing Industry
Types of hammer mill is mainly used for crushing medium-hard or brittle materials with hardness not more than 300Mpa and 15% moisture,such as coal, cement,gypsum,alumen,brick,tile,limestone,etc.It has the features of simple structure, big crushing ratio, high production efficiency, uniform particle size, etc. This equipment can be adjusted to reach various discharged granularity as the customers' requests.
Hammer crusher is the most common of stone crushing equipment. It is also called hammer mill. It has high production capacity, low energy consumption, simple structure, reliable quality, easy maintenance, etc.
Hammer Crusher Working principle
Motor drives the rotor quickly in the crushing cavity. Raw materials enter the crusher through the feeding inlet and are impacted, cut and ground by high-speed hammer heads. There is a grate under the rotor assemblly, so that materials with size smaller than the grate mesh will be screened out and others are left to be further hammered until they reach the standard size. The size of the final product can be adjusted by changing the grate, the gap between the rotor assemblly and the grate can also be adjusted according to different requirements.
Hammer Crusher Technical Details:
| Model | Input Size (mm) | Output Size (mm) | Capacity (t/h) | Power (kw) |
| PC400x300 | <100 | <15 | 5-10 | 11 |
| PC600x400 | <220 | <15 | 10-25 | 22 |
| PC800x600 | <350 | <15 | 20-40 | 55 |
| PC1000x1000 | <400 | <15 | 25-80 | 75 |
