Place of Origin:
China
Brand Name:
Hengyang
Certification:
ISO9001
Model Number:
HC-005

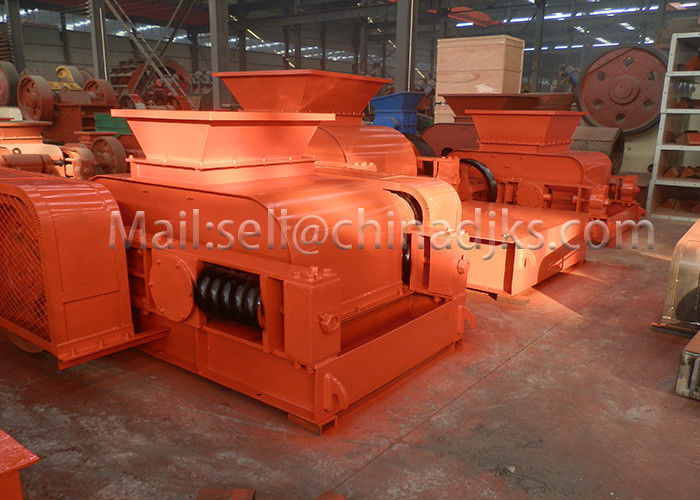

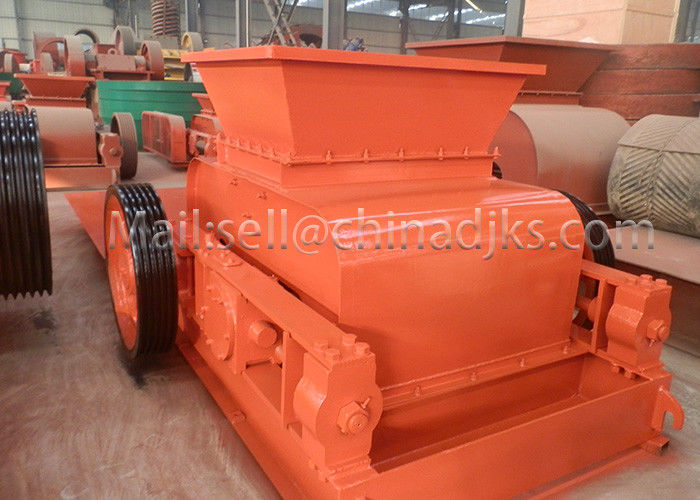

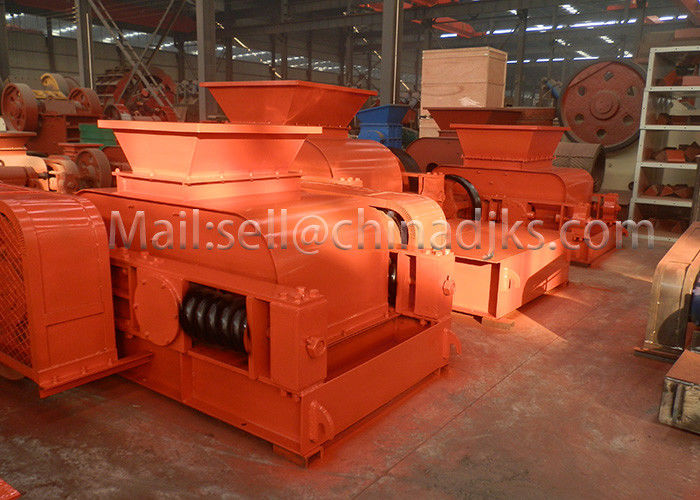

Double Tooth Roller Crusher For Coarse Ore Crushing
Double Tooth Roller Crusher Introduction
We all know that the toothed roller crusher belongs to stone crushing equipment just like gold jaw crushers, impact crushers, cone crushers, etc., also can crush different kinds of materials. Besides, the toothed roller crushers are one of the roller crushers, so there are another roller crushers named double roll crushers. The differences between them are the crushing parts, from which we’ll learn that the part of the toothed roller crushers is tooth-type bearing and the other is a roller.

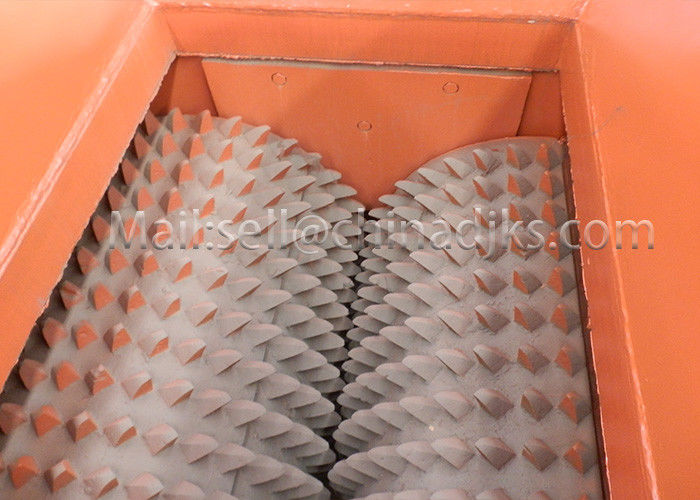

Tooth roller crusher /double Teeth roller coal crusher principle is the fuel enter from up and discharge directly from bottom outlet without secondary crushing To achieve the crushing purpose through crushing and screening by snap action between teeth the grain evenly over powder rate is very low and its broken particle size can be quickly adjusted by the screw.
They all have simple structures and great performances when process materials like coal gangue, raw coal, briquette, bluestone, pebbles, basalt, quartz, and other materials. Although the basic working principle is similar to other stone crushing machines, they still have different functions between them.
Double Tooth Roller Crusher Technical Details
| Model | Feed Size(мм) | Output Size(мм) |
Capacity (t/h) |
Motor Power(KW) |
| 4PG0404Ⅱ | ＜20 | 0.3-10 | 2-30 | 2×7.5 |
| 4PG0605Ⅱ | ＜30 | 0.3-15 | 5-60 | 2×22 |
| 4PG0806Ⅱ | ＜40 | 0.3-20 | 8-90 | 2×30 |
| 4PG0809Ⅱ | ＜60 | 0.3-20 | 12-120 | 2×37 |
| 4PG0812Ⅱ | ＜60 | 0.3-20 | 20-180 | 2×45 |
| 4PG1012Ⅱ | ＜80 | 0.3-30 | 30-220 | 2×55 |
| 4PG1212Ⅱ | ＜90 | 0.3-50 | 45-320 | 2×75 |
| 4PG1216Ⅱ | ＜90 | 0.3-50 | 55-400 | 2×90 |
| 4PG1218Ⅱ | ＜90 | 0.3-50 | 70-500 | 2×110 |
