Place of Origin:
China
Brand Name:
Hengyang
Certification:
ISO9001
Model Number:
HYL-016

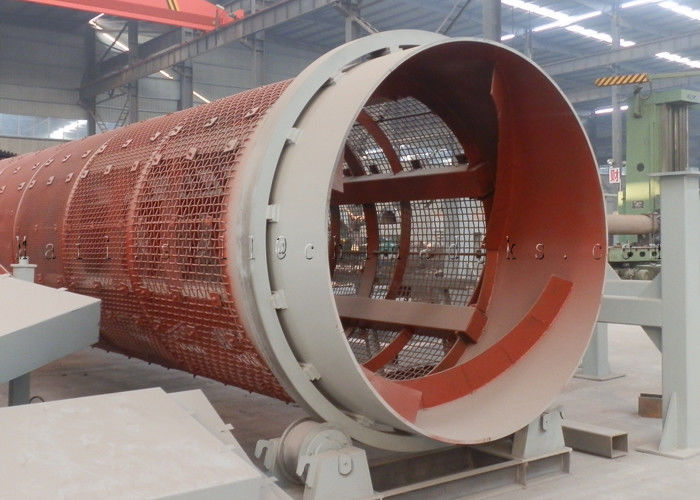

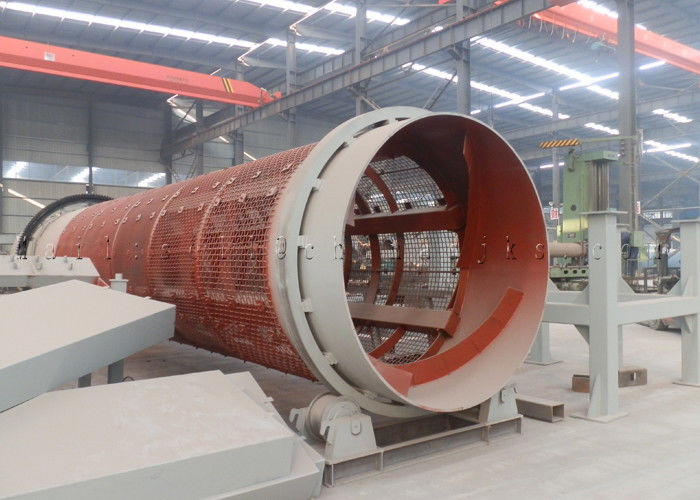

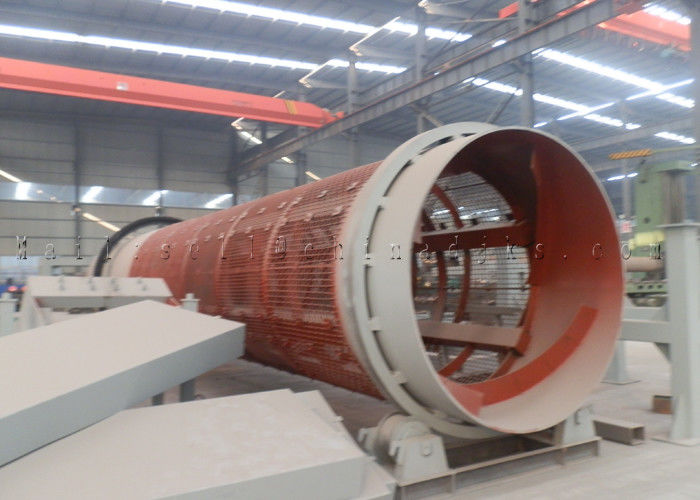

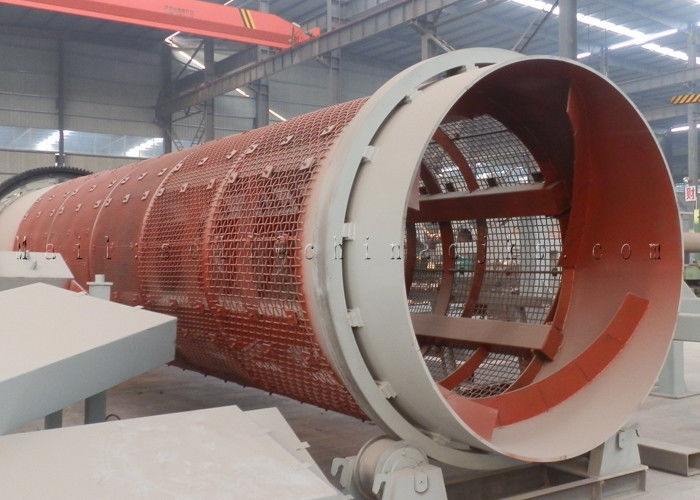

Coarse Ore /Rock Rotary Drum Washing Machine
Coarse Ore /Rock Rotary Drum Washing Machine is a New design, very different from conventional type stone or Rock washing machine. This machine is not only for separating dust with stones, and can also washing lump ore from mud. Cleaning efficiency can be up to 98%. Coarse Ore /Rock Rotary Drum Washing Machine can also do as wet process separating and Dry process separating.
We can design and manufacture according to customer's detailed requirement.
Coarse Ore /Rock Rotary Drum Washing Machine Features:
High efficiency, energy saving and extreme durability.
Can be driven by electric motor or hydraulic motor.
Coarse Ore /Rock Rotary Drum Washing Machine Specifications:
1. Cylinder inner with spiral inside;
2. Discharging size is larger;
3. Feeding size over 60mm
Coarse Ore /Rock Rotary Drum Washing Machine Technical Details:
| Model | Cylinder size (mm) | Feeding size (mm) | Rotary speed (r/min) | Water consumption(m3/h) | Capacity(t/h) | Motor power(kw) | Weight(t) |
| HYX1050 | Φ1000*5000 | ≥60 | 27.9 | 2 | 120 | 18.5 | 5.5 |
| HYX1260 | Φ1200*6000 | ≥60 | 27.6 | 3 | 150 | 23 | 6.8 |
| HYX1460 | Φ1400*6000 | ≥60 | 27.6 | 5 | 200 | 30 | 7.6 |
| HYX1570 | Φ1500*7000 | ≥60 | 21 | 6 | 220-250 | 37 | 11 |
| HYX2275 | Φ2200*7500 | ≥60 | 19 | 7.5 | 250-300 | 55 | 37 |
