Place of Origin:
China
Brand Name:
Hengyang
Certification:
ISO9001
Model Number:
HYL-015

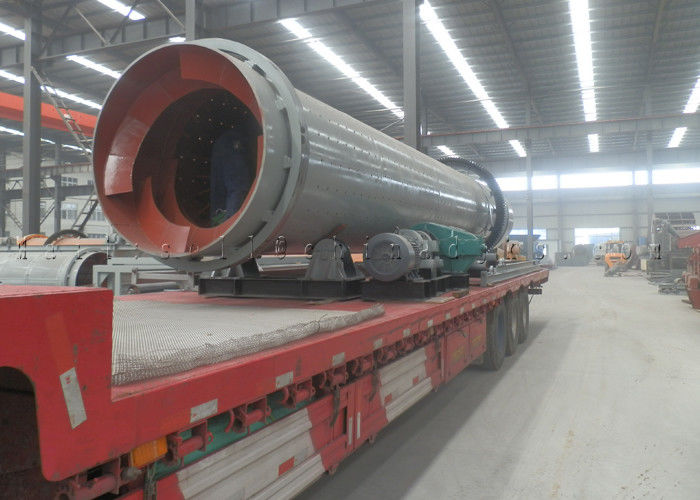

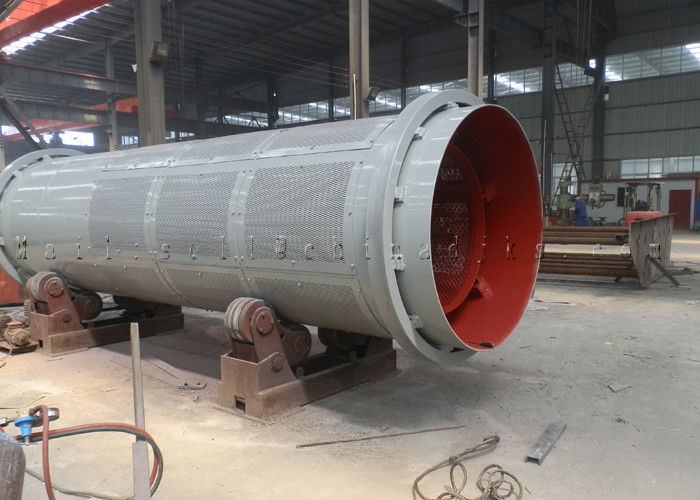

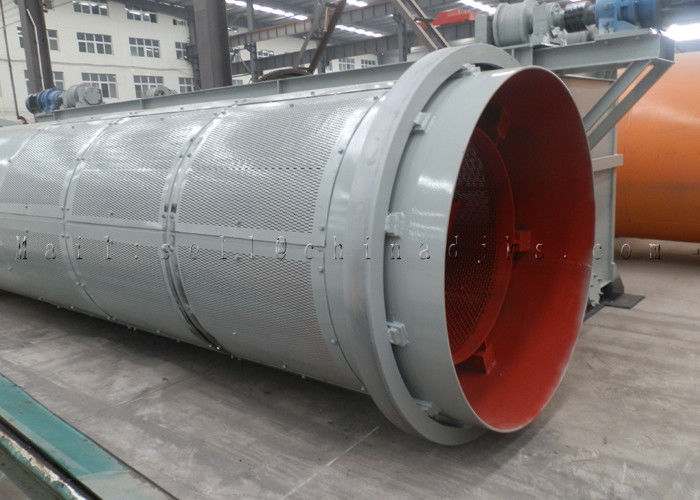

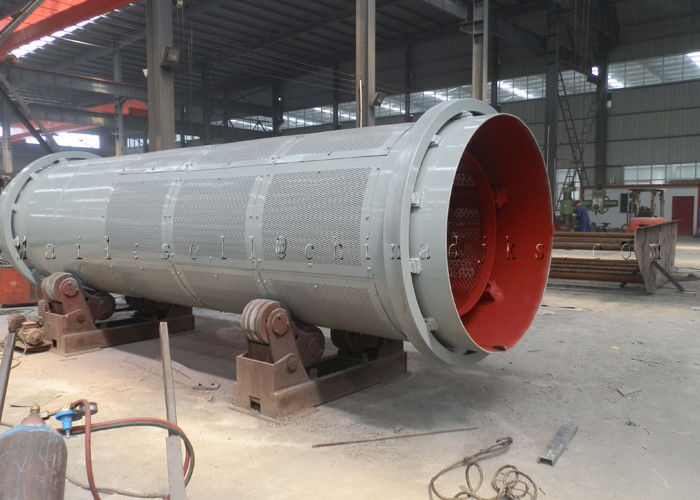

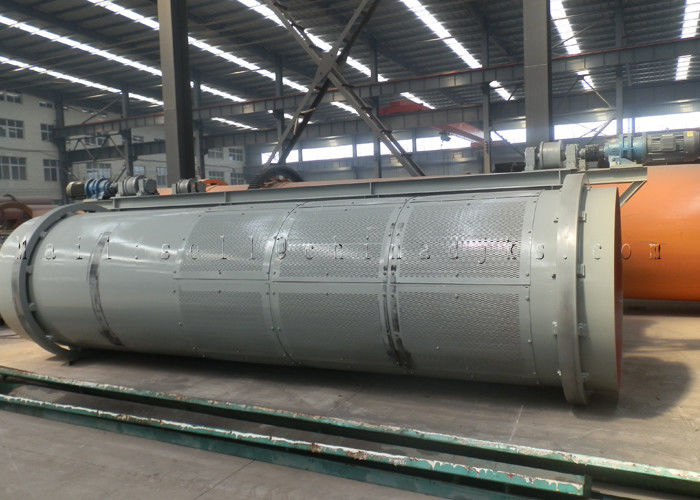

Rotary Drum Washers
Rotary Drum Washers is a New design, very different from conventional type stone or Rock washing machine. It is cylinder type with spiral inside, enjoy characteristics of high efficiency, energy saving and extreme durability. Applied to wash all kinds of ores and building stones. Cleaning efficiency can be up to 98%.
We can design and manufacture according to customer's detailed requirement.
Rotary Drum Washers Features:
High efficiency, energy saving and extreme durability.
Can be driven by electric motor or hydraulic motor.
Rotary Drum Washers Specifications:
1. Rotary Drum Washers have spiral chute inside;
2. Small discharging holes for dust;
3. Cleaning efficiency can be up to 98%
Rotary Drum Washers Technical Details:
| Model | Cylinder size (mm) | Screen pore diameter (mm) | Rotary speed (r/min) | Feed size (mm) | Water consumption(m3/h) | Capacity(t/h) | Motor power(kw) | Weight(t) |
| HY1030 | Φ1000*3000 | ≤20 | 27.9 | ≤80 | 1 | 40 | 15 | 3.8 |
| HY1230 | Φ1200*3000 | ≤25 | 27.6 | ≤100 | 1.3 | 70 | 22 | 4.7 |
| HY1430 | Φ1400*3000 | ≤25 | 27.6 | ≤100 | 1.5 | 80 | 22 | 4.9 |
| HY1545 | Φ1500*4500 | ≤25 | 21 | ≤160 | 1.7 | 120 | 30 | 6.9 |
| HY2265 | Φ2200*6500 | ≤50 | 19 | ≤230 | 1.8 | 180 | 37 | 15.9 |
Note: OEM service accept.
