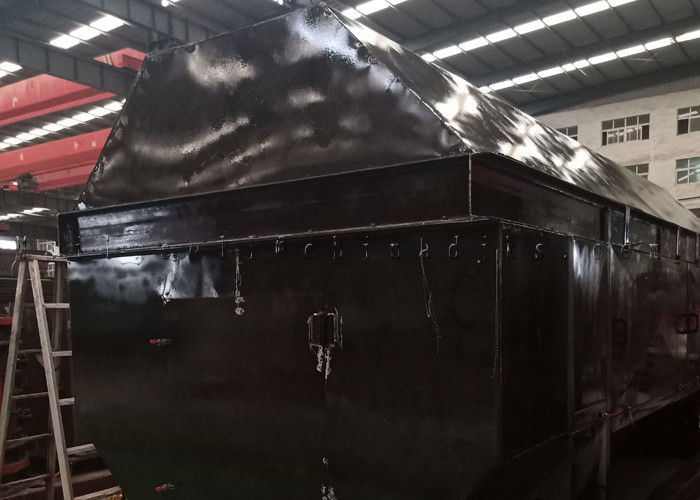

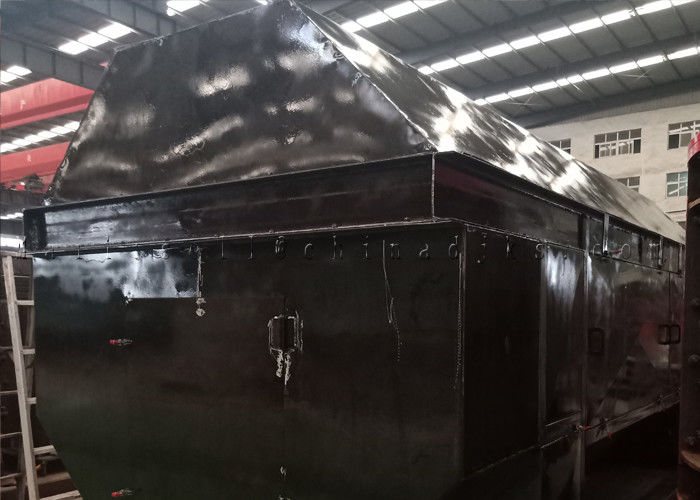

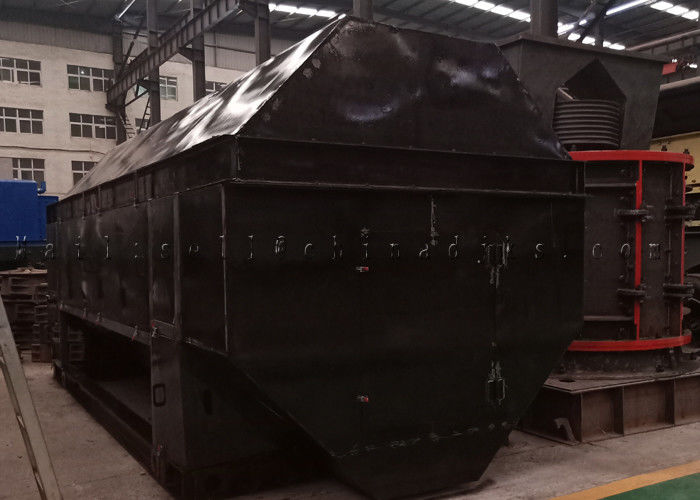

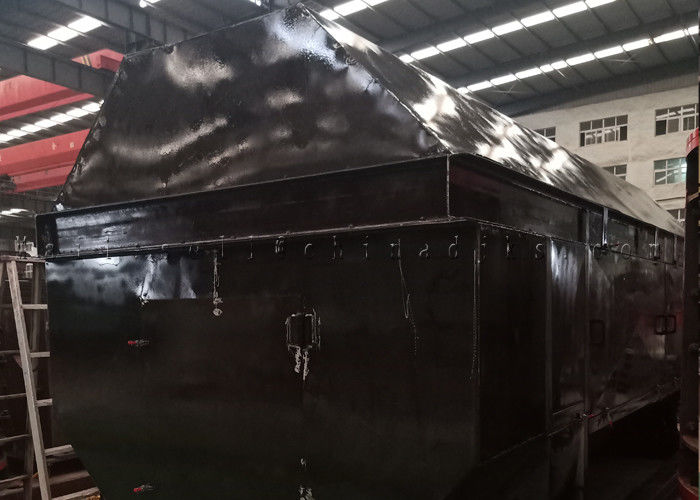

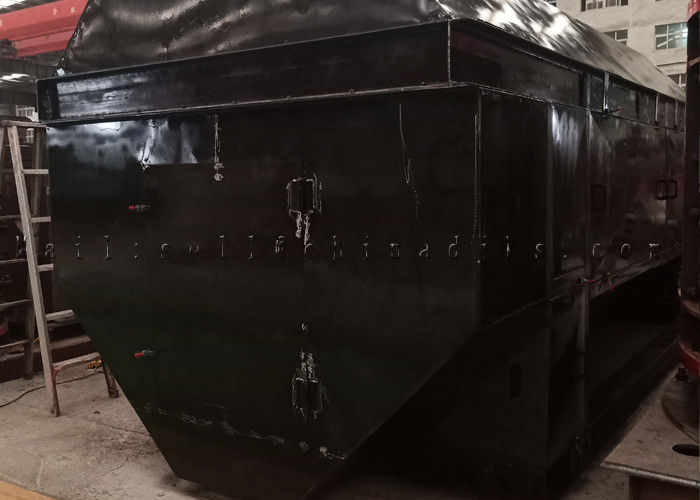

Solid Waste Trommel Screen of Waste Handling Plant
Based on the introduction of foreign advanced technology, after doing a lot of investigation and research work, we make up program about technology of waste sorting equipment and also develop better suited the situation of china. After solid waste compression and transfer, we can take bulky waste crushing, classification of solid waste sorting and recycling packaging and other supportive measures. Bulky waste can be through bulky waste crushers, sorting, sorted, and further resource pack, such as furniture and electric appliance.
Solid Waste Trommel Screen Features:
Compost trommel screen is a classification machine for various kinds of materials, for example: agriculture waste recycling, refractory materials, MSW waste, Construction Waste, Green waste, etc.
Solid Waste Trommel Screen can be manufactured to fit your specific needs. No matter adopt belt conveyor, hopper or other manner to feed the materials, it can run well without other special device.
Solid Waste Trommel Screen Technical Details:
| Model | Length | Rotation speed | Capacity | Breaking rate | Screen efficiency | Motor |
| m | RPM | TPH | % | % | KW | |
| HY-1200 | 4-8 | 0-14.6 | ≥20 | 60-90 | 70-90 | 4.0-5.5 |
| HY-1600 | 5-9 | 0-14.8 | ≥42 | 5.5-7.5 | ||
| HY-1800 | 6-10 | 0-12.2 | ≥50 | 7.5-11 | ||
| HY-2000 | 8-11 | 0-13.7 | ≥63 | 11-15 | ||
| HY-2200 | 9-12 | 0-12.8 | ≥70 | 15-18.5 | ||
| HY-2500 | 10-15 | 0-12.6 | ≥84 | 18.5-22 |
