Place of Origin:
China
Brand Name:
Hengyang
Certification:
ISO9001
Model Number:
HYL-012

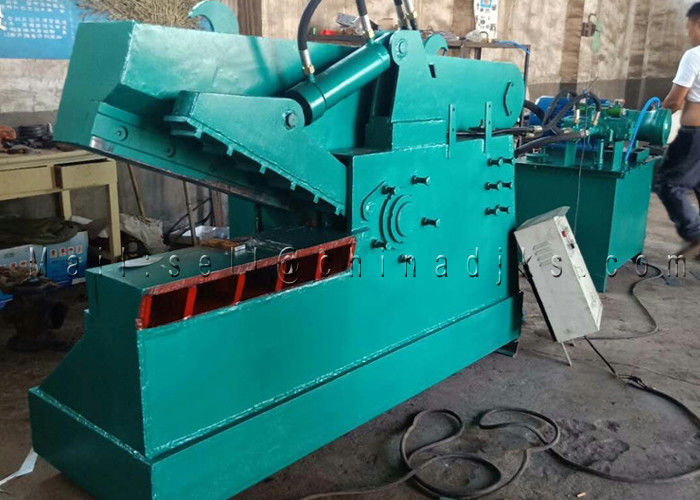

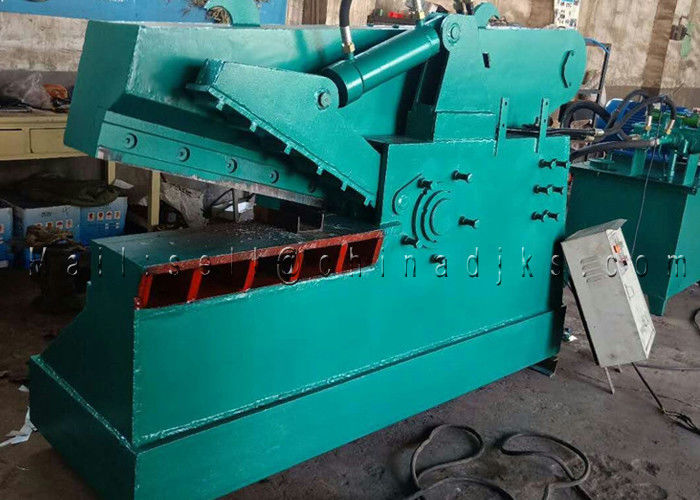

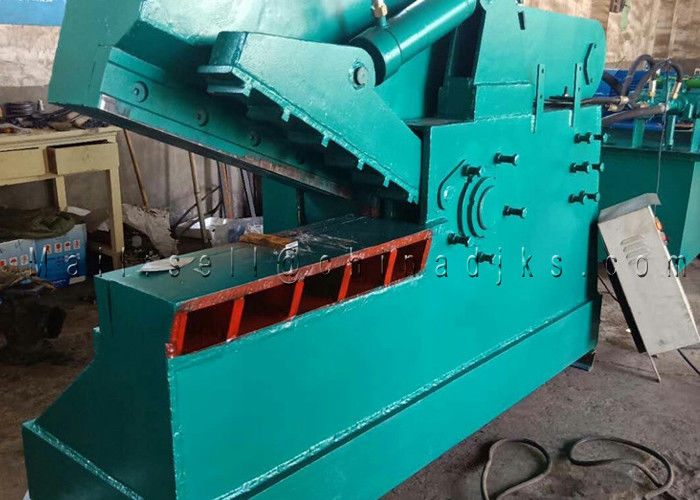

Crocodile Shears Cutting Machine for Waste Metal Scraps
Crocodile Shears Cutting Machine is suitable to cut various sharps of varieties of metal structure parts at cold condition for metal recovery companies, waste steel works, smelting and casting enterprises.
Crocodile Shears Cutting Machine Features:
1. Hydraulic driving, easy operation, easy maintenance.
2. Work knife edge length: 400mm, 600mm, 700mm, 800mm, 1000mm, 1200mm. The shearing force has 8classes from 63 tons to 400 tons. The shear with over 700mm knife edge can be used to shear waste car.
3. No requirements of foundation bolts for installation, the diesel may be used for driving at the place without power supplying.
Crocodile Shears Cutting Machine Technical Details:
| Type | HY43-63T | HY43-100T | HY43-120T | HY43-160T | HY43-200T | HY43-250T | ||||||
| Steel section | scrap size | No. | No. | No. | No. | No. | No. | |||||
| Round steel | φ35 | 1 | φ45 | 1 | φ50 | 1 | φ55 | 1 | φ65 | 1 | φ70 | 1 |
| Square steel | 30x30 | 1 | 40x40 | 1 | 45x45 | 1 | 50x50 | 1 | 65x65 | 1 | 70x70 | 1 |
| Angel iron | 80x80x4 | 2 | 100x100x6 | 2 | 110x110x8 | 2 | 110x110x8 | 2 | 110x110x10 | 4 | 110x110x4 | 4 |
| Channel bar | 80x60x4 | 1 | 100x80x6 | 1 | 120x100x8 | 1 | 120x100x8 | 1 | 120x100x14 | 1 | 120x100x16 | 1 |
| I steel | 80x80x6 | 1 | 100x100x8 | 1 | 110x110x10 | 1 | 110x110x10 | 1 | 110x110x10 | 2 | 110x110x14 | 2 |
| Steel | 20x50 | 1 | 20x100 | 1 | 20x120 | 1 | 20x300 | 1 | 20x500 | 1 | 25x600 | 1 |
| Model |
Max.cutting force (ton) |
Blade length (mm) |
Max.cutting size (mm) |
Shearing frequency (times/min) |
Motor (kw) |
| HY43-63/600 | 63 | 600 | 30x30 φ35 | 8-12 | 7.5 |
| HY43-63/800 | 63 | 800 | 30x30 φ35 | 8-12 | 7.5 |
| HY43-100/600 | 100 | 600 | 35x35 φ40 | 8-12 | 11 |
| HY43-100/800 | 100 | 800 | 35x35 φ40 | 8-12 | 11 |
| HY43-120/600 | 120 | 600 | 45x45 φ50 | 8-12 | 15 |
| HY43-120/800 | 120 | 800 | 45x45 φ50 | 6-10 | 15 |
| HY43-160/800 | 160 | 800 | 55x55 φ55 | 6-10 | 18.5 |
| HY43-200/800 | 200 | 800 | 55x55 φ63 | 6-10 | 22 |
| HY43-200/1000 | 200 | 1000 | 55x55 φ63 | 6-10 | 22 |
| HY43-250/1000 | 250 | 1000 | 63x63 φ70 | 6-8 | 2x15 |
| HY43-250/1200 | 250 | 1200 | 63x63 φ70 | 6-8 | 2x15 |
| HY43-315/1000 | 315 | 1000 | 70x70 φ80 | 6-8 | 2x18.5 |
| HY43-315/1200 | 315 | 1200 | 70x70 φ80 | 6-8 | 2x18.5 |
| HY43-400/1200 | 400 | 1200 | 80x80 φ90 | 5-6 | 2x22 |
| HY43-400/1500 | 400 | 1500 | 80x80 φ90 | 5-6 | 2x22 |
| HY43-500/1200 | 500 | 1200 | 90x90 φ100 | 4-6 | 2x22 |
| HY43-500/1600 | 500 | 1600 | 90x90 φ100 | 4-6 | 2x22 |
