Place of Origin:
China
Brand Name:
Hengyang
Certification:
ISO9001
Model Number:
HYL-011

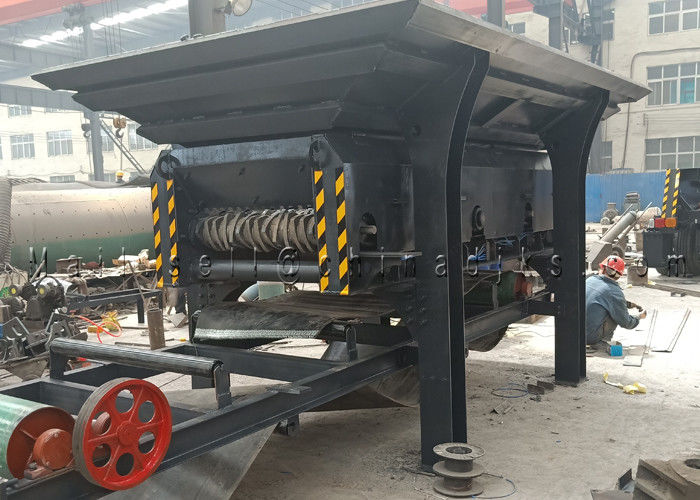

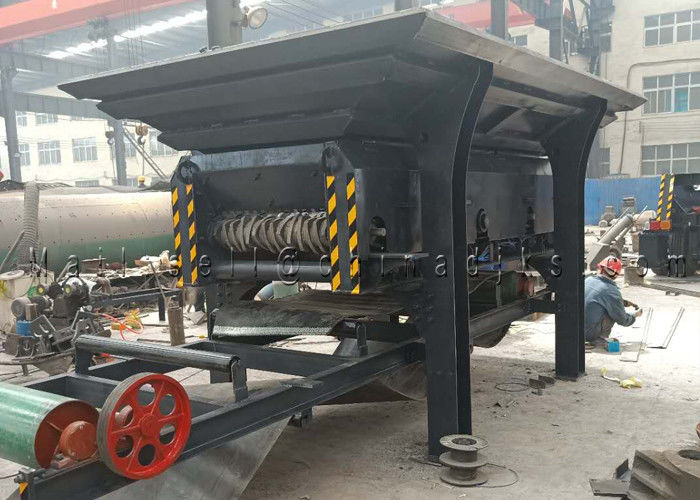

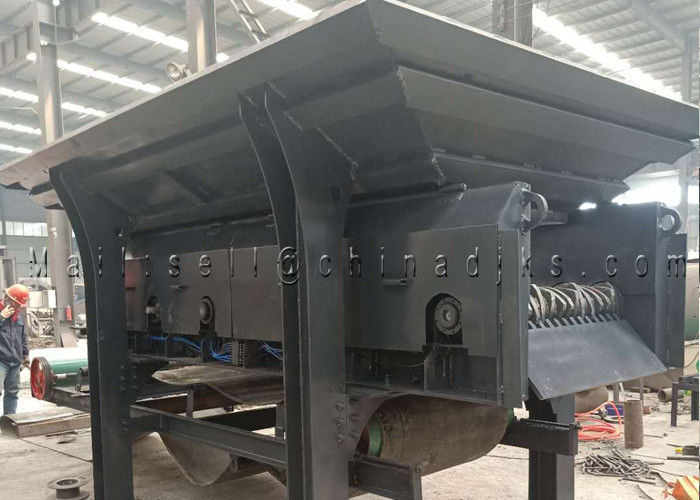

Stone and Debris with Hoppe and Belt Conveyor for Mud-stones
A claystone is lithified and nonfissile mudrock. In order to be considered a claystone, it must consist of up to 50% clay, which measures < 1/256 of a millimeter in particle size. Before we use this kind of raw material, need to separate them into mud and stones. Most materials in nature are clay minerals, but quartz, feldspar, iron oxides, and carbonates can weather to sizes of a typical clay mineral.
Hengyang Industry mainly uses Stone and Debris Separator for separating stone and debris, and than use for construction or mining. This machine also suitable for separating stone and mud, stone and other debris.
Stone and Debris with Hoppe and Belt Conveyor Technical Details:
| Model | 0835 | 1040 | 1240 | 1445 | 1645 | 1850 | 2050 |
| Slope (°) | 0-5 | 0-5 | 0-5 | 0-5 | 0-5 | 0-5 | 0-5 |
| Sieves Width | 40-100 | 40-100 | 40-100 | 40-100 | 40-100 | 40-100 | 40-100 |
| Practical Width (m) | 0.8 | 1 | 1.25 | 1.5 | 1.5 | 175 | 2 |
| Length (m) | 3.5 | 4 | 4 | 4.5 | 4.5 | 5 | 5 |
| Power (kw) | 7.5*4 | 11*4 | 15*4 | 15*4 | 18.5*4 | 22*4 | 30*4 |
| Capacity (t/h) | 60-100 | 100-150 | 150-200 | 200-300 | 300-400 | 400-600 | 600-800 |
| Layer | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Rotation Speed (r/min) | 0-180r/min (frequency control) | ||||||
| Blade shape | Triangle type, butterfly type, teeth shape, Octagonal | ||||||
| Assist air | Frequency control Blower | ||||||
| Oil Station | Provide power | ||||||
| Hopper | One set | ||||||
| Belt conveyor | One set | ||||||
Stone and Debris with Hoppe and Belt Conveyor Separating Result:
| Raw Material | Raw Material |
|
|
| Stones, After separated | Mud or clay |
|
|
