Place of Origin:
China
Brand Name:
Hengyang
Certification:
ISO9001
Model Number:
HYL-009

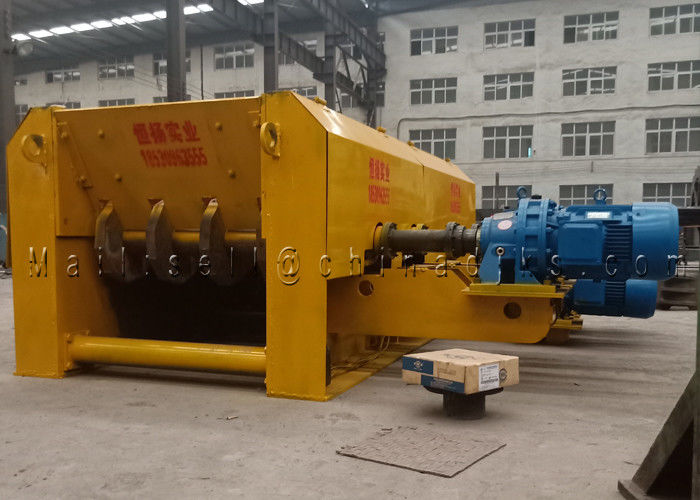

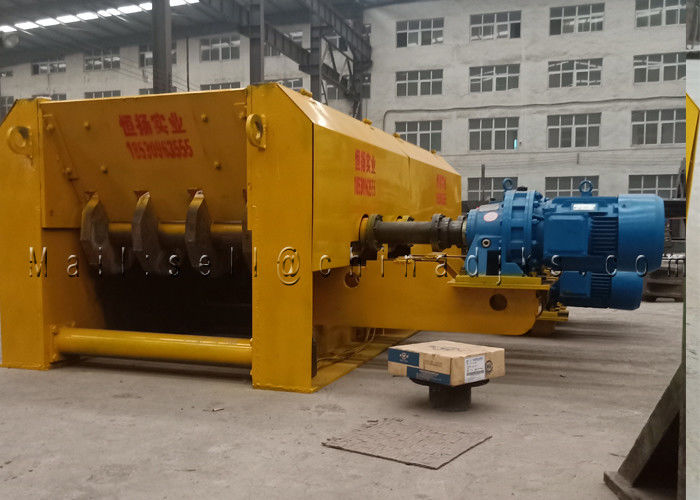

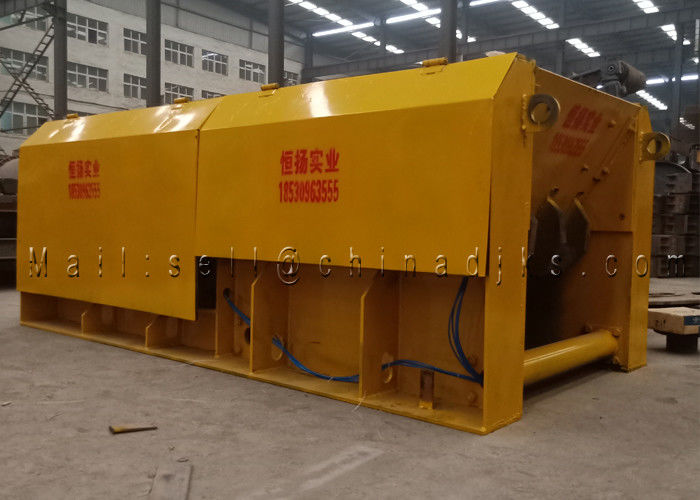

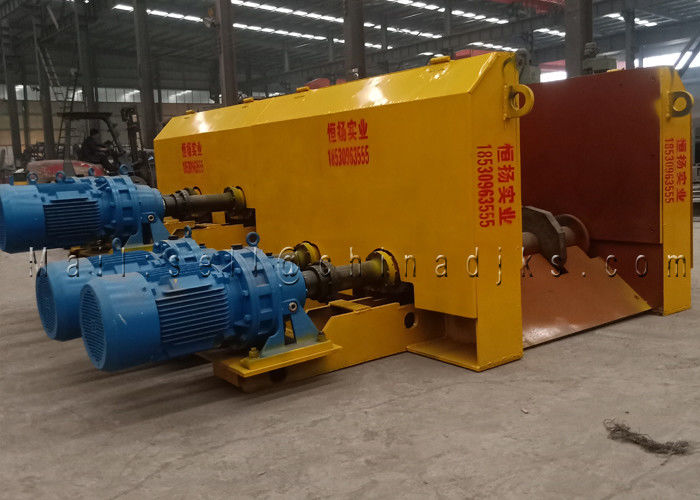

Double Layer Blade Separator
A claystone is lithified and nonfissile mudrock. In order to be considered a claystone, it must consist of up to 50% clay, which measures < 1/256 of a millimeter in particle size. Clay minerals are integral to mudrocks, and represent the first or second most abundant constituent by volume, as there are 35 recognized clay mineral species on earth. Clay by far is the smallest of particles recognized. Most materials in nature are clay minerals, but quartz, feldspar, iron oxides, and carbonates can weather to sizes of a typical clay mineral.
Hengyang Industry mainly uses Double Layer Blade Separator for separating stone and debris, and than use for construction or mining. This machine also suitable for separating stone and mud, stone and other debris.
Double Layer Blade Separator Technical Details:
| Model | 0835 | 1040 | 1240 | 1445 | 1645 | 1850 | 2050 |
| Slope (°) | 0-5 | 0-5 | 0-5 | 0-5 | 0-5 | 0-5 | 0-5 |
| Sieves Width | 40-100 | 40-100 | 40-100 | 40-100 | 40-100 | 40-100 | 40-100 |
| Practical Width (m) | 0.8 | 1 | 1.25 | 1.5 | 1.5 | 175 | 2 |
| Length (m) | 3.5 | 4 | 4 | 4.5 | 4.5 | 5 | 5 |
| Power (kw) | 7.5*4 | 11*4 | 15*4 | 15*4 | 18.5*4 | 22*4 | 30*4 |
| Capacity (t/h) | 60-100 | 100-150 | 150-200 | 200-300 | 300-400 | 400-600 | 600-800 |
| Layer | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| Rotation Speed (r/min) | 0-180r/min (frequency control) | ||||||
| Blade shape | Triangle type, butterfly type, teeth shape, Octagonal | ||||||
| Assist air | Frequency control Blower | ||||||
| Oil Station | Provide power | ||||||
