Place of Origin:
China
Brand Name:
Hengyang
Certification:
ISO9001
Model Number:
HYP003

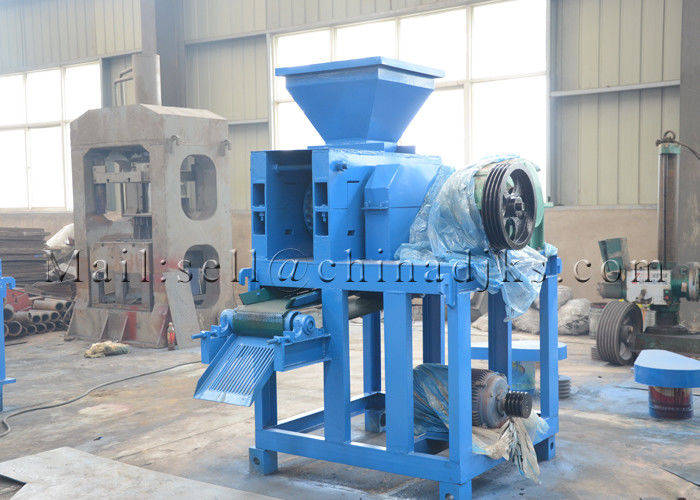

Small Hydraulic Briquette Press Machine(Pellet Machine) can used to press various powder into solid briquettes, used in different industry.
Small Hydraulic Briquette Press Machine(Pellet Machine) Working Principle:

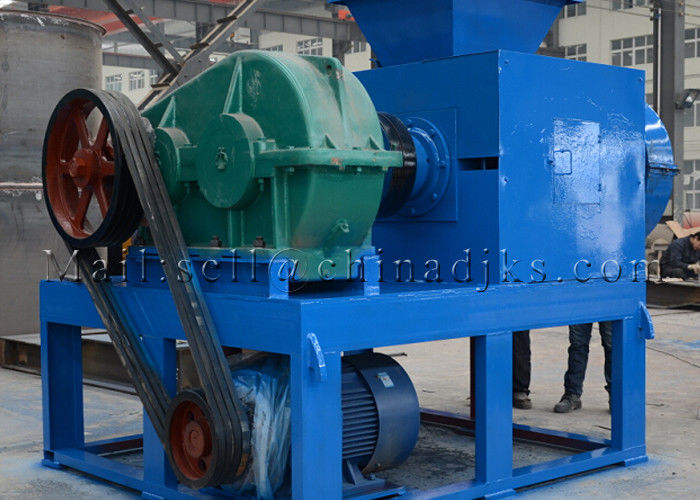

Small Hydraulic Briquette Press Machine(Pellet Machine) uses main motor to transmit the motive power to speed reducer through the V-shape triangle belt and to main drive spindle through coupling, and then uses the main driven split gear to send it to the main driven spindle to make the two rollers fall into step (inverted running with uniform speed).
Small Hydraulic Briquette Press Machine(Pellet Machine) Technical Details:
| Model | HYP-4 | HYP-6 | HYP-8 | HYP-10 | Instruction |
| Performance | |||||
| Output | 3-4t/h | 6t/h | 8t/h | 10t/h | According to material |
| Roller width | 250mm | 240mm | 220mm | 300mm | |
| Roller diameter | 360mm | 400mm | 450mm | 500mm | |
| Power | 7.5 kW | 11 kW | 18.5kW | 22kW | |
| Reducer | ZQ350 | ZQ400 | ZQ500 | ZQ500 | standard configuration |
| Pressure type | Mechincal | Mechincal | Mechincal | Hydraulic | patent |
| Roller material | 65Mn | 65Mn | 65Mn | 65Mn | Casting |
| 9Cr2 | 9Cr2 | 9Cr2 | 9Cr2 | Forging | |
| wear-resistant alloy | wear-resistant alloy | wear-resistant alloy | wear-resistant alloy | patent | |
| Roller assemble | Split-clamp type | Split-clamp type | Split-clamp type | Temper assembly | patent |
| Hardness of roller | 52-62 HRC | 52-62 HRC | 52-62 HRC | 52-62 HRC | |
| Pressure structure | Four-rollers double pressure | Four-rollers double pressure | Four-rollers double pressure | Four-rollers double pressure | patent (four rollers) |
| Dimension (mm) |
1200x1150x1835 | 1400x1298x2125 | 1700x1510x2200 | 2000x1960x2440 | |
| Weight(kg) | 2100 | 2300 | 2750 | 5800 |
In order to meet the needs of combustion and smelting, usually the briquettes will be made into 20-80mm, their shape shall be around, elliptic, squared, pillowed and bread shape or customized.
