Place of Origin:
China
Brand Name:
Hengyang
Certification:
ISO9001
Model Number:
HYC013

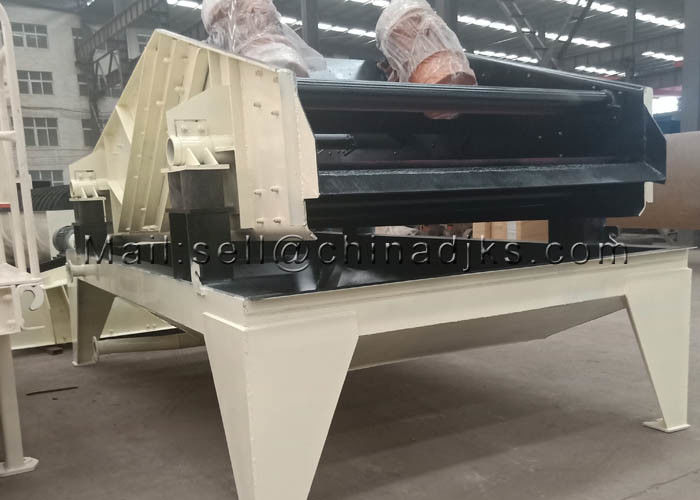

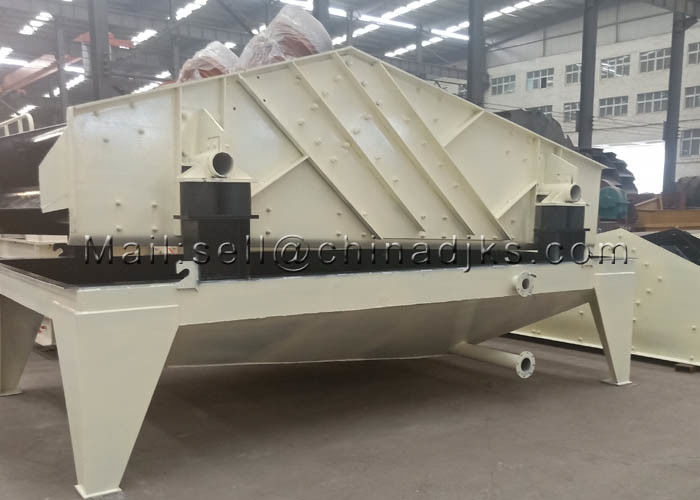

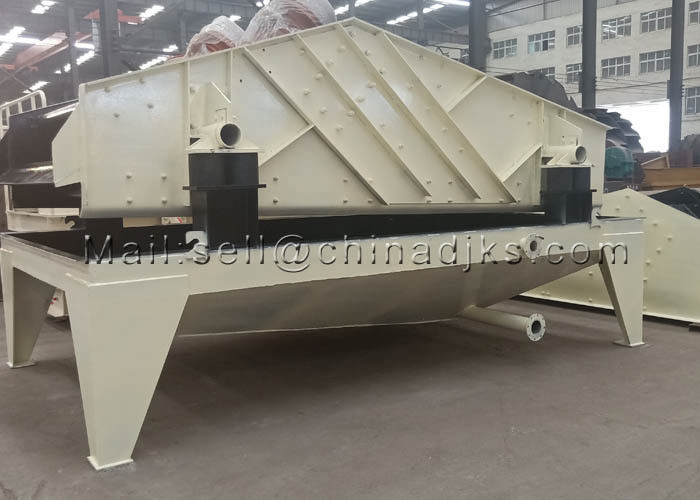

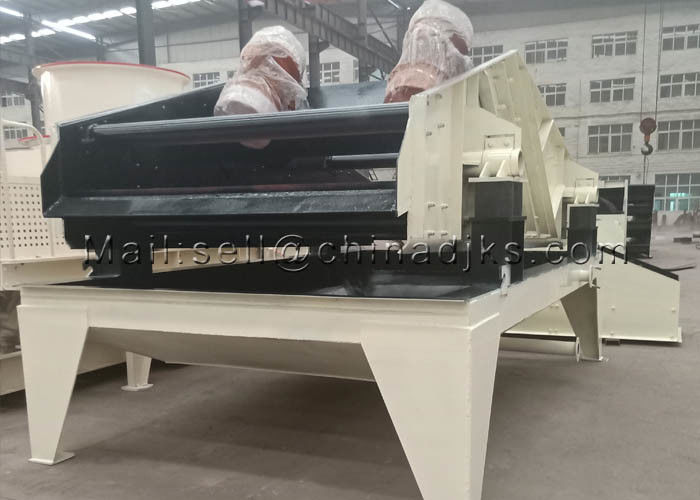

Dewater Vibrating Screen for mining/wet sand
This dewatering vibrating screen is ideally suited for dewatering mineral sand (e.g. 0-4 mm) or fine sand (e.g. 0-1 mm). Dewatering screens are equipped with a flat sieve made of PU that demonstrate high durability. The sorting of the screen makes it possible to send two different fractions from the chute to two conveyors.
Dewatering vibrating screens have a wide variety of application including dewatering, desliming, degritting, rinsing, scrubbing and washing. It is made up of screen cloth, vibration exciter, supporting system and motor. Materials such as sand, gravel, crushed aggregates, frac sand, industrial sands, mineral sands, hard rock, precious metals, coal, iron ore, salt and other granular materials which can be processed by dewatering screens.
Dewater Vibrating Screen Features
1. Low noise, easy maintenance
2. Stable structure with strong exciting force
3. High screening efficiency and low noise pollution
4. Light weight, easy to disassemble and replace
5. Stable structure and strong exciting force
Dewater Vibrating Screen Technical Details:
| Model | Screen Size (mm) | Mesh Size | Inclination (Degree) | Feed Size (mm) | Capacity (Tons/hour) |
Motor (KW) |
Speed (r/min) | Amplitude (mm) |
| HTS-1230 | 1200*3000 | 5-500 mesh | 3-10° | <50 | 10-20 | 1.5KW*2 | 960 | 2-4 |
| HTS-1236 | 1200*3600 | 15-30 | 2.2KW*2 | 2-4 | ||||
| HTS-1530 | 1500*3000 | 20-40 | 2.5KW*2 | 2-4 | ||||
| HTS-1545 | 1500*4500 | 25-50 | 3KW*2 | 2-4 | ||||
| HTS-1850 | 1800*5000 | 30-60 | 3.7KW*2 | 3-5 | ||||
| HTS-1860 | 1800*6000 | 35-70 | 3.7KW*2 | 3-5 | ||||
| HTS-2160 | 2100*6000 | 40-80 | 5.5KW*2 | 3-5 | ||||
| HTS-2460 | 2400*6000 | 50-100 | 7.5KW*2 |
