Place of Origin:
China
Brand Name:
Hengyang
Certification:
ISO9001
Model Number:
HYC011

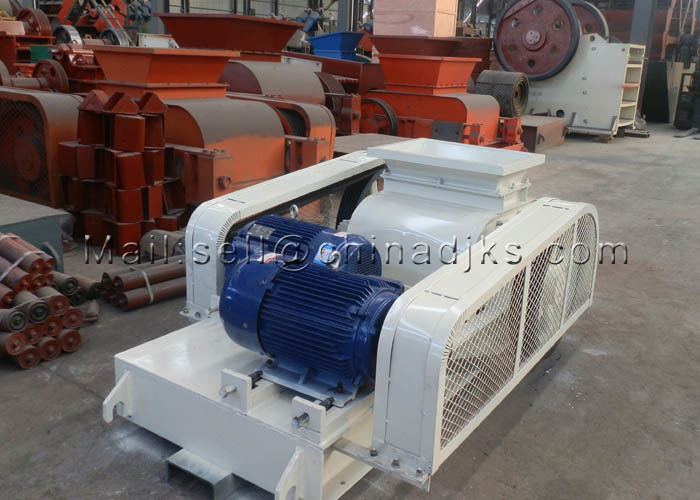

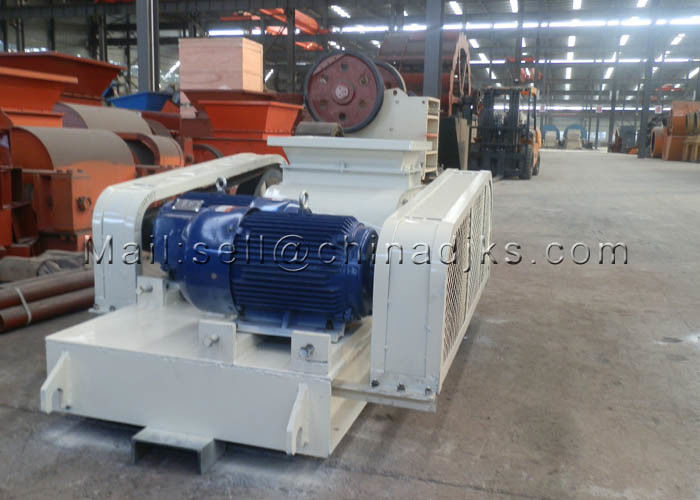

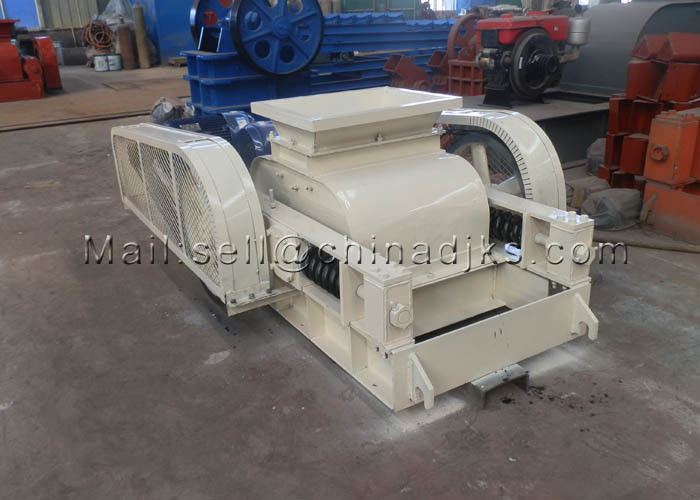

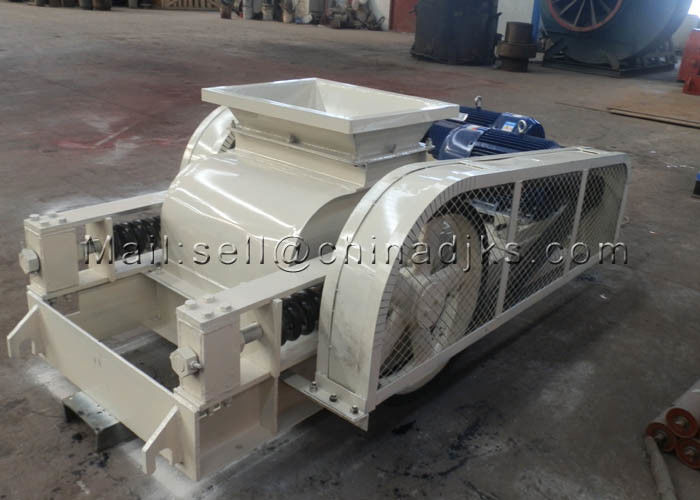

Roller Crusher of sand Crushing or Gypsum Crushing
Roller Crusher Description:The double-roller crusher is one of the crushers produced by our company for coarse/fine crushing. It is widely used in fields of cement making, chemical engineering, waterpower, metallurgy, construction, fire-proof material making, etc. It is suitable to deal with medium-hardness materials like limestone, pebble, clinker, coke, etc. The material to be crushed should have fracture strength less than 300MPa and humidity less than 35%.
Roller Crusher Features:1.High reduction ratio and productivity. 2.User-friendly. 3.Reliable operation. 4.Uniform-sized finished products. 5.Reduced noise level. 6.Environmentally friendly. 7.Sensitive over-load safety device. 8.Adjustable feed opening which is suitable to deal with materials with various fracture strengths. 9.Safety device which can protect the crusher: Normally, springs can bear the force used to crush the material. If something that can not be crushed is fed into the chamber, springs will be pressed. In the case, the discharge opening becomes larger and then the unknown material will be discharged. Afterwards, the rollers return to their normal positions under the force of the springs.
Roller Crusher Technical Details:
| Specification | Max Feed Edge (mm) |
Discharge Size (mm) |
Production (t/h) |
Power (kw) |
Weight (kg) |
| 2PG-400X250 | ≤25 | 1--8 | 5-10 | 11 | 1500 |
| 2PG-400X500 | ≤30 | 1--15 | 10-20 | 22 | 2600 |
| 2PG-610X400 | ≤40 | 1--20 | 13-35 | 30 | 4500 |
| 2PG-750X500 | ≤40 | 2--20 | 15-40 | 37 | 12250 |
| 2PG-900X500 | ≤40 | 3--40 | 20-50 | 44 | 14000 |
