Place of Origin:
China
Brand Name:
Hengyang
Certification:
ISO9001
Model Number:
HYC008

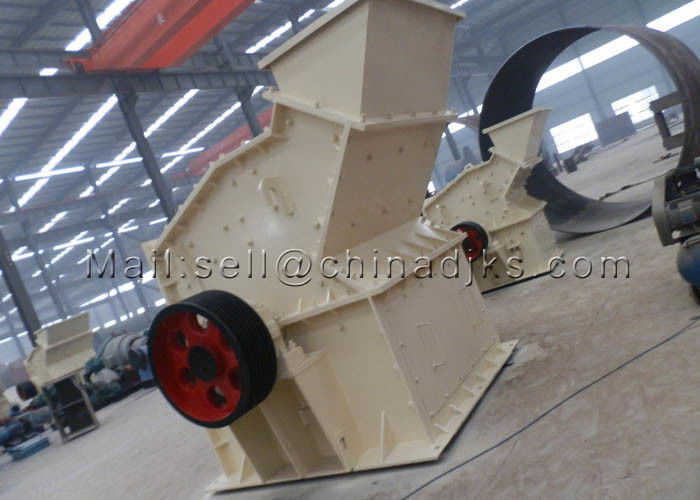

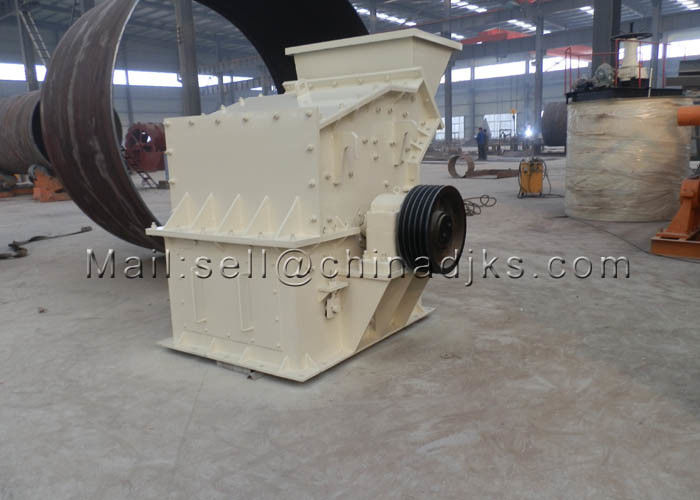

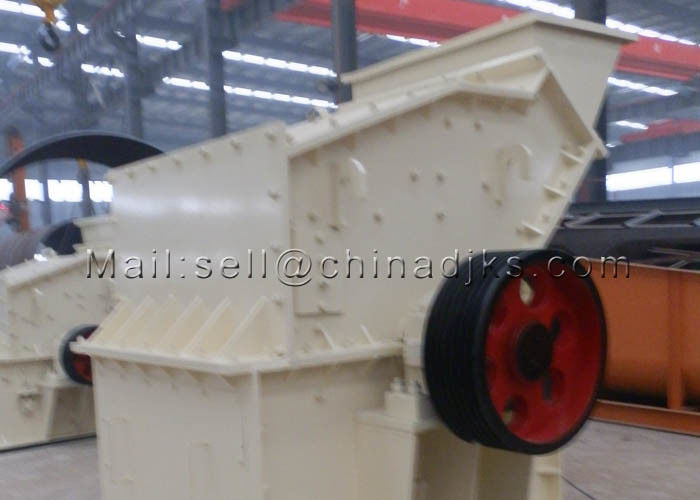

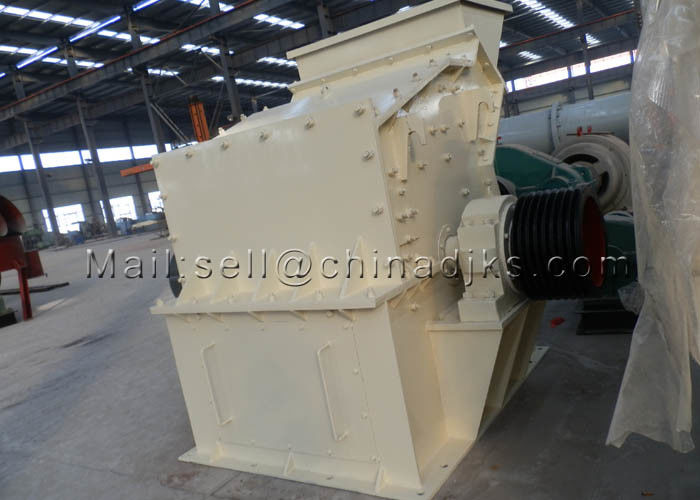

The PCX fine impact crusher is digests home and abroad vanguard technology, unifies newest generation of highly effective small aggregate crusher which the domestic correlation profession concrete operating mode condition develops. Uses in each kind of medium degree of hardness solid material, in cement industry, limestone in broken bits, paste, chamotte, and so on mix material. Also can crush may the calcium phosphide in broken bits, the dolomite, and so on pearl ore. It is widely used in the building materials, the chemical fertilizer industry sector and so on mining and fire-proof material.
Application of Fine Impact Crusher:
It is applicable for granite, basalt, cement clinker, quartz, emery, ore, iron ore and bauxite with large production capacity, long service life hammerhead and environmental protection and energy conservation features. Additionally, the pebbles fine crushing prevent the traditional sand stone making equipments feature which is only applicable for the soft rock(under 150MPa).
Fine Impact Crusher Working Principle:
When the fine impact crusher works, with the help of the motor, the fine impact crusher’s rotor rotates fast, the material is crushed by the shock of rotor’s hammer in the first crushing zone, and being crushed in the second fine crushing zone, then discharged from the output.
Fine Impact Crusher Technical details:
| Model | Feeding size(mm) | Discharging size(mm) | Capacity(t/h) | Power(kw) | Weight(t) |
| PCX800×400 | ≤60 | ≤5(96%) | 20-25 | 37 | 2.5 |
| PCX800×600 | ≤60 | ≤5(94%) | 35-50 | 45 | 4.7 |
| PCX800×800 | ≤70 | ≤5(92%) | 40-60 | 75 | 6.5 |
| PCX1000×1000 | ≤80 | ≤5(91%) | 60-90 | 90 | 8.8 |
| PCX1000×1200 | ≤90 | ≤5(88%) | 75-110 | 110 | 13.6 |
| PCX1200×1200 | ≤100 | ≤5(86%) | 120-145 | 160 | 19.5 |
| PCX1300×1400 | ≤120 | ≤5(85%) | 145-180 | 180 | 26 |
