Place of Origin:
China
Brand Name:
Hengyang
Certification:
ISO9001
Model Number:
HYC005

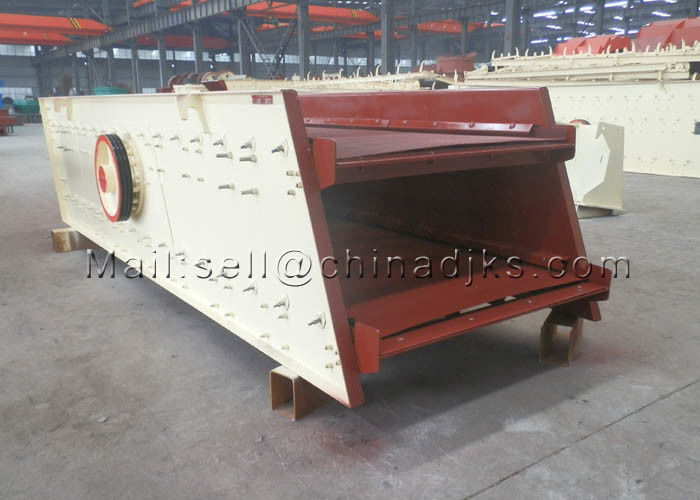

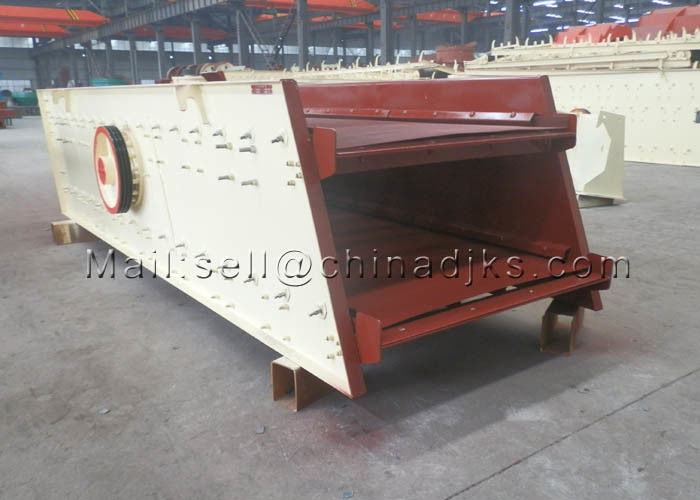

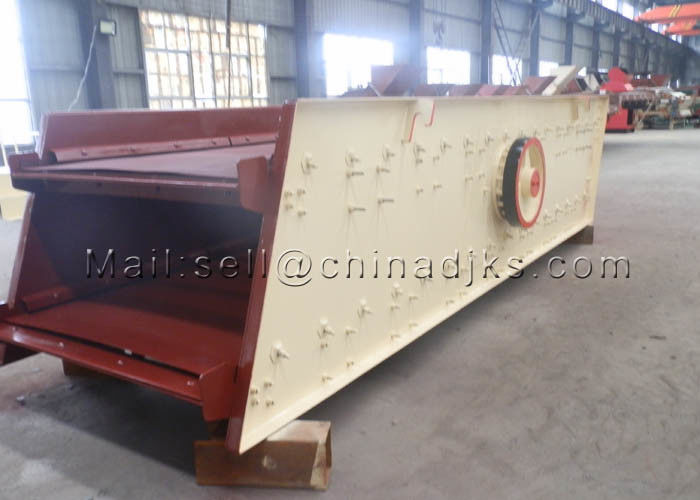

Vibrating Screen of Crushing Production Line
The vibration screen of this series is a new type of multi-layer, high efficiency round vibration screen. The vibration screen is with adjustable amplitude, material screen of long line, multi-layer screen separation, clear screening of each specification, high efficiency of screening and it is widely used for product grading in departments of mining area, sandstones, building materials, transportation, energy, chemical industry, etc. The vibrating screen is a kind of sieving equipment of international advanced level, developed by our company on the basis of carrying on the advantages of traditional screens and absorbing the outstanding technology from abroad. Now they are installed in about 130 countries of the global market.
Vibrating Screen Working principle:
This series of Vibrating Screen For Make Sand with eccentric block as the excitation source to drive the sieve box for circular vibrating, its working principle is: the screen box through the elastic support on the base (or base), the eccentric block is mounted on the spindle, the spindle through the bearing and the bearing seat is arranged on the side of the screen box. Motor driven by triangle with intermediate shaft, intermediate shaft drives the rotation of the spindle, spindle rotates to drive an eccentric block to rotate, inertia force of the eccentric block to produce forced vibration sieve box. With the motor running, the approximate circular locus motion vibrating screen, realize continuous screening operation.
Vibrating Screen for Make Sand uses the N series of eccentric vibration exciter, intermediate transmission connected by flexible connection, equipment amplitude is larger, and vibration was stable. The ability of the vibration sieve and screening efficiency are improved, which can ensure the operation of the vibrating screen is more reliable and service life is longer.
Vibrating Screen Technical details:
| Model | Screen Size (mm) | Layers | Mesh Size (mm) | Feeding Size (mm) | Capacity (t/h) | Power (kw) | Motor Model | REV (r/min) | Amplitude (mm) | Angle (℃) | Machine Size (mm) |
| 2YA1237 | 1200×3700 | 2 | 3-50 | ≤200 | 7.5-80 | 4-15 | Y160L-4/15 | 970 | 8 | 20 | 4010×2250×2660 |
| 3YA1237 | 1200×3700 | 3 | 3-50 | ≤200 | 7.5-80 | 4-15 | Y160L-4/15 | 970 | 8 | 20 | 4010×2250×3140 |
| 2YA1548 | 1500×4800 | 2 | 5-50 | ≤400 | 50-208 | 4-15 | Y160L-4/15 | 970 | 8 | 20 | 5120×2590×3060 |
| 3YA1548 | 1500×4800 | 3 | 5-50 | ≤400 | 50-250 | 4-15 | Y160L-4/15 | 970 | 8 | 20 | 5120×2590×3540 |
| 2YA1848 | 1800×4800 | 2 | 5-80 | ≤400 | 50-260 | 4-18.5 | Y180M-4/18.5 | 970 | 8 | 20 | 5120×2950×3060 |
| 3YA1848 | 1800×4800 | 3 | 5-80 | ≤400 | 50-300 | 4-18.5 | Y180M-4/18.5 | 970 | 8 | 20 | 5120×2950×3540 |
| 2YA1860 | 1800×6000 | 2 | 5-80 | ≤400 | 50-300 | 4-18.5 | Y180M-4/18.5 | 970 | 8 | 20 | 6260×2950×3480 |
| 3YA1860 | 1800×6000 | 3 | 5-80 | ≤400 | 50-350 | 4-22 | Y180L-4/22 | 970 | 8 | 20 | 6260×2990×3960 |
| 2YA2160 | 2100×6000 | 2 | 5-150 | ≤400 | 100-500 | 4-22 | Y180L-4/22 | 730 | 6-8 | 20 | 6270×3410×3670 |
| 3YA2160 | 2100×6000 | 3 | 5-100 | ≤400 | 100-500 | 4-30 | Y200L-4/30 | 730 | 6-8 | 20 | 6270×3470×4100 |
| 2YA2460 | 2400×6000 | 2 | 5-150 | ≤400 | 150-700 | 4-37 | Y225S-4/37 | 730 | 6-8 | 20 | 6270×3770×3610 |
| 3YA2460 | 2400×6000 | 3 | 5-150 | ≤400 | 150-700 | 4-37 | Y225S-4/37 | 730 | 6-8 | 20 | 6270×3790×4100 |
