Place of Origin:
China
Brand Name:
Hengyang
Certification:
ISO9001
Model Number:
HYC004

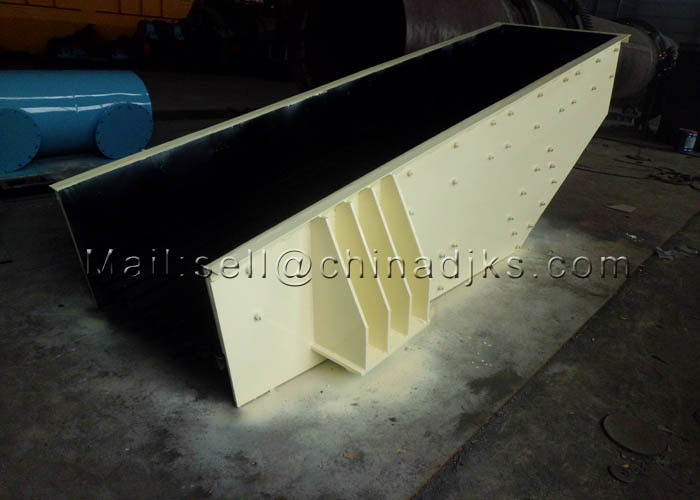

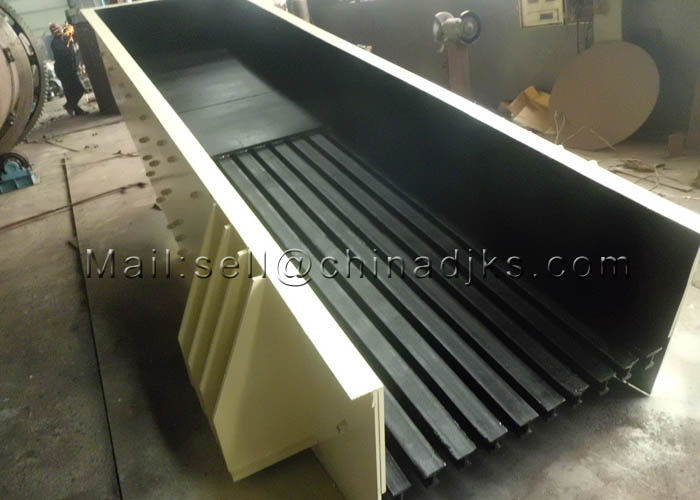

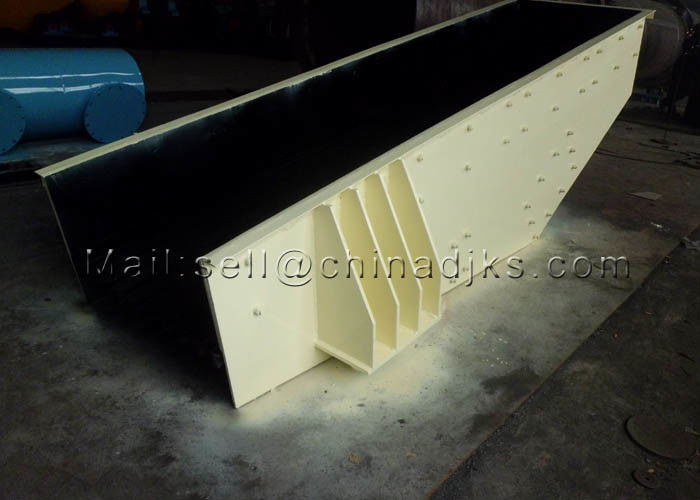

ZSW series vibrating feeder( grizzly feeder ) is engineered for the toughest conditions. Featuring scalping ability, ZSW series feeder can process flaky, abrasive ,material either in mobile or stationary installations.
Vibrating Feeder always working with jaw crusher, crushing plant for feeding stone, aggregates, etc.
Vibrating Feeder Technical details:
| Model | Max. feed size (mm) | Max. feed capacity (t/h) | Power (kw) | Weight (t) |
| ZSW120 | 380 | 100 | 8 | 2.3 |
| ZSW250 | 600 | 250 | 15 | 4.9 |
| ZSW500 | 1000 | 500 | 37 | 10.5 |
| ZSW630 | 1000 | 800 | 45 | 10.7 |
| ZSW1000 | 1100 | 1100 | 55 | 15.2 |
| ZSW1500 | 1200 | 1500 | 75 | 19.5 |
