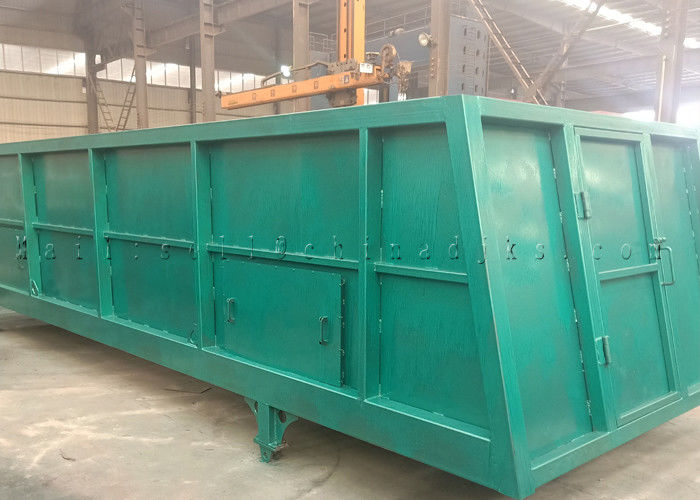

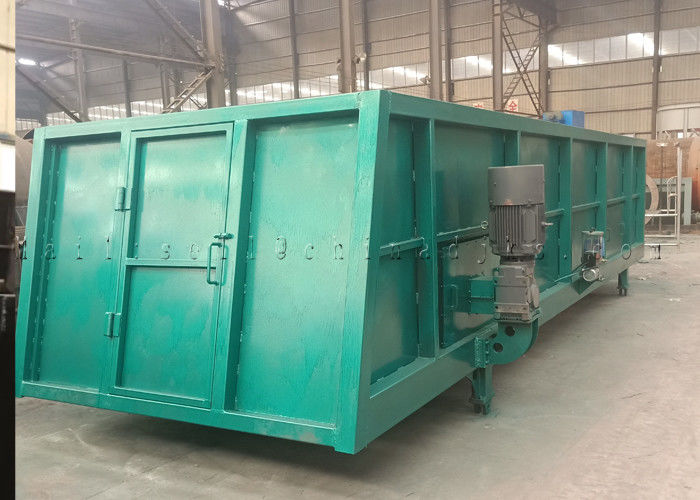

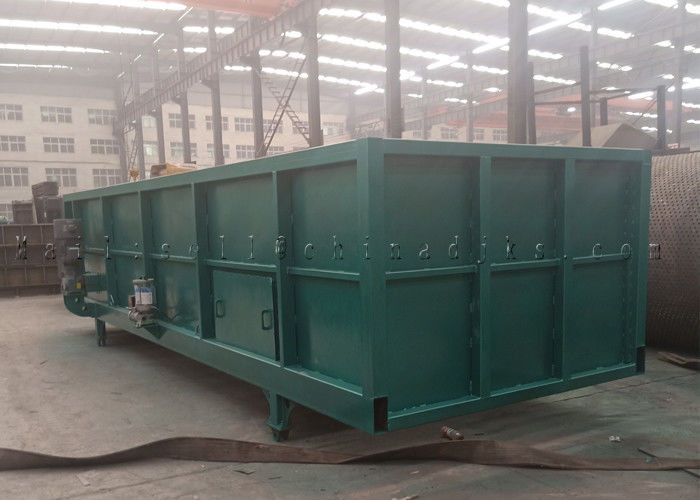

Ballaistic Separator for Waste Sorting Plant
The ballistic separator is typically installed as a starting machine of the automatic sorting line in waste recycling systems to increase the recovery rate and maximize the separation efficiency of the subsequent separators.
Application
The ballistic separator can be used for sorting following materials:
Materials can be separated:
Tecnical Details:
| Model | Unit | HY-40 | HY-60 | HY-80 | HY－100 | HY-120 |
| Capacity | m3/h | 60 | 90 | 120 | 150 | 180 |
| ton/h | 4.8 | 7.2 | 9.6 | 12.2 | 14.4 | |
| Power consumption | kw | 5.5 | 7.5 | 11 | 11 | 11 |
| Paddle length | m | 5.5 | 5.5 | 5.5 | 5.5 | 5.5 |
| Paddle No. | No. | 4 | 6 | 8 | 10 | 12 |
| Screen area | m2 | 9.6 | 14.4 | 19.2 | 23.9 | 28.7 |
| Power supply | 380-400V, 50/60Hz | |||||
| Dimension (W*L*H) | m | 2260*7955*1900 | 3050*7955*1900 | 3440*7955*1900 | 4180＊7955*1900 | 4625*7955*1900 |
| Angle adjustment | Range: 0～18° Option: auto/manual | |||||
| Centralized lubrication | Option: Auto/manual | |||||
| Sieve size | According to material and process | |||||
| Covers | Option: plastic/steel | |||||
| Air support | Option: 2-4 fans (frequency controlled) | |||||
| Weight | t | 5.75 | 7 | 8.5 | 9.75 | 11 |
