Place of Origin:
China
Brand Name:
Hengyang
Certification:
ISO9001
Model Number:
HC-603

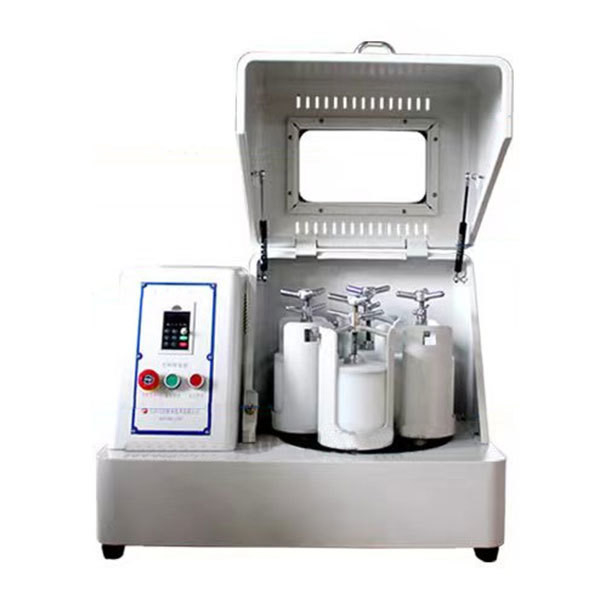

Planetary ball mill is a device for mixing, fine grinding, small sample preparation, new product development and small batch production of high-tech materials. The planetary ball mill of our company is small in size, full in function, high in efficiency and low in noise. It is a powder equipment for scientific research institutions, universities and enterprise laboratories to obtain research samples (four samples can be obtained at the same time for each experiment). With a vacuum ball mill tank, the test samples can be ground under vacuum.
Laboratory Planetary Ball Mill Applications
Planetary ball mill is widely used in geology, mineral industry, metallurgy, electronics, building materials, ceramics, chemical industry, light industry, medicine, environmental protection and other departments, and is applicable to electronic ceramics, structural ceramics, magnetic materials, lithium cobalt oxide, lithium manganese oxide, catalyst, fluorescent powder, long persistence luminous powder, dilute earth polishing powder, electronic glass powder, fuel cell, zinc oxide varistor, piezoelectric ceramic, nano material, wafer ceramic capacitor, MLCC, thermistor (PTC, NTC), ZnO varistor, dielectric ceramic, alumina ceramic, zirconia ceramic, fluorescent powder, zinc oxide powder, cobalt oxide powder, Ni-Zn ferrite, Mn-Zn ferrite, etc. Production field of products.
Square design elements are adopted for the equipment shell. High-precision die stamping forming is generous and exquisite, high-end and stable; Machining parts adopt numerical control processing technology, the planetary disc is integrally cast and formed, and the transmission gear adopts special material precision gear to ensure stable and quiet operation of the equipment at high speed; The pressing device of grinding tank is easy to operate, safe and reliable.
Technical Parameters of Tencan Vertical Planetary Ball Mill
| Drive Mode | Gear drive |
| Operation Mode | Two or four grinding tanks can be used for grinding for each batch |
| Max Capacity for Materials | Less than 1/3 of each jar volume Total max capacity: less than 1/3 of total jars volume |
| Feed Size of Materials | Soft and crispy materials ≤ 10mm Other hard materials ≤ 3mm |
| Output Granule | Smallest granularity can be achieved to 0.1μm |
| Rotational Speed Ratio | 1/2 |
| Max.Continuous Operating Time | 72 Hours |
| Materials of Available Mill Jars | 304 or 316l stainless steel, Zirconia, Nylon, Polyurethane, Alumina ceramic (corundum), PTFE, Agate, Tungsten carbide |
Laboratory Planetary Ball Mill Parameters
Table 1: Reference of Planetary Ball Mill with Tank
| Technical Parameter Table(I) of Vertical Planetary Ball Mill | ||||
| Type No. | Specification | Volume of Each Matched Pot | Quantity | Remarks |
| XQM-1 | 1L | 50-250ml | 4pcs | Matched with vacuum mill pots from 50ml to 250ml |
| XQM-2 | 2L | 50-500ml | 4pcs | Matched with vacuum mill pots from 50ml to 250ml |
| XQM-4 | 4L | 250-1000ml | 4pcs | Matched with vacuum mill pots from 50ml to 1000ml |
| XQM-6 | 6L | 1-1.5L | 4pcs | Matched with vacuum mill pots from 50ml to 1000ml |
| XQM-8 | 8L | 1-2L | 4pcs | Matched with vacuum mill pots from 50ml to 1500ml |
| XQM-10 | 10L | 1-2.5L | 4pcs | Matched with vacuum mill pots from 1L to 2L |
| XQM-12 | 12L | 1-3L | 4pcs | Matched with vacuum mill pots from 1L to 2L |
Table 2: Main Parameters of Planetary Ball Mill
| Technical Parameter Table(II) of Vertical Planetary Ball Mill | |||||||
| Model | Power (KW) |
Voltage | Revolution Speed (rpm) |
Rotation Speed (rpm) |
Total Timing (min) |
Alternating Run Time of Forward & Reversal Rotation (min) |
Noise≤db |
| XQM-1 | 0.75 | 220V-50Hz | 35-335 | 70-670 | 19999 | 1999 | 60db |
| XQM-2 | 0.75 | 220V-50Hz | 35-335 | 70-670 | 1-9999 | 1-999 | 60db |
| XQM-4 | 0.75 | 220V-50Hz | 35-335 | 70-670 | 1-9999 | 1-999 | 60db |
| XQM-6 | 0.75 | 220V-50Hz | 35-335 | 70-670 | 1-9999 | 1-999 | 60db |
| XQM-8 | 1.5 | 220V-50Hz | 35-290 | 70-580 | 1-9999 | 1-999 | 60db |
| XQM-10 | 1.5 | 220V-50Hz | 35-290 | 70-580 | 1-9999 | 1-999 | 60db |
| XQM-12 | 1.5 | 220V-50Hz | 35-290 | 70-580 | 1-9999 | 1-999 | 65db |
Table 3: Planetary Ball Mill Size Weight Reference
| Technical Parameter Table(III) of Vertical Planetary Ball Mill | ||||
| Model | Power (KW) |
Speed Control Mode | Net Weight (kg) | Dimension (mm) |
| XQM-1 | 0.75 | Frequency Control | 93 | 750*470*564 |
| XQM-2 | 0.75 | Frequency Control | 93 | 750*470*564 |
| XQM-4 | 0.75 | Frequency Control | 93 | 750*470*564 |
| XQM-6 | 0.75 | Frequency Control | 93 | 750*470*564 |
| XQM-8 | 1.5 | Frequency Control | 150 | 900*600*640 |
| XQM-10 | 1.5 | Frequency Control | 150 | 900*600*640 |
| XQM-12 | 1.5 | Frequency Control | 150 | 900*600*640 |
