Place of Origin:
China
Brand Name:
Hengyang
Certification:
ISO9001
Model Number:
HC-525

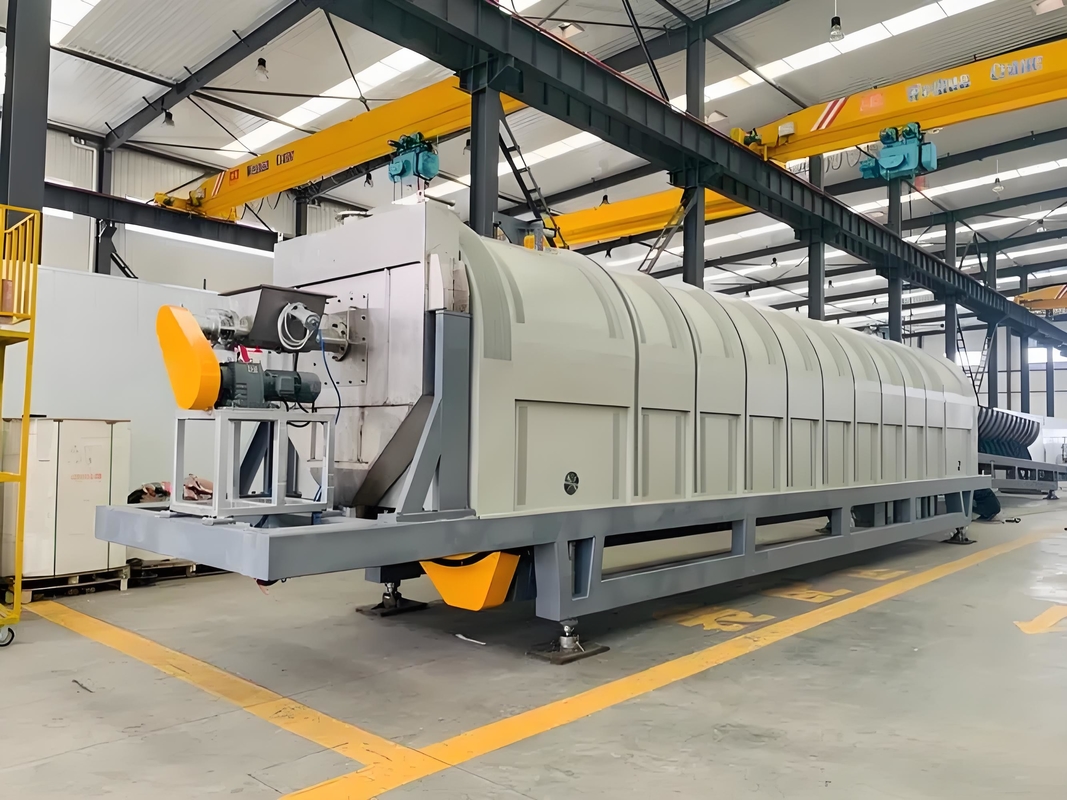

Electromagnetic Rotary Kiln
Most of the traditional rotary kilns are heated by gas or fuel oil and other materials, which causes issues of environmental pollution and high energy consumption. The electric calciner adopts electromagnetic heating induction technology, no smoke, no noise, etc., to avoid these problems. The new electric calciner meets environmental protection requirements and can improve production efficiency and reduce energy consumption.
The electromagnetic rotary kiln primarily consists of a combustion system, control system, cylinder, drive device, feeding system, and discharging system. During operation, materials enter the rotary kiln from the kiln's end of the kiln. The main transmission machine drives the gear device to transmit power through the main reducer to rotate the rotary kiln cylinder. The cylinder has a certain inclination, so the material moves in all directions with the cylinder rotation. After being calcined, the clinker enters the grate cooler for cooling.
Technical Details
|
Model |
NOCT |
Size of rotary kiln |
Rated heating power |
Installation angle |
Productivity |
Power supply |
Dimensions |
Weight |
|
|---|---|---|---|---|---|---|---|---|---|
| HY10 | 1100℃ | φ0.1×4.5m | 36kW | 0.5～5.0° | ～4kg/h | 380VAC 50HZ | ～6.1×1.6×1.4m | ～4T | |
| HY 15 | Φ0.15×4.5m | 42kW | ～8kg/h | ～6.1×1.6×1.4m | ～4T | ||||
| HY 20 | φ0.2×4.5m | 48kW | ～15kg/h | ～6.1×1.6×1.4m | ～4T | ||||
| HY35 | φ0.35×9m | 68kW | 0.5～4.0° | ～120kg/h | ～11×1.8×1.9m | ～8T | |||
| HY40 | φ0.4×9m | 108kW | ～150kg/h | ～11×1.8×1.9m | ～10T | ||||
| HY 50 | φ0.5×9m | 180kW | ～250kg/h | ～11×1.9×2.0m | ～12T | ||||
| HY 62 | φ0.62×10.5m | 260kW | 0.5～3.0° | ～300kg/h | ～12.5×2.2×2.1m | ～15T | |||
| HY 70 | φ0.7×10.5m | 280kW | ～360kg/h | ～12.5×2.3×2.2m | ～18T | ||||
| HY 80 | φ0.8×10.5m | 350kW | ～480kg/h | ～12,5×2.3×2.2m | ～20T | ||||
| HY 94 | φ0.94×12m | 400kW | 0.5～2.5° | ～650kg/h | ～14×2.4×2.3m | ～25T | |||
| HY 100 | φ1.0×12m | 410kW | ～750kg/h | ～14×2.5×2.5m | ～28T | ||||
| HY 110 | φ1.1×12m | 460kW | ～900kg/h | ～14×2.5×2.5m | ～30T | ||||
| HY 125 | φ1.25×12m | 500kW | ～1000kg/h | ～14×2.6×2.6m | ～35T | ||||
| HY 142 | φ1.42×13.5m | 600kW | ～1350kg/h | ～15.5×2.7×2.7m | ～40T | ||||
| HY 150 | φ1.5×13.5m | 750kW | ～1500kg/h | ～15.5×2.8×2.9m | ～45T | ||||
| HY 160 | φ1.6×15m | 900kW | ～1600kg/h | ～17.5×2.9×3.0m | ～50T | ||||
| HY 180 | φ1.8×15m | 1000kW | ～1900kg/h | ～17.5×3.1×3.2m | ～55T | ||||
| HY 200 | φ2.0×15m | 1100kW | ～2200kg/h | ～17.5×3.3×3.4m | ～60T | ||||
| HY 220 | Φ2.2×15m | 1300kW | ～2600kg/h | ～18×3.5×3.6m | ～70T |
